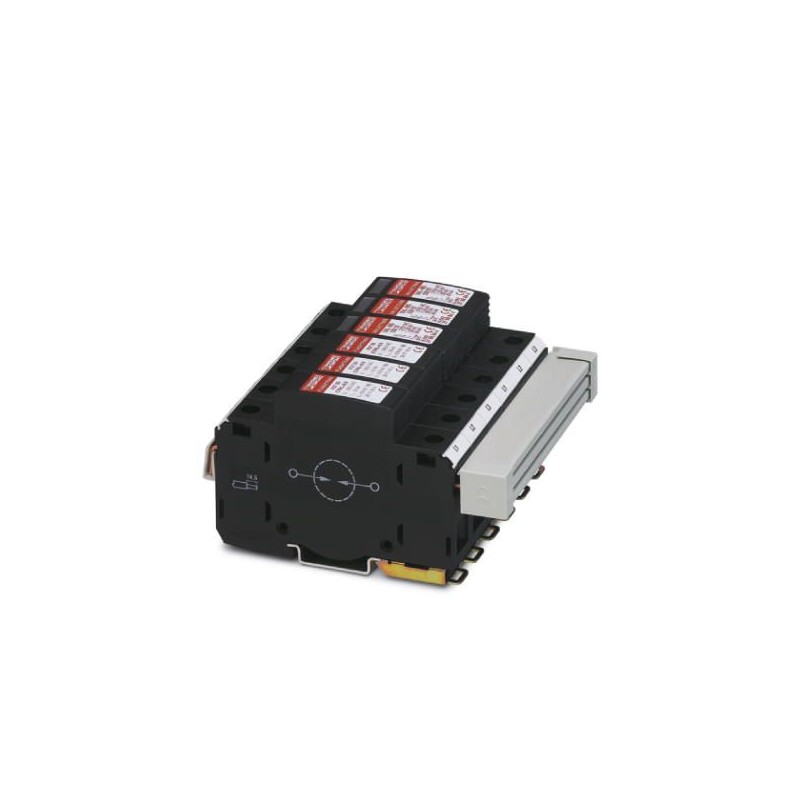

POWERSET BC-385/3/FM 2905722 PHOENIX CONTACT Type 1+2 protective device combination
POWERSET BC-385/3/FM
2905722
PHOENIX_CONTACT
Type 1+2 protective device combination
Combination of lightning and surge arresters according to type 1+2/class I+II, for three-phase power grids, with combined PE and N routing in one cable (L1, L2, L3, PEN). Consisting of 3x FLT 35 CTRL-4.0 and 3x VAL-MS 400/FM, incl. bridges and signage.
Trabtech (TT)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2905722 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626078472 |
| Weight per Piece (excluding packing) | 972.500 g |
| Custom tariff number | 85363030 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 (only when all terminal points are used) |
|---|---|
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Permissible humidity (operation) | 5 % ... 95 % |
General
| IEC test classification | I + II |
|---|---|
| T1 + T2 | |
| EN type | T1 + T2 |
| Mounting type | DIN rail: 35 mm |
| Color | jet black RAL 9005 |
| Type | DIN rail module, two-section, divisible |
| Number of positions | 3 |
| Surge protection fault message | Optical (Type 2 arrester), remote indication contact (Type 2 arrester) |
Connection data
| Connection name | FLT 35 CTRL-4.0 |
|---|---|
| Connection method | Screw connection |
| Screw thread | M5 |
| Tightening torque | 4.5 Nm |
| Stripping length | 14.5 mm |
| Connection name | VAL-MS BE/FM |
| Connection method | Screw connection |
| Screw thread | M5 |
| Tightening torque | 3 Nm (1,5 mm² ... 16 mm²) |
| 4.5 Nm (25 mm² ... 35 mm²) | |
| Stripping length | 16 mm |
Articles in set
Classifications
eCl@ss 4.027140201eCl@ss 4.127140201eCl@ss 5.027140201eCl@ss 5.127140200eCl@ss 6.027130800eCl@ss 7.027130805eCl@ss 8.027130805eCl@ss 9.027130805
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PROTECTION EN .pdf | 27 Mbytes |
|
