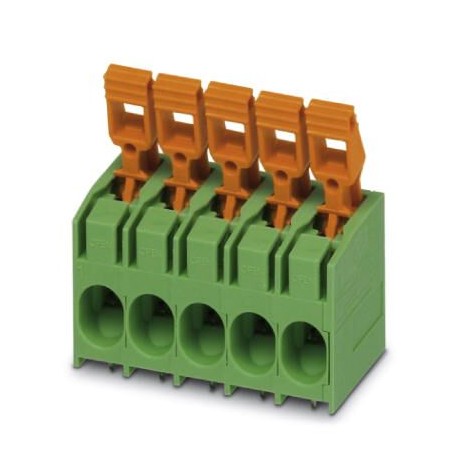

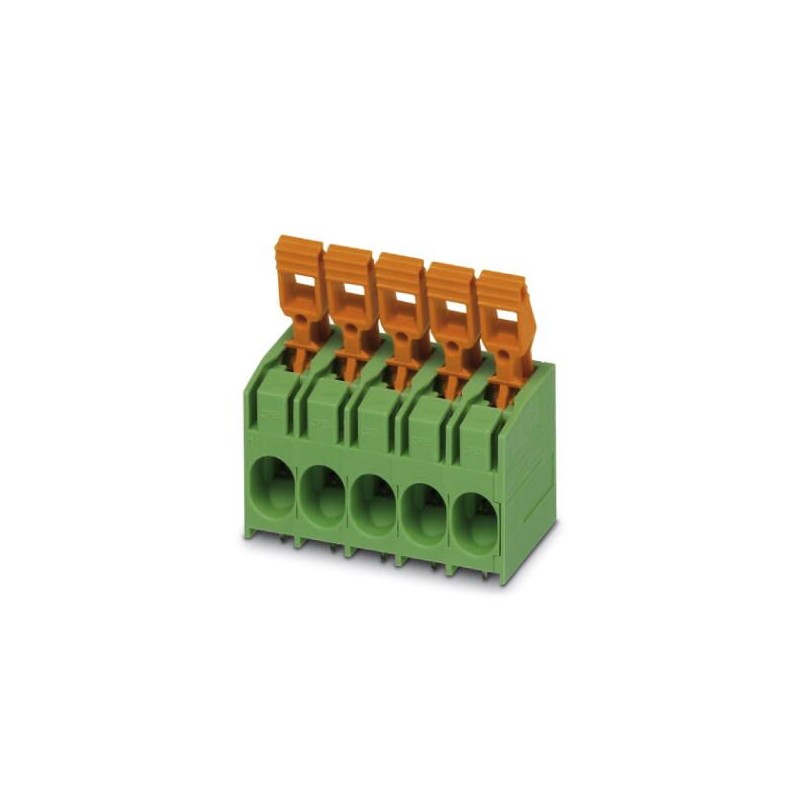

PLH 16/ 5-10 BD:L1-PE 1804178 PHOENIX CONTACT Terminal for printed circuit board, nominal current: 76 A, rat..
PLH 16/ 5-10 BD:L1-PE
1804178
PHOENIX_CONTACT
25
Terminal for printed circuit board, nominal current: 76 A, rated voltage: 400 V, pitch: 10 mm, number of poles: 5, type of connection: Connection by spring loaded push lock, mounting: Soldering by wave direction for connection conductor/pcb: 0 °, color: green
Terminal block for printed circuit board, nominal current: 76 A, dimensioning voltage (III/2): 400 V, nominal cross-section: 16 mm², Number of potentials: 5, Number of rows: 1, Number of poles per row: 5, article family: PLH 16/, pitch: 10 mm, connection type: Spring push lock connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 0°, color: green, Pin arrangement: Double linear pin arrangement, Pin length [P]: 4.5 mm, packaging type: boxed
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Terminal for printed circuit board, nominal current: 76 A, rated voltage: 400 V, pitch: 10 mm, number of poles: 5, type of connection: Connection by spring loaded push lock, mounting: Soldering by wave direction for connection conductor/pcb: 0 °, color: green
Data commercial
| Key order | One million eight hundred four thousand one hundred seventy eight |
|---|---|
| Packing unit | 25 pcs |
| Key selling | AABEAA - |
| Minimum order quantity | 25 pcs |
| EAN | Four trillion forty six billion three hundred fifty six million six hundred seventy thousand eight hundred ninety |
| Unit weight (excluding packaging) | 36,098 g |
| Tariff number tariff | Eighty five million three hundred sixty nine thousand ten |
| Country of origin | SK (Slovakia) |
Dimensions
| Step | 10 mm |
|---|---|
| Average | 40 mm |
| Length of pin [P] | 4.5 mm |
| Separation between rods | 12.5 mm |
| Diameter hole | 1.6 mm |
Overview
| Family of articles | PLH 16/ |
|---|---|
| Transient voltage design (III/3) | 4 kV |
| Transient voltage design (III/2) | 4 kV |
| Transient voltage design (II/2) | 4 kV |
| Tension and sizing (III/3) | 400 V |
| Tension and sizing (III/2) | 400 V |
| Tension and sizing (II/2) | 800 V |
| Nominal current IN | Seventy six |
| Nominal cross section | 16 mm2 |
| Surface pin welding | |
| Length desaislar | 18 mm |
| Number of poles | Five |
Data connection
| Section of conductor AWG min. | Eighteen |
|---|---|
| Section of conductor AWG max. | Four |
| 2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve min. | 0.75 mm2 |
| 2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve max. | 4 mm2 |
Environmental Product Compliance
| China RoHS | Space of time for the intended use: unlimited = FEUP-e |
|---|---|
| No dangerous substances above the thresholds |
Ratings
eCl@ss
| eCl@ss 4.0 | Twenty seven million one hundred forty one thousand one hundred nine |
|---|---|
| eCl@ss 4.1 | Twenty seven million one hundred forty one thousand one hundred nine |
| eCl@ss 5.0 | Twenty seven million one hundred forty one thousand one hundred ninety |
| eCl@ss 5.1 | Twenty seven million two hundred sixty one thousand one hundred |
| eCl@ss 6.0 | Twenty seven million two hundred sixty one thousand one hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand four hundred one |
| eCl@ss 8.0 | Twenty seven million four hundred forty thousand four hundred one |
| eCl@ss 9.0 | Twenty seven million four hundred forty thousand four hundred one |
ETIM
| ETIM 3.0 | EC001121 |
|---|---|
| ETIM 4.0 | EC002637 |
| ETIM 5.0 | EC002643 |
| ETIM 6.0 | EC002643 |
| ETIM 7.0 | EC002643 |
UNSPSC
| UNSPSC 6.01 | Thirty million two hundred eleven thousand eight hundred one |
|---|---|
| UNSPSC 7.0901 | Thirty nine million one hundred twenty one thousand four hundred thirty two |
| UNSPSC 11 | Thirty nine million one hundred twenty one thousand four hundred thirty two |
| UNSPSC 12.01 | Thirty nine million one hundred twenty one thousand four hundred thirty two |
| UNSPSC 13.2 | Thirty nine million one hundred twenty one thousand four hundred thirty two |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
