> PHOENIX CONTACT >PCB Connectors (PCC)>PLH 16/ 3-10-ZF BD:L-PE 1797402 PHOENIX CONTACT Terminal for printed circuit board, nominal current: 76 A, r..
Previous Product Next Product

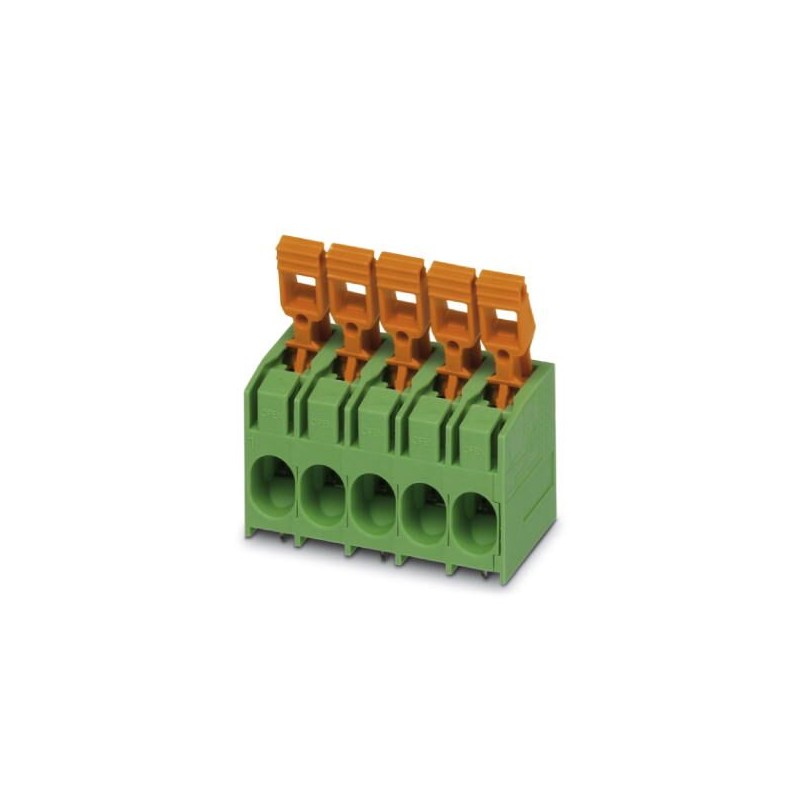

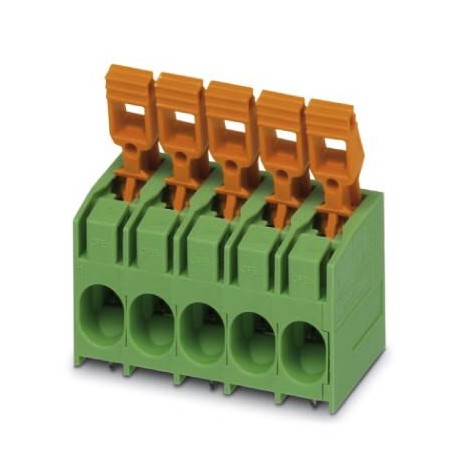

PLH 16/ 3-10-ZF BD:L-PE 1797402 PHOENIX CONTACT Terminal for printed circuit board, nominal current: 76 A, r.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

PLH 16/ 3-10-ZF BD:L-PE 1797402 PHOENIX CONTACT Terminal for printed circuit board, nominal current: 76 A, r..

PLH 16/ 3-10-ZF BD:L-PE

1797402

PHOENIX_CONTACT

25

Terminal for printed circuit board, nominal current: 76 A, rated voltage: 1000 V, pitch: 10 mm, number of poles: 3, type of connection: Connection by spring loaded push lock, mounting: Soldering by wave direction for connection conductor/pcb: 0 °, color: green

PCB terminal block, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm², pitch: 10 mm, number of positions: 3, connection method: Push-lock spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Zigzag pinning M, Solder pin [P]: 4.5 mm

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Key Commercial Data

Orderkey1797402
Packing unit1
GTIN4046356641241
Custom tariff number85369010

Drawings

Diagram

Diagram
Type: PLH 16/...-10-ZF
Tested in accordance with DIN EN 60512-5-2:2003-01
No. of positions: 5
Conductor cross section: 16 mm² (exclusively for solid conductors)

Back to top

Dimensions

Pitch10 mm
Dimension a20 mm
Solder pin [P]4.5 mm
Pin spacing12.5 mm
Hole diameter1.6 mm
Back to top

General

Range of articlesPLH 16/
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)400 V
Rated voltage (III/2)400 V
Rated voltage (II/2)800 V
Nominal current IN76 A
Nominal cross section16 mm²
Solder pin surface
Stripping length18 mm
Number of positions3
Back to top

Connection data

Conductor cross section AWG min.18
Conductor cross section AWG max.4
Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, minimum0.75 mm²
Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum4 mm²
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027141100
eCl@ss 4.127141100
eCl@ss 5.027141100
eCl@ss 5.127261100
eCl@ss 6.027261100
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401
Back to top

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002643
ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643
Back to top

UNSPSC

UNSPSC 6.0130211801
UNSPSC 7.090139121432
UNSPSC 1139121432
UNSPSC 12.0139121432
UNSPSC 13.239121432
UNSPSC 18.039121432
UNSPSC 19.039121432
UNSPSC 20.039121432
UNSPSC 21.039121432
Back to top

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 15 Mbytes
