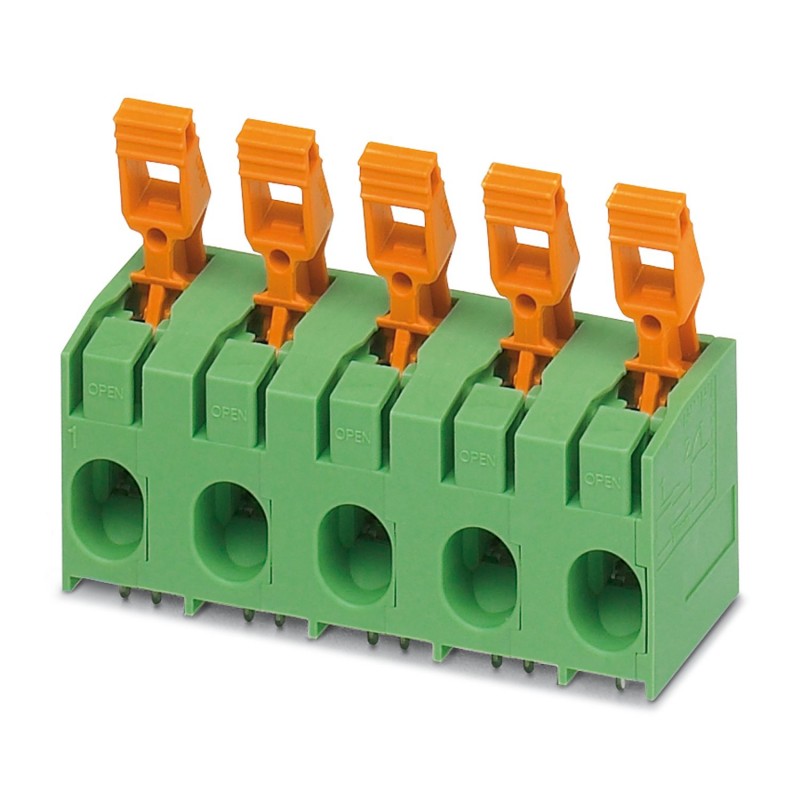

PLH 16/ 2-15 BD:-3L2SO 1037226 PHOENIX CONTACT Terminal for printed circuit board, rated voltage: 1000 V, pi..
PLH 16/ 2-15 BD:-3L2SO
1037226
PHOENIX_CONTACT
25
Terminal for printed circuit board, rated voltage: 1000 V, pitch: 15 mm, number of poles: 2, type of connection: Connection by spring loaded push lock, assembly: wave Soldering, color: green
Terminal block for printed circuit board, nominal current: 76 A, dimensioning voltage (III/2): 1000 V, nominal cross-section: 16 mm², Number of potentials: 2, Number of rows: 1, Number of poles per row: 2, article family: PLH 16/, pitch: 15 mm, connection type: Spring push lock connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 0°, color: green, Pin arrangement: Double linear pin arrangement, Pin length [P]: 4.5 mm, packaging type: boxed
Printed circuit board terminal, rated current: 76 A, rated voltage (III/2): 1000 V, rated cross-section: 16 mm2, number of potentials: 2, number of rows: 1, number of poles per row: 2, article family: PLH 16/, pitch: 15 mm, connection type: Push lock spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 0°, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.5 mm, number of solder pins per potential: 4, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Printed Circuit Board Terminal |
| Product Family | PLH 16/ |
| Product Line | COMBICON Terminals XL |
| Number of poles | 2 |
| Step | 15 mm |
| Number of connections | 2 |
| Number of rows | 1 |
| Number of potentials | 2 |
| Pin Design | Linear Pin Arrangement |
| Number of Solder Pins Per Potential | 4 |
| Data Maintenance Status | |
| Article Review | 00 |
| Nominal Current IN | 76 A |
| Nominal voltage UN | 1000 V |
| Sizing voltage (III/3) | 1000 V |
| Dimensioning transient voltage (III/3) | 8 kV |
| Dimensioning voltage (III/2) | 1000 V |
| Dimensioning Transient Voltage (III/2) | 8 kV |
| Nominal voltage (II/2) | 1000 V |
| Dimensioning transient voltage (II/2) | 8 kV |
| Connection technology | |
| Nominal Section | 16 mm² |
| Connecting Conductors | |
| Connection type | Push lock spring connection |
| Rigid conductor section | 0.75 mm² ... 16 mm² |
| Flexible conductor section | 0.75 mm² ... 25 mm² |
| AWG Conductor Section | 18 ... 4 |
| Flexible conductor section with toe cap, without plastic sleeve | 0.75 mm² ... 16 mm² |
| Flexible conductor section with toe cap, with plastic sleeve | 0.75 mm² ... 10 mm² |
| 2 conductors with the same cross-section, flexible with TWIN toe cap with plastic sleeve | 0.75 mm² ... 4 mm² |
| Peel Length | 18 mm |
| Type of mounting | Wave soldering |
| Pin Design | Linear Pin Arrangement |
| Material data - contact | |
| Observation | WEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu Alloy |
| Surface Characteristics | Galvanically tinned |
| Metal surface of the terminal point (top layer) | Tin (10 - 16 μm Sn) |
| Metal surface weld area (top layer) | Tin (10 - 16 μm Sn) |
| Material data - housing | |
| Color () | () |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Flammability number of GWFI incandescent filaments according to EN 60695-2-12 | 850 |
| Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13 | 775 |
| Ball hardness test temperature according to EN 60695-10-2 | 125 °C |
| Material data: drive element | |
| Insulating material | PBT |
| Insulating material group | IIIa |
| CTI according to IEC 60112 | 275 |
| Flammability class according to UL 94 | V0 |
| Dimension Scheme |  |
| Step | 15 mm |
| Width [w] | 26.4 mm |
| Height [h] | 29 mm |
| Length [l] | 30.5 mm |
| Overall Height | 33.5 mm |
| Weld Pin Length [P] | 4.5 mm |
| Temple Dimensions | 1.2 x 1.2 mm |
| Printed circuit board design | |
| Spacing between rods | 12.5 mm |
| Hole diameter | 1.6 mm |
| Checking for damage to conductors and loosening | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Approved Test |
| Repeated connection and disconnection | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Approved Test |
| Tensile Test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Conductor Section/Conductor Type/Tensile Force Nominal Value/Actual Value | 0.75 mm² / rigid / > 30 N |
| 0.75 mm² / flexible / > 30 N | |
| 16 mm² / multi-core / > 100 N | |
| 16 mm² / flexible / > 100 N | |
| 10 mm² / flexible with toe cap / > 90 N | |
| Heating Verification | |
| Test Specification | DIN EN 60947-7-4 (VDE 0611-7-4):2014-08 |
| Heating test requirement | The sum of the ambient temperature and the heating of the PCB connection terminal cannot exceed the upper limit temperature. |
| Short-term permissible current | |
| Test Specification | DIN EN 60947-7-4 (VDE 0611-7-4):2014-08 |
| Insulation resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Creepage Lines & Air Isolation Distances | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulating material group | I |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Sizing Insulation Voltage (III/3) | 1000 V |
| Nominal transient voltage (III/3) | 8 kV |
| minimum value of air insulation distance - non-homogeneous field (III/3) | 8 mm |
| Minimum creepage line value (III/3) | 12.5 mm |
| Sizing Insulation Voltage (III/2) | 1000 V |
| Nominal transient voltage (III/2) | 8 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2) | 8 mm |
| Minimum creepage line value (III/2) | 8 mm |
| Sizing Insulation Voltage (II/2) | 1000 V |
| Nominal transient voltage (II/2) | 8 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2) | 5.5 mm |
| Minimum creepage line value (II/2) | 5.5 mm |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test Directions | X, Y, and Z axes |
| Essay filam. incandescent | |
| Test Specification | DIN EN 60695-2-10 (VDE 0471-2-10):2001-11 |
| Temperature | 850 °C |
| Performance Time | 5 s |
| Aging | |
| Test Specification | DIN EN 60947-7-4 (VDE 0611-7-4):2014-08 |
| Environmental conditions | |
| Ambient Temperature (Service) | -40 °C ... 100 °C (Based on current/derating load capacity curve) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
| Type of packaging | Boxed Packaging |
| Outer packing type | Cardboard box with cardboard interlayers |
