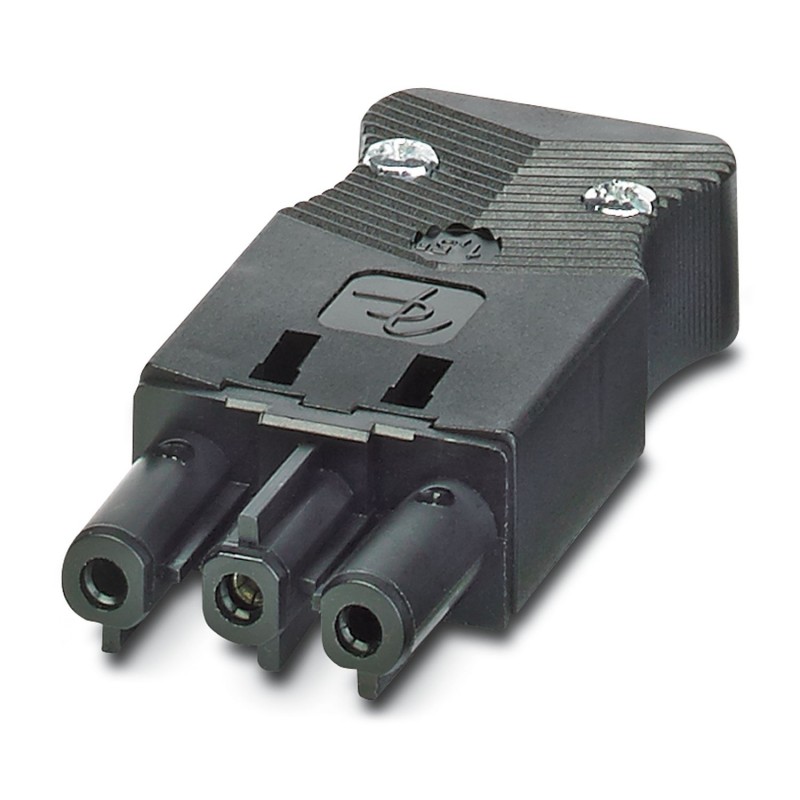

PLD E 608-CO-FS 2702309 PHOENIX CONTACT Connector
PLD E 608-CO-FS
2702309
PHOENIX_CONTACT
5
Connector
Female connector for power and series connection, black, 3 poles
Socket for power supply and series connection, black, 3-pos.
Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Installation connector |
| Type | Installation coupler |
| Number of positions | 3 |
| Connection profile | 2+PE |
| Number of connections | 3 |
| Insulation characteristics | |
| Degree of pollution | 2 |
| Rated surge voltage (II/2) | 4 kV |
| Rated current | 16 A (in accordance with EN 61984 at 70°C) |
| Rated voltage (I/2) | 250 V |
| Connection technology | |
| Connection method | Screw connection |
| Frequency of connections between conductors of the same cross section | 5 (in accordance with EN 61984) |
| Conductor connection | |
| Conductor cross section flexibel | 0.5 mm² ... 2.5 mm² |
| Conductor cross section solid | 0.5 mm² ... 2.5 mm² |
| Connection cross section AWG | 20 ... 14 |
| Tightening torque Contact carrier | 0.3 Nm |
| Width | 28 mm |
| Height | 12.6 mm |
| Length | 68.2 mm |
| Flammability rating according to UL 94 | V2 |
| Housing material | Polyamide (PA 6.6) |
| Housing surface material | uncoated |
| Contact material | Brass |
| Contact surface material | surface-protected |
| External cable diameter | 7.5 mm ... 8.5 mm (3x 1.5 mm²) |
| 9.5 mm ... 10.5 mm (3x 2.5 mm²) | |
| Stripping length of the individual wire | 7 mm |
| Mechanical data | |
| Insertion/withdrawal cycles | 10 (in accordance with EN 61984) |
| Ambient conditions | |
| Degree of protection (when plugged in) | IP40 (plugged in) |
| Degree of protection | IP20 |
| IP40 (plugged in) | |
| Ambient temperature (operation) | 70 °C |
| Ambient temperature (storage/transport) | -30 °C ... 70 °C |
| Mounting type | Plug-in mounting |
