PLD E 400-DS-3,0/0,6 1318672 PHOENIX CONTACT Door position switch with 3 m cable with free end and with 0.6 ..
PLD E 400-DS-3,0/0,6
1318672
PHOENIX_CONTACT

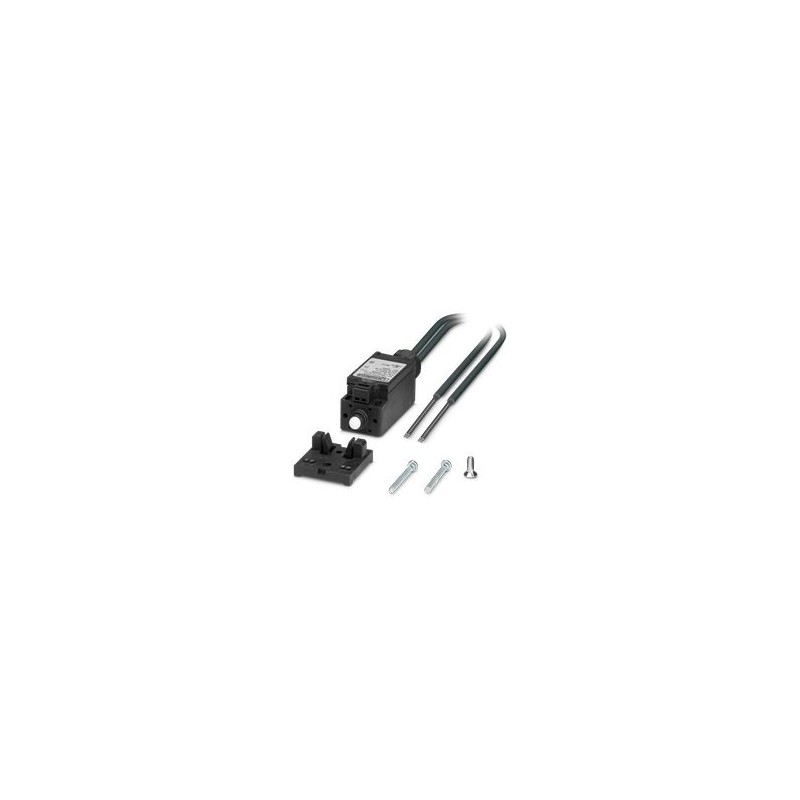

Door position switch with 3 m cable with free end and with 0.6 m cable with free end, including mounting accessories
Door position switch with 3 m cable with open cable end and 0.6 m cable with open cable end, including mounting accessories
Accessories for lighting > Mechanical accessories/spare parts for luminaires
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product type | Door position switch |
| Insulation characteristics | |
| Protection class | II (protective insulation) |
| Insulation characteristics: Device class (built-in switch) | |
| Overvoltage category | II (EN 60947-1) |
| Pollution degree | 3 (Built-in switch) |
| Short-circuit current | 400 A (conditional rated short-circuit current) |
| Protective circuit | Short-circuit protection; Fuse, 4 A gG |
| Device class (built-in switch) | |
| Rated surge voltage | 4 kV |
| Dimensional drawing |  |
| Width | 31 mm |
| Height | 30.5 mm |
| Depth | 98.3 mm |
| Flammability rating according to UL 94 | V0 |
| Housing material | Thermoplastic, fiberglass-reinforced |
| Ambient conditions | |
| Degree of protection | IP67 in acc. with IEC 60529 (only applies with closed cover) |
| Ambient temperature (operation) | -30 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Device class (built-in switch) | |
| Standards/regulations | IEC 60947-1 |
| Standard designation | Category E (MC3+CC2+SC1) |
| Mounting position | any |
| Feature Name | Feature Value |
|---|---|
| Colour (EF000007) | Black |
| Material (EF002169) | Other |
| Length (EF001438) | 98.3 mm |
| Width (EF000008) | 31 mm |
| Height (EF000040) | 30.5 mm |
