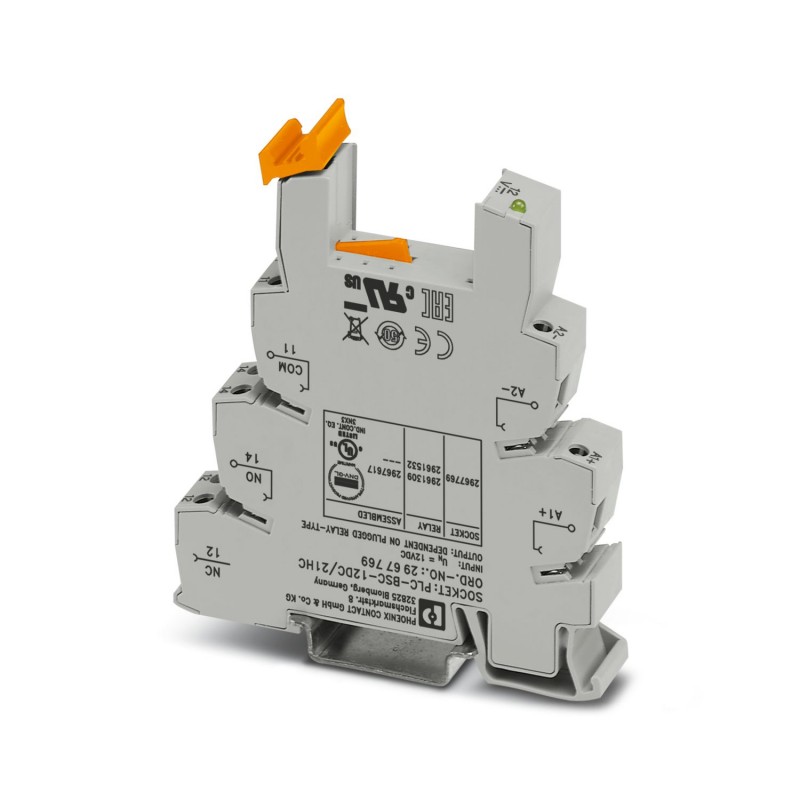

PLC-BSC- 12DC/21HC
2967769
PHOENIX_CONTACT
1
Relay base
INTERFACE Components (IF)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 2967769 |
---|---|
Packing unit | 10 pc |
Note | Made to Order (non-returnable) |
GTIN | 4017918174248 |
Weight per Piece (excluding packing) | 57.650 g |
Custom tariff number | 85366990 |
Country of origin | DE (Germany) |
Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
---|
Ambient temperature (operation) | -40 °C ... 60 °C |
---|---|
Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Nominal input voltage UN | 12 V DC |
---|---|
Status display | LED |
Protective circuit | Damping diode, polarity protection diode |
Damping diode |
Connection name | Input side |
---|---|
Connection method | Screw connection |
Stripping length | 8 mm |
Screw thread | M3 |
Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
0.2 mm² ... 2.5 mm² () | |
2x 0.5 mm² ... 1.5 mm² () | |
Conductor cross section AWG | 26 ... 14 |
Connection name | Output side |
---|---|
Connection method | Screw connection |
Stripping length | 8 mm |
Screw thread | M3 |
Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
0.2 mm² ... 2.5 mm² () | |
2x 0.5 mm² ... 1.5 mm² () | |
Conductor cross section AWG | 26 ... 14 |
Protective circuit | Damping diode, polarity protection diode |
---|---|
Color | green |
Operating mode | 100% operating factor |
Mounting position | any |
Assembly instructions | In rows with zero spacing |
Connection in acc. with standard | CUL |
---|---|
Flammability rating according to UL 94 | V0 |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 27 Mbytes |
