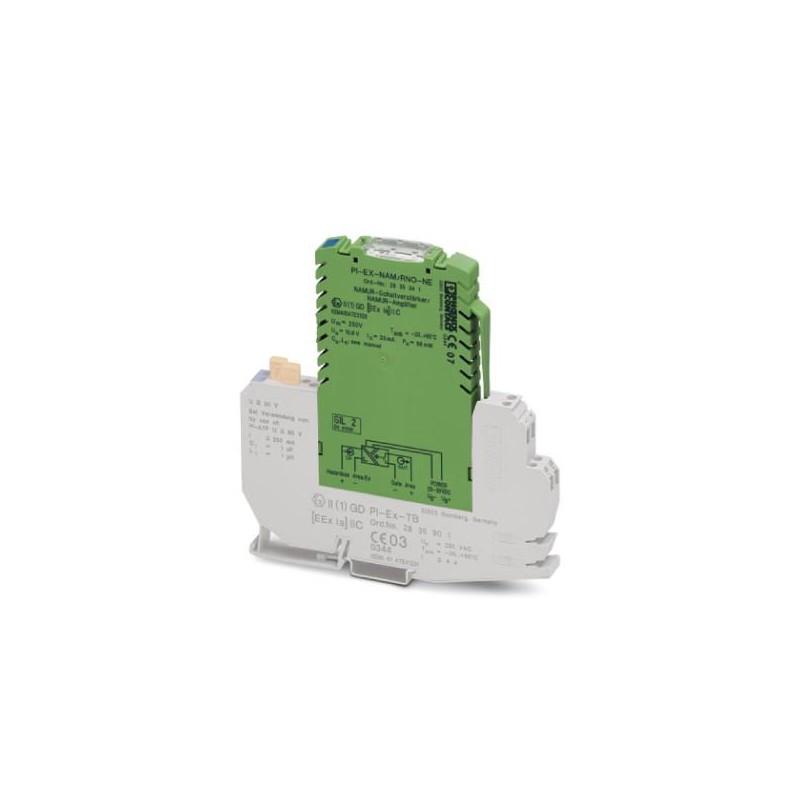

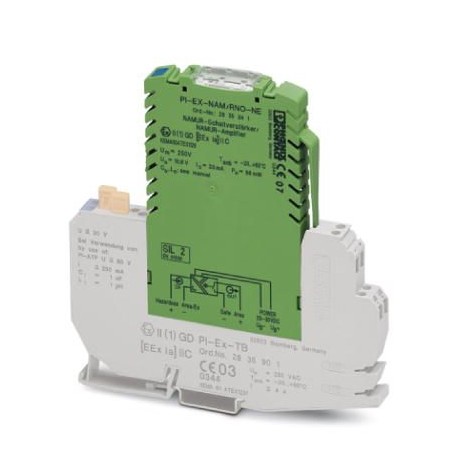

PI-EX-NAM/RNC-NE 2835367 PHOENIX CONTACT Signal isolator
PI-EX-NAM/RNC-NE
2835367
PHOENIX_CONTACT
Signal isolator
Ex i binary input: NAMUR separation amplifier. For the service of proximity detectors and switches in the Ex zone. Binary signals are transmitted to the safe zone. Relay output (closed contact), cable fault detection. 3-way galvanic separation.
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2835367 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 338 (IF-2002) |
| GTIN | 4017918178475 |
| Weight per Piece (excluding packing) | 77.710 g |
| Custom tariff number | 85437090 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 60 °C (vertical assembly) |
|---|---|
| -20 °C ... 55 °C (horizontal assembly) | |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Permissible humidity (operation) | 5 % ... 95 % (relative humidity, non-condensing) |
| Noise immunity | EN 61326:1997 |
Input data
| Control current circuit | Intrinsically safe |
|---|---|
| Available input sources | NAMUR proximity sensors |
| Floating switch contacts | |
| Switch contacts with resistance circuit | |
| Non-load voltage | 8.2 V DC ±10 % |
| Switching points (attenuated) | < 1.2 mA (attenuated in acc. with EN 60947-5-6) |
| Switching points (unattenuated) | > 2.1 mA (non-attenuated in acc. with EN 60947-5-6) |
| Line error detection | Activated /deactivated via DIP switch |
Output data
| Switching output | Relay output |
|---|---|
| Configurable/programmable | Switching behavior can be inverted via DIP switch |
| Contact type | N/C contact |
| Contact material | AgSnO, hard gold-plated |
| Limiting continuous current | 1 A (30 V DC) |
| 0.5 A (125 V AC) | |
| Min. contact current | 1 mA |
| Mechanical service life | 107cycles |
| Service life, electrical | 2x 105cycles (at full load) |
Power supply
| Supply voltage range | 20 V DC ... 30 V DC |
|---|---|
| Max. current consumption | max. 40 mA |
| Power dissipation | max. 0.8 W (24 V) |
General
| No. of channels | 1 |
|---|---|
| Test voltage input/output | 1.5 kV AC |
| Insulation voltage input/output/supply | 0.25 kVrms |
| Status display | Green LED (supply voltage) |
| Yellow LED (status display) | |
| Red LED (line errors) | |
| Flammability rating according to UL 94 | V0 |
| Electromagnetic compatibility | Conformance with EMC directive 89/336/EC |
| Interference emission | EN 61326:1997 |
| Housing material | Polyamide PA non-reinforced |
| Color | green |
Safety data
| Max. output voltage Uo | 10.6 V |
|---|---|
| Max. output current Io | 33 mA |
| Max. output power Po | 86 mW |
| Group | IIA |
| Max. external inductivity Lo | 230 mH |
| Max. external capacity Co | 72.9 µF |
| Group | IIB |
| Max. external inductivity Lo | 110 mH |
| Max. external capacity Co | 16.2 µF |
| Group | IIC |
| Max. external inductivity Lo | 30 mH |
| Max. external capacity Co | 2.3 µF |
| EEX specification | [EEx ia] IIC, EX II (1)GD, KEMA 00 ATEX 1126 |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC directive 89/336/EC |
|---|---|
| Noise emission | EN 61326:1997 |
| Noise immunity | EN 61326:1997 |
| Flammability rating according to UL 94 | V0 |
| Group | IIA |
| IIB | |
| IIC | |
| EEX specification | [EEx ia] IIC, EX II (1)GD, KEMA 00 ATEX 1126 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027210121eCl@ss 4.127210121eCl@ss 5.027210121eCl@ss 5.127210100eCl@ss 6.027210100eCl@ss 7.027210121eCl@ss 8.027210121eCl@ss 9.027210121
