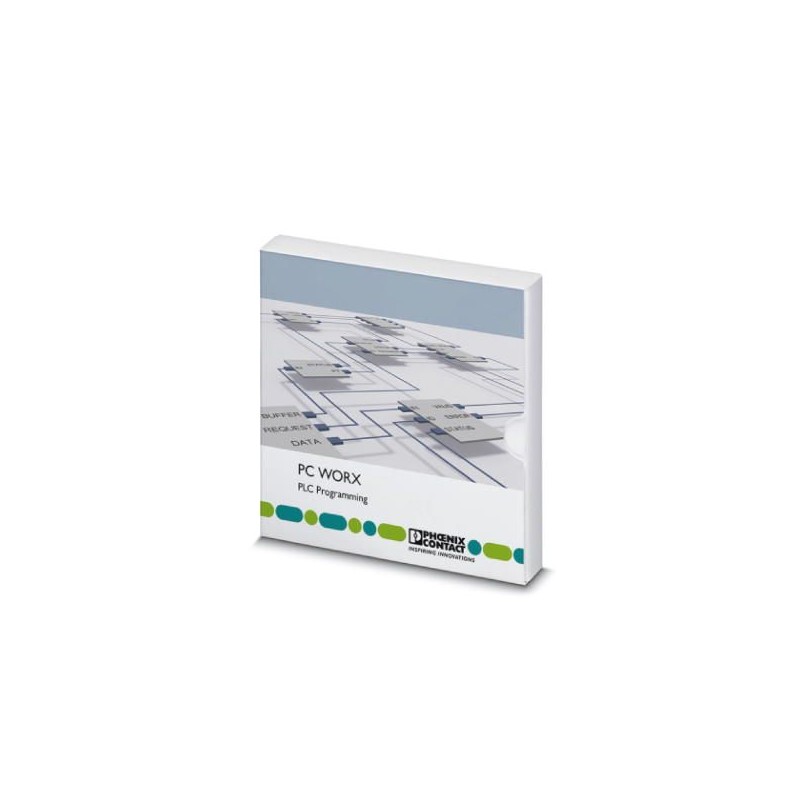

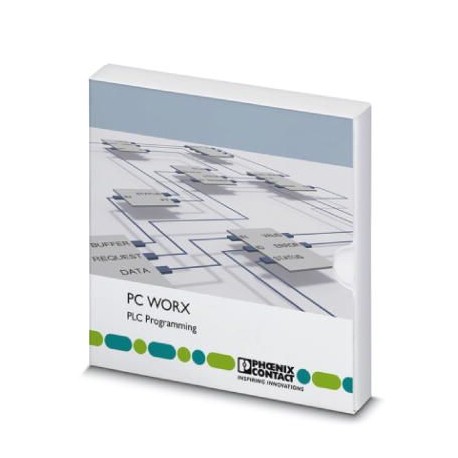

PC WORX PRO LIC TL180 2400419 PHOENIX CONTACT Software
PC WORX PRO LIC TL180
2400419
PHOENIX_CONTACT
Software
Software Package for PC-Based Automation Solutions (temporarily limited to 180 days), PC WORX PRO license, includes all 5 IEC languages, with MSFC compiler, input and output data max. 128 Kbyte, version-specific license key
Automation Software (AS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2400419 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626041360 |
| Weight per Piece (excluding packing) | 81.000 g |
| Custom tariff number | 85234910 |
| Country of origin | DE (Germany) |
Functions
| Basic functions | Planning an automation system, parameterizing the INTERBUS and PROFINET devices, operating INTERBUS and PROFINET, programming an automation system in acc. with IEC 61131-3. communication in acc. with IEC 61131-5 |
|---|---|
| Symbolic flowchart (SFC) | |
| Instruction list (IL) | |
| Structured text (ST) | |
| Ladder diagram (LD) | |
| Network configuration (functionality of Config+) | |
| Network diagnostics (functionality of Diag+) | |
| Expanded functionality | Unlimited number of input/output data |
| Machine Sequential Function Chart (MSFC) | |
| Fixed Format Ladder Editor (FFLD) | |
| Number of I/O nodes | 128 I/O kbytes |
| Configuration | INTERBUS |
| PROFINET | |
| Modbus/TCP | |
| Diagnostics | INTERBUS, PROFINET |
| Control system | (Target system) Embedded and PC-based controllers |
Hardware requirements
| Hard disk | min. 2 GByte |
|---|---|
| RAM | min. 1 GByte (2 GB for Windows Vista and Windows 7) |
| CPU | min. Intel®Pentium®4 / Celeron®1,6 GHz |
| Interfaces | Serial COM port, Ethernet (PCI if there is an INTERBUS master card in the PC) |
| Optical drive | DVD-ROM |
| Monitor resolution | XGA (1024 x 768) |
| Operating equipment | Keyboard, mouse |
Software requirements
| Operating system | Windows®7 Professional SP1 (32-Bit/64-Bit) |
|---|---|
| Windows®7 Ultimate SP1 (32-Bit/64-Bit) | |
| Windows®8.1 Professional (32-Bit/64-Bit) | |
| Windows®8.1 Enterprise (32-Bit/64-Bit) | |
| Windows®10 (32-bit/64-bit), as of Build 1511 | |
| Languages supported | German, English, French, Italian, Spanish, Chinese |
| Supported browsers | Internet Explorer Version 8 or later |
Classifications
eCl@ss 4.027248002eCl@ss 4.127248002eCl@ss 5.027242501eCl@ss 5.127242500eCl@ss 6.027242500eCl@ss 7.027242501eCl@ss 8.027242501eCl@ss 9.027242501
| Feature Name | Feature Value |
|---|---|
| With editor for programming language IL (Instruction List) (EF003035) | Yes |
| With editor for programming language LD (Ladder Diagram) (EF003036) | Yes |
| With editor for programming language FBD (Function Block Diagram) (EF003037) | Yes |
| With editor for programming language ST (structured text) (EF003038) | Yes |
| With editor for programming language SFC (Sequential Function Chart) (EF003039) | Yes |
| With editor for programming language Flowchart (EF006647) | No |
| With editor for manufacturer specific programming language (EF003040) | Yes |
| Integrated diagnosis function (EF003063) | Yes |
| Integrated configuration function (EF003064) | Yes |
| Integrated evaluation function (EF003065) | Yes |
| Integrated application configuration function (EF003066) | No |
| Integrated data detection function (EF003067) | Yes |
| Integrated communication function (EF003068) | Yes |
| Technology function integrated (EF003069) | No |
| Put into operation function integrated (EF003070) | No |
| Simulation function integrated (EF003072) | No |
| Integrated motion function (EF003073) | No |
| Integrated analysis function (EF003074) | Yes |
| Integrated position function (EF003075) | No |
| Maintenance function integrated (EF003328) | Yes |
| Suitable for safety functions (EF001597) | Yes |
