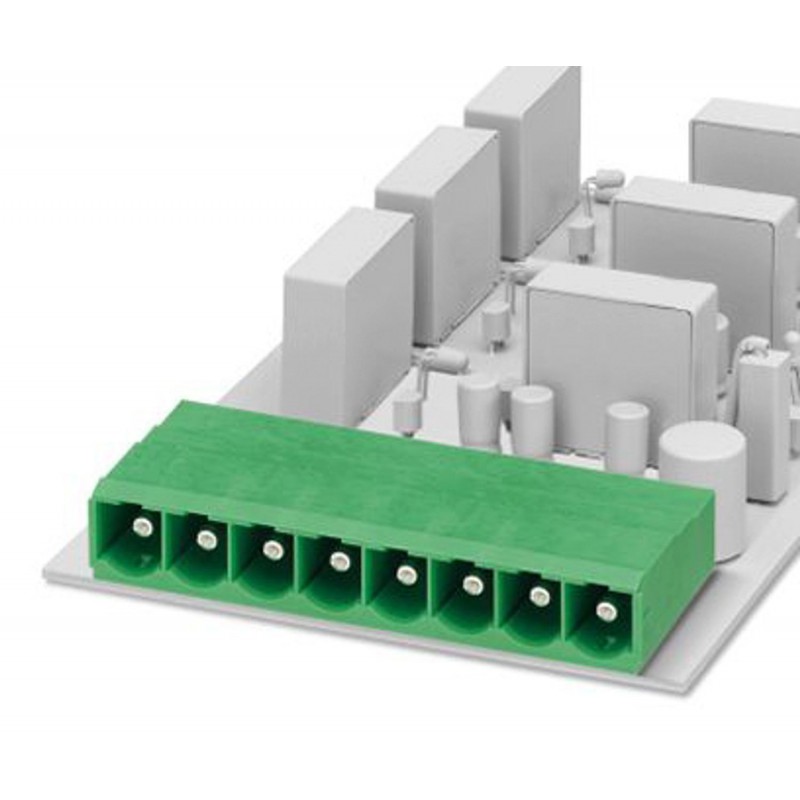

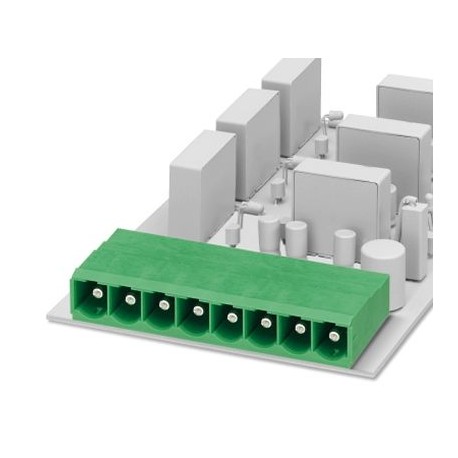

PC 6-16/ 3-G-10,16 BUGY 1967951 PHOENIX CONTACT Feed-through header
PC 6-16/ 3-G-10,16 BUGY
1967951
PHOENIX_CONTACT
50
Feed-through header
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1967951 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918920937 |
| Weight per Piece (excluding packing) | 11.310 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
Dimensions
| Length [ l ] | 32 mm |
|---|---|
| Width | 33.52 mm |
| Pitch | 10.16 mm |
| Dimension a | 20.32 mm |
| Width [ w ] | 33.52 mm |
| Height [ h ] | 17.7 mm |
| Height | 13.7 mm |
| Length of the solder pin | 4 mm |
| Pin dimensions | 1 x 1.2 mm |
| Length | 32 mm |
General
| Range of articles | PC 6-16/..-G |
|---|---|
| Insulating material group | I |
| Rated surge voltage (III/3) | 8 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (II/2) | 6 kV |
| Rated voltage (III/3) | 630 V |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (II/2) | 1000 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 76 A (41 A in combination with PC 6 plug) |
| Maximum load current | 76 A |
| Color | blue grey |
| Number of positions | 3 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440402eCl@ss 8.027440402eCl@ss 9.027440402
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
