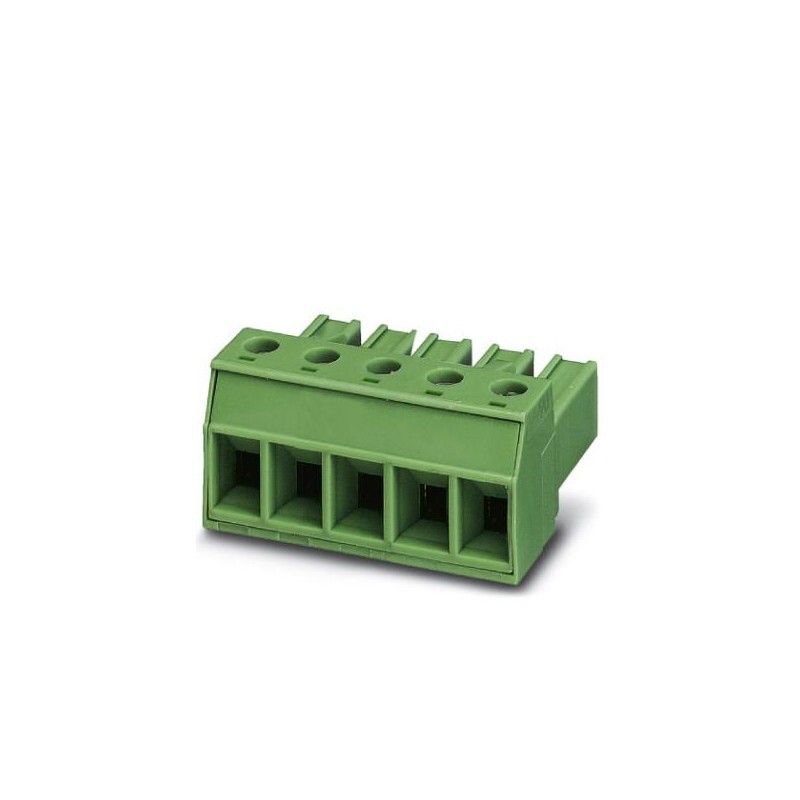

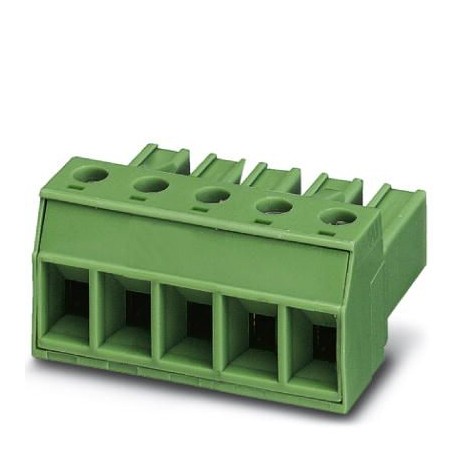

PC 4/ 4-ST-7,62 BD:1-4 1875894 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

PC 4/ 4-ST-7,62 BD:1-4 1875894 PHOENIX CONTACT Printed-circuit board connector

PC 4/ 4-ST-7,62 BD:1-4

1875894

PHOENIX_CONTACT

50

Available Ship on today

New orders for this item will be processed from April 13

Printed-circuit board connector

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Quantity Price
50+$4.68
100+$4.32
150+$4.17
200+$4.09
250+$4.05
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Key Commercial Data

Orderkey 1875894
Packing unit 50 pc
GTIN4017918267827
Weight per Piece (excluding packing)16.670 g
Custom tariff number85366990
Country of originDE (Germany)

Dimensions

Length [ l ]30.7 mm
Width [ w ]30.46 mm
Height [ h ]18.1 mm
Pitch7.62 mm
Dimension a22.86 mm

General

Range of articlesPC 4/..-ST
Number of positions4
Connection methodScrew connection with tension sleeve
Rated voltage (III/3)400 V
Connection in acc. with standardEN-VDE
Nominal current IN20 A
Nominal cross section4 mm²

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.4 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.4 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.4 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.10
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.2.5 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.1.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.2.5 mm²
Minimum AWG according to UL/CUL30
Maximum AWG according to UL/CUL10

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
