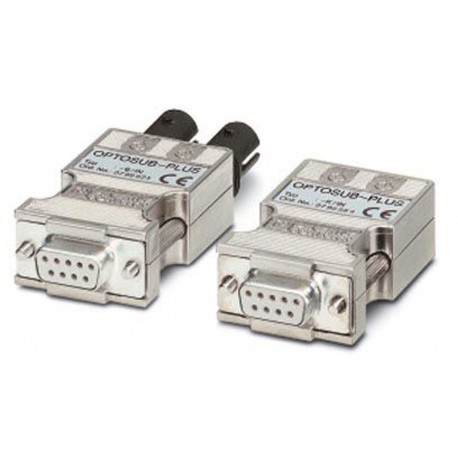

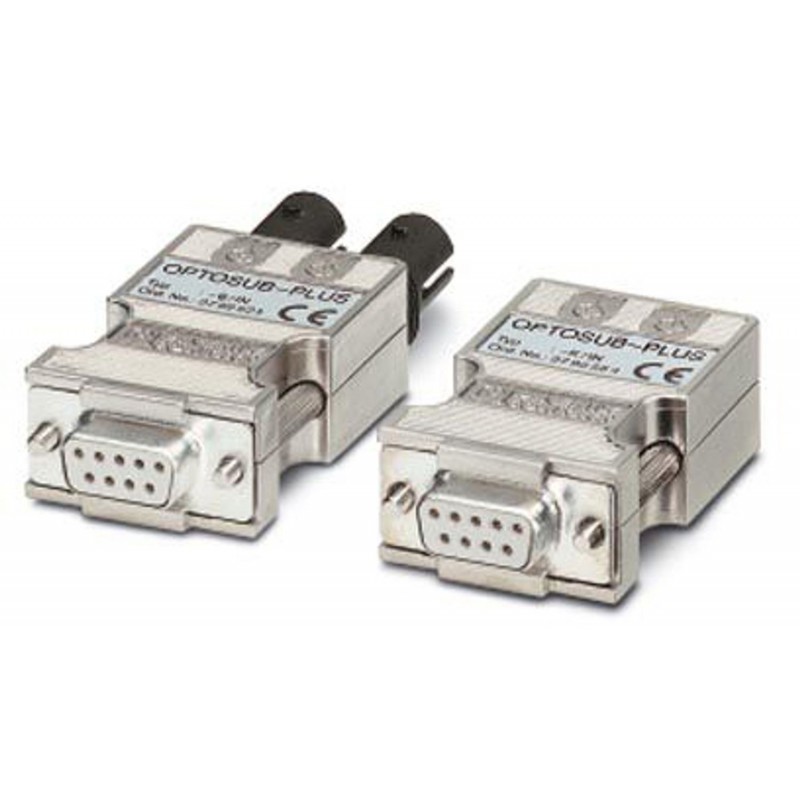

OPTOSUB-PLUS-K/OUT 2799610 PHOENIX CONTACT FO converters
OPTOSUB-PLUS-K/OUT
2799610
PHOENIX_CONTACT
FO converters
Safety
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2799610 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 381 (IF-2005) |
| GTIN | 4017918129705 |
| Weight per Piece (excluding packing) | 30.680 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
General
| Transmission channels | 2 (1/1), RxD, TxD, full duplex |
|---|---|
| Net weight | 30.68 g |
| Housing material | ABS, metal-plated |
Power supply
| Nominal supply voltage | none, supply from data channel |
|---|---|
| Typical current consumption | typ. 30 mA |
Serial interface
| Interface 1 | RS-485 interface INTERBUS in acc. with DIN 50254 |
|---|---|
| Connection method | D-SUB 9 plug |
| Transmission medium | Copper |
| Serial transmission speed | 500 kbps |
Optical interface FO
| Transmission power | 354.81 µW (-4.5 dBm at 980/1000 µm) |
|---|---|
| 11.22 µW (-19.5 dBm at 200/230 µm) | |
| Minimum receiver sensitivity | -26 dBm |
| Wavelength | 660 nm |
| Transmission length incl. 3 dB system reserve | 50 m (With F-P 980/1000 230 dB/km with quick mounting connector) |
| 300 m (with F-S 200/230 10 dB/km) | |
| 100 m (F-S 200/230 10 dB/km, OPTOSUB/FO bus terminal module) | |
| Transmission medium | Polymer fiber |
| PCF fiber | |
| Connection method | F-SMA |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027230207eCl@ss 4.127230207eCl@ss 5.027230207eCl@ss 5.127230200eCl@ss 6.019179200eCl@ss 7.019179290eCl@ss 8.019179290eCl@ss 9.019170114
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
