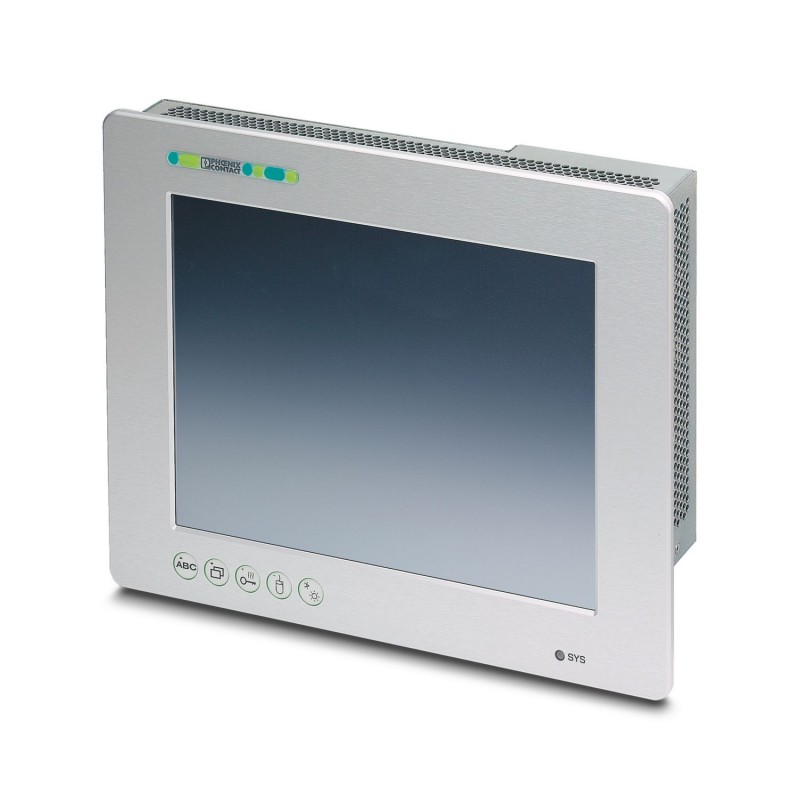

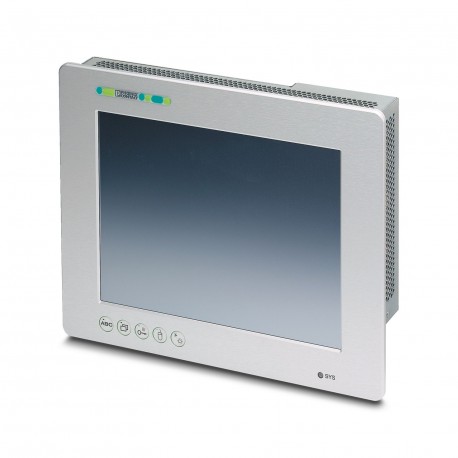

OPC 6015 W7 01 2403420 PHOENIX CONTACT Panel PC with 38.1 cm/15" TFT-display (analog resistive (polyester)),..
OPC 6015 W7 01
2403420
PHOENIX_CONTACT
Panel PC with 38.1 cm/15" TFT-display (analog resistive (polyester)), 1024 x 768 Pixel(s) (XGA), Intel
Panel PC with 38.1 cm/15" TFT-display (analog resistive (polyester)), 1024 x 768 pixel(s) (XGA), Intel® Atom™ N2600 1.6 GHz, 1x COM (RS-232), 4x USB 2.0 (1x USB on the front with IP65 cover (can be deactivated via software)), 2x Ethernet (10/100/1000 Mbps), RJ45, Windows 7 Ultimate 32 bit (multi-language) and user software: without user software. (bus system:)
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Product type | Panel PC |
| Computer data | |
| Processor | Intel®Atom™ N2600 1.6 GHz |
| Operating system | Windows®7 Ultimate (32-bit), Multi-language |
| Cooling | passive |
| RAM | 4 GB DDR3 |
| Data storage system | mSATA SSD (MLC) WT, 128 GB |
| Slots | without slots |
| Audio | integrated speakers |
| System architecture | ads-X² Cedarview-Atom |
| Keys | 5 (additional keys (software keyboard, change task Alt+Tab, right mouse button, brightness, user-specific function)) |
| Display | |
| Display type | 38.1 cm/15" TFT |
| Screen resolution | 1024 x 768 Pixel(s) (XGA) |
| Touch technology | analog resistive (polyester) |
| Display lighting type | LED |
| MTBF | > 50000 h |
| User software | without user software |
| Supply | |
| Power supply unit | 24 V DC (10 ... 36 V DC) |
| Interfaces | 1x COM (RS-232) |
| 4x USB 2.0 (1x USB on the front with IP65 cover (can be deactivated via software)) | |
| Network | 2x Ethernet (10/100/1000 Mbps), RJ45 |
| External dimensions | |
| Width / Height / Depth | 390 mm / 312 mm / 65 mm |
| Material front plate | Aluminum (natural anodized) |
| Ambient conditions | |
| Degree of protection | IP65 (front), IP20 (back) |
| Ambient temperature (storage/transport) | -30 °C ... 75 °C |
| Permissible humidity (operation) | 10 % ... 85 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 85 % (non-condensing) |
| Shock | DIN EN 60068-2-27 |
| Vibration (operation) | DIN EN 60068-2-6 |
