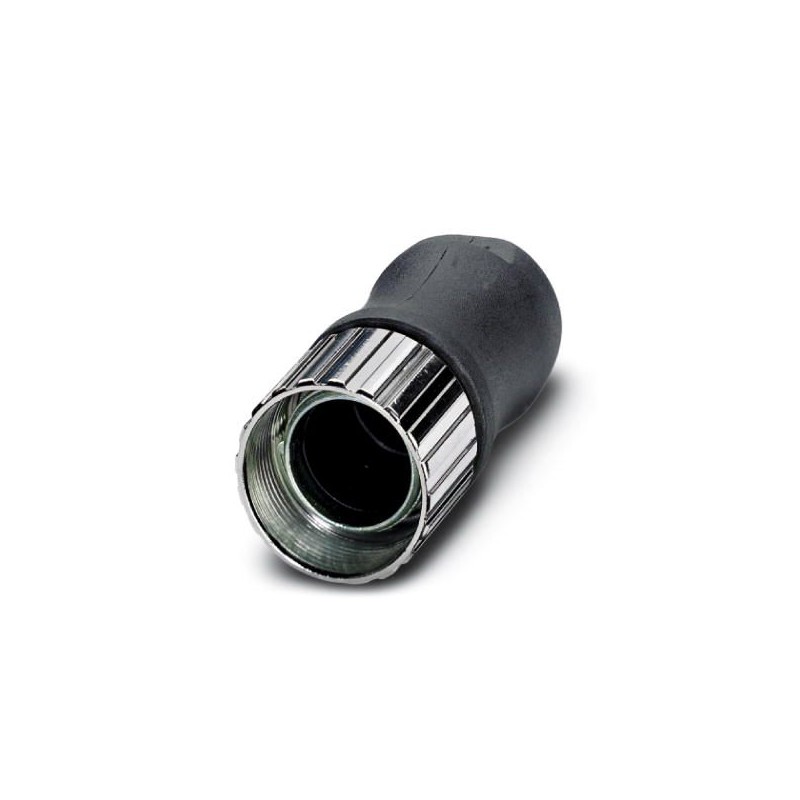

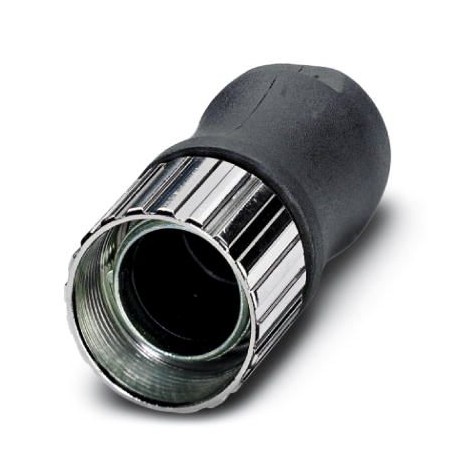

NC-0000000KSFZ 1592030 PHOENIX CONTACT Sleeve housing for cable connector
NC-0000000KSFZ
1592030
PHOENIX_CONTACT
20
Sleeve housing for cable connector
Connectors > Housing for rectangular connectors
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1592030 |
|---|---|
| Packing unit | 20 pc |
| Minimum order quantity | 20 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356190244 |
| Weight per Piece (excluding packing) | 40.590 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
General
| Note | Order information: Order contact inserts and cable clamping/shield accessories separately |
|---|---|
| Type of locking | Screw locking |
| Contact connection method | Crimp connection |
| Type of contacts | Socket |
| Conductor entry | 2 mm ... 10.5 mm |
| Pg housing screw connection | none |
Material
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn), plastic parts: SPS |
|---|---|
| Gasket and O-ring material | NBR |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440202eCl@ss 8.027440202eCl@ss 9.027440202
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
