NBC-MSD/0,55-93E SCO CV 1409197 PHOENIX CONTACT Network Cable NBC-MSD/0,55-93E SCO HP 1409197
NBC-MSD/0,55-93E SCO CV
1409197
PHOENIX_CONTACT
50
Network Cable - NBC-MSD/0,55-93E SCO HP - 1409197

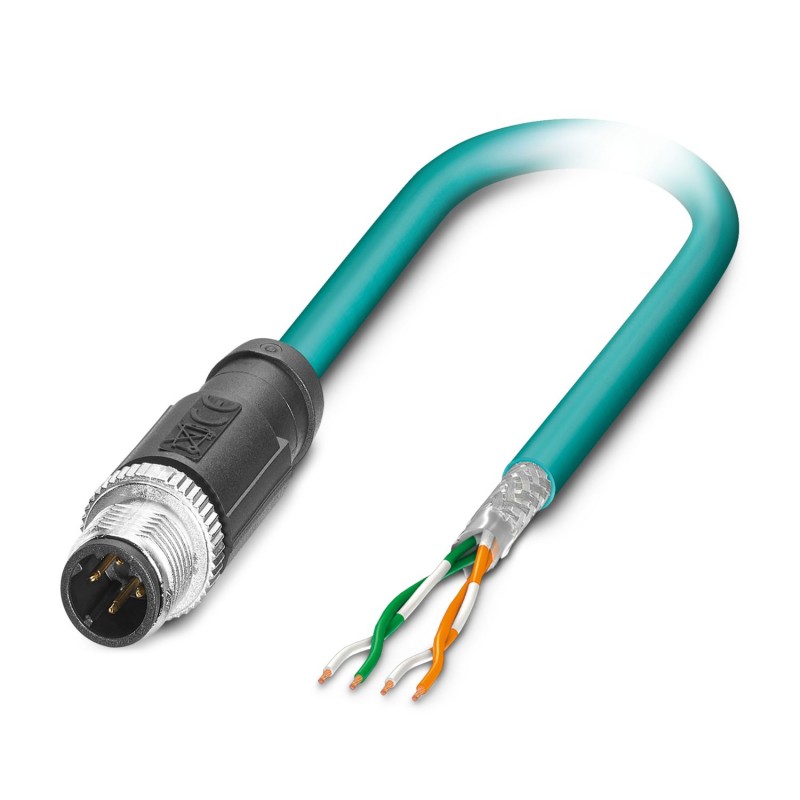

Network cable, CAT5 Ethernet, 4-pole, shielded, M12 straight connector, encoding: D SPEEDCON / IP67, free cable end, cable length: 0.55 m
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Network Cable, Ethernet CAT5, 4-pole, PUR, aqua blue RAL 5021, shielded, Plug straight M12 SPEEDCON / IP67, coding: D, end of free cable, cable length: 0.55 m
Data commercial
| Key order | One million four hundred nine thousand one hundred ninety seven |
|---|---|
| Packing unit | 1 pcs |
| Key selling | BF1CJI - |
| EAN | Four trillion forty six billion three hundred fifty six million eight hundred sixty three thousand seven hundred seventy three |
| Unit weight (excluding packaging) | 38,400 g |
| Tariff number tariff | Eighty five million four hundred forty four thousand two hundred ninety |
Measures
| Cable length | 0.55 m |
|---|
Environmental conditions
| Index of protection | IP65 |
|---|---|
| IP67 | |
| Room temperature (service) | -25 °C ... 90 °C (Connector M12) |
General data
| Current sizing at 40 °C | 4 A (Male/female according to IEC 61076-2-101; you must take into account the technical data of the cable) |
|---|---|
| Tension sizing | 48 V AC |
| 60 V DC | |
| Number of poles | Four |
| Signal type/category | Ethernet CAT5 (IEC 11801:2002) |
| Standards/specifications | Plug-in connector M12 to IEC 61076-2-101 |
| Material contact | CuSn |
| Material support of contacts | TPU GF |
| Material contact surface | Ni/Au |
Values nominal head 1
| Construction header | Connector straight M12 SPEEDCON / IP67 |
|---|---|
| Number of poles (face of plug) | Four |
| Encoding | D (Data) |
| Color | black |
| Material (components) | CuZn (Contact) |
| Ni/Au (Surface contacts) | |
| PA (Support contacts) | |
| TPU, low flammability, self-extinguishing (Body grip) | |
| Die-cast zinc, nickel-Connection by screw) | |
| Insulation resistance | ≥ 100 MΩ |
| Cycles of plug | ≥ 100 |
| Tightening torque | 0.4 Nm |
| Room temperature (service) | -25 °C ... 90 °C |
Nominal values 2 head
| Construction header | end of free cable |
|---|
Standards and specifications
| Name of standard | Plug-in connector M12 |
|---|---|
| Standards/specifications | IEC 61076-2-101 |
Cable
| Type of cable | PUR ETHERNET 2x2 FLEX |
|---|---|
| Cable type (abbreviation) | 93E |
| UL AWM Style | 20963 (80 °C / 30 V) |
| Signal type/category | Ethernet CAT5 (IEC 11801), 100 MBit/s |
| Construction of cable | 2x2xAWG26/7; SF/UTP |
| Section of driver | 2x 2x 0.14 mm2 |
| Signal cable AWG | Twenty six |
| Construction of the driver signal cable | 7x 0.16 mm |
| Diameter of the conductors, insulation included | 0.98 mm |
| Colors driver | white/orange-orange, white/green-green |
| Pair cabling | 2 drivers as a pair |
| Cabling total | 2 pairs with 2 fillings as a soul |
| Shielding | Sheet with lined aluminum, mesh of copper wires tinned |
| Cover visual screen | 70 % |
| Outer wrap, color | aqua blue RAL 5021 |
| Wall thickness outer wrap | 1.2 mm |
| Outer diameter of cable D | 6.4 mm ±0.2 mm |
| Minimum bending radius, placed in a fixed manner | 4 x D |
| Minimum bending radius, placed in a flexible way | 8 x D |
| The tensile strength of GRP | ≤ 80 N |
| Weight of the cable | 42 kg/km |
| Outer casing, material | PUR |
| Material Insulation conductor | PE foamed |
| Conductive Material | Conductor Cu bare |
| Standards/provisions | Electrical requirements IN 50288-2-2 |
| Insulation resistance | ≥ 500 MΩ*km |
| Resistance to polishing | ≤ 290,00 Ω/km |
| Capacity of the line | approx. 45 nF/km (1 kHz) |
| Impedance own | 100 Ω ±5 Ω (at 100 MHz) |
| Attenuation paradiafónica (NEXT) | 65,3 dB (1 MHz) |
| For 56.3 dB (4 MHz) | |
| To 50.3 dB (at 10 MHz) | |
| 47,2 dB (16 MHz) | |
| 45,8 dB (at 20 MHz) | |
| 42,9 dB (or 31.25 MHz) | |
| 38,4 dB (62.5 MHz) | |
| To 35.3 dB (at 100 MHz) | |
| Attenuation paradiafónica with power numbered (PSNEXT) | 62,3 dB (1 MHz) |
| 53,3 dB (4 MHz) | |
| 47,3 dB (at 10 MHz) | |
| 44,2 dB (16 MHz) | |
| 42,8 dB (at 20 MHz) | |
| 39,9 dB (or 31.25 MHz) | |
| At 35.4 dB (62.5 MHz) | |
| 32,3 dB (at 100 MHz) | |
| Attenuation | 3.2 dB (with 1 MHz) |
| 6 dB (4 MHz) | |
| 9.5 dB (at 10 MHz) | |
| 12,1 dB (16 MHz) | |
| 13,6 dB (at 20 MHz) | |
| 17.1 dB (at 31,25 MHz) | |
| 24,8 dB (62.5 MHz) | |
| 32 dB (at 100 MHz) | |
| Attenuation of return (RL) | 23 dB (4 MHz) |
| Of 24.1 dB (at 8 MHz) | |
| 25 dB (to 10 MHz) | |
| 25 dB (16 MHz) | |
| 25 dB (at 20 MHz) | |
| 23,6 dB (or 31.25 MHz) | |
| 21,5 dB (62.5 MHz) | |
| Of 20.1 dB (at 100 MHz) | |
| Transit time of signals | 5,3 ns/m |
| Transfer impedance | ≤ 100,00 mΩ/m (at 10 MHz) |
| Rated voltage Cable | ≤ 100 V (peak Value, not suitable for high intensity) |
| Test voltage Conductor/Conductor | 700 V (50 Hz, 1 min) |
| Test voltage Conductor/Screen | 700 V (50 Hz, 1 min) |
| Capacity of current line | 2 a (according To DIN VDE 0891-1) |
| Flame resistance | according to IEC 60332-1-2 |
| according to UL VW1 | |
| Absence of halogen | according to IEC 60754-1 |
| Oil resistance | according to en 60811-2-1 |
| Room temperature (service) | -40 °C ... 80 °C (cable, fixed) |
| -20 °C ... 80 °C (cable, available mobile) | |
| Room temperature (available) | -20 °C ... 80 °C |
| Ambient temperature (storage / transport) | -20 °C ... 80 °C |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
