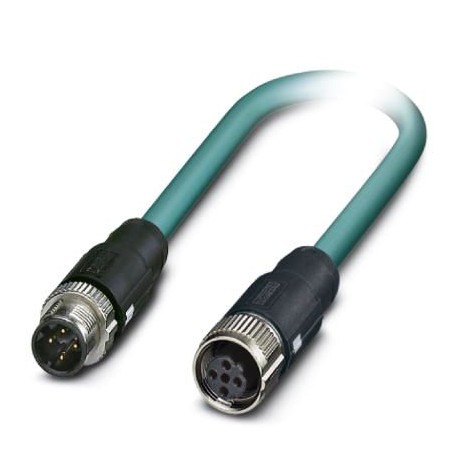

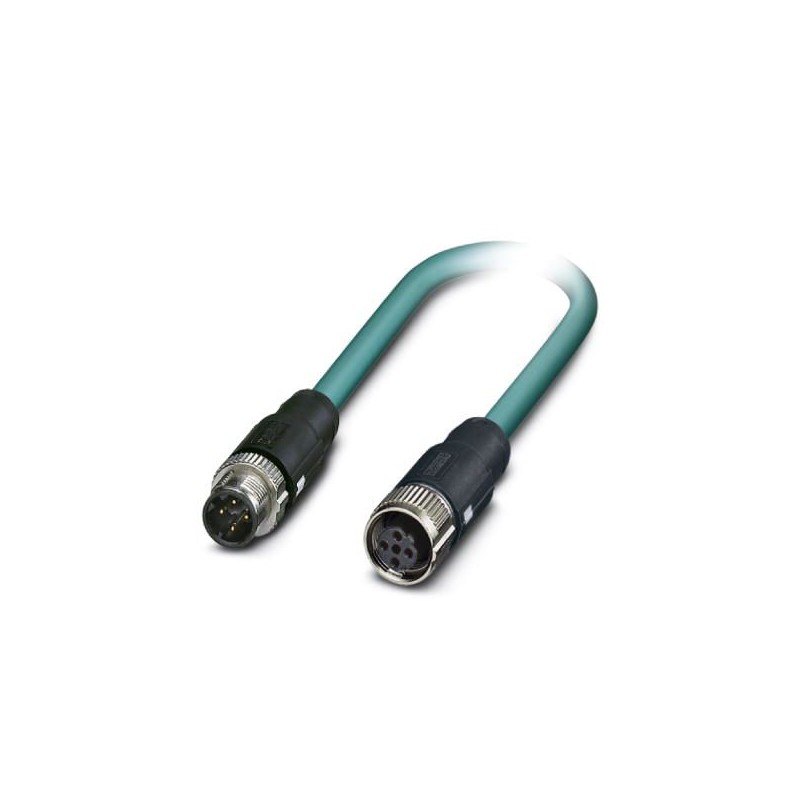

NBC-M12MSD/ 0,5-93E/M12FSD US
1408731
PHOENIX_CONTACT
50
Network cable
Cables > Data cable
Industrial Field Connectivity (IFC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1408731 |
---|---|
Packing unit | 1 pc |
Minimum order quantity | 50 pc |
Note | Made to Order (non-returnable) |
GTIN | 4046356828734 |
Weight per Piece (excluding packing) | 50.500 g |
Custom tariff number | 85444210 |
Country of origin | US (United States) |
Degree of protection | IP65 |
---|---|
IP67 | |
Ambient temperature (operation) | -25 °C ... 85 °C (M12 connector) |
Rated current at 40°C | 4 A (Plug/socket in accordance with IEC 61076-2-101, cable technical data is to be observed) |
---|---|
Rated voltage | 48 V AC |
60 V DC | |
Number of positions | 4 |
Signal type/category | Ethernet CAT5 (IEC 11801), 100 Mbps |
Standards/regulations | M12 connector IEC 61076-2-101 |
Contact material | CuSn |
Contact carrier material | TPU GF |
Contact surface material | Ni/Au |
Cable type | PUR ETHERNET 2x2 FLEX |
---|---|
Cable type (abbreviation) | 93E |
UL AWM style | 20963 (80°C/30 V) |
Signal type/category | Ethernet CAT5 (IEC 11801), 100 Mbps |
Cable structure | 2x2xAWG26/7; SF/UTP |
Conductor cross section | 2x 2x 0.14 mm² |
AWG signal line | 26 |
Conductor structure signal line | 7x 0.16 mm |
Core diameter including insulation | 0.98 mm |
Wire colors | white/orange-orange, white/green-green |
Twisted pairs | 2 cores to the pair |
Overall twist | Two pairs with two fillers to the core |
Shielding | Aluminum-coated foil, tinned copper braided shield |
Optical shield covering | 70 % |
External sheath, color | water blue RAL 5021 |
Outer sheath thickness | 1.2 mm |
External cable diameter D | 6.4 mm ±0.2 mm |
Minimum bending radius, fixed installation | 4 x D |
Minimum bending radius, flexible installation | 8 x D |
Tensile strength GRP | ≤ 80 N |
Cable weight | 42 kg/km |
Outer sheath, material | PUR |
Material conductor insulation | Foamed PE |
Conductor material | Bare Cu litz wires |
Standards/specifications | Electrical requirements EN 50288-2-2 |
Insulation resistance | ≥ 500 MΩ*km |
Loop resistance | ≤ 290.00 Ω/km |
Cable capacity | approx. 45 nF/km (at 1 kHz) |
Wave impedance | 100 Ω ±5 Ω (at 100 MHz) |
Near end crosstalk attenuation (NEXT) | 65.3 dB (with 1 MHz) |
56.3 dB (at 4 МHz) | |
50.3 dB (at 10 MHz) | |
47.2 dB (at 16 MHz) | |
45.8 dB (at 20 МHz) | |
42.9 dB (at 31.25 МHz) | |
38.4 dB (at 62.5 МHz) | |
35.3 dB (at 100 MHz) | |
Power-summated near end crosstalk attenuation (PSNEXT) | 62.3 dB (with 1 MHz) |
53.3 dB (at 4 МHz) | |
47.3 dB (at 10 MHz) | |
44.2 dB (at 16 MHz) | |
42.8 dB (at 20 МHz) | |
39.9 dB (at 31.25 МHz) | |
35.4 dB (at 62.5 МHz) | |
32.3 dB (at 100 MHz) | |
Attenuation | 3.2 dB (with 1 MHz) |
6 dB (at 4 МHz) | |
9.5 dB (at 10 MHz) | |
12.1 dB (at 16 MHz) | |
13.6 dB (at 20 МHz) | |
17.1 dB (at 31.25 МHz) | |
24.8 dB (at 62.5 МHz) | |
32 dB (at 100 MHz) | |
Return loss (RL) | 23 dB (at 4 МHz) |
24.1 dB (at 8 МHz) | |
25 dB (at 10 MHz) | |
25 dB (at 16 MHz) | |
25 dB (at 20 МHz) | |
23.6 dB (at 31.25 МHz) | |
21.5 dB (at 62.5 МHz) | |
20.1 dB (at 100 MHz) | |
Signal runtime | 5.3 ns/m |
Coupling resistance | ≤ 100.00 mΩ/m (at 10 MHz) |
Nominal voltage, cable | ≤ 100 V (Peak value, not for high-power applications) |
Test voltage Core/Core | 700 V (50 Hz, 1 min.) |
Test voltage Core/Shield | 700 V (50 Hz, 1 min.) |
Current carrying capacity of cable | 2 A (according to DIN VDE 0891-1) |
Flame resistance | according to IEC 60332-1-2 |
in acc. to UL VW1 | |
Halogen-free | according to IEC 60754-1 |
Resistance to oil | according to EN 60811-2-1 |
Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
-20 °C ... 80 °C (cable, flexible installation) | |
Ambient temperature (installation) | -20 °C ... 80 °C |
Ambient temperature (storage/transport) | -20 °C ... 80 °C |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
