NBC-M12MRD/ 0,5-93P/R4AQ 1417979 PHOENIX CONTACT Assembled Ethernet cable, CAT5e, shielded, 2-pair, 26 AWG s..
NBC-M12MRD/ 0,5-93P/R4AQ
1417979
PHOENIX_CONTACT
25

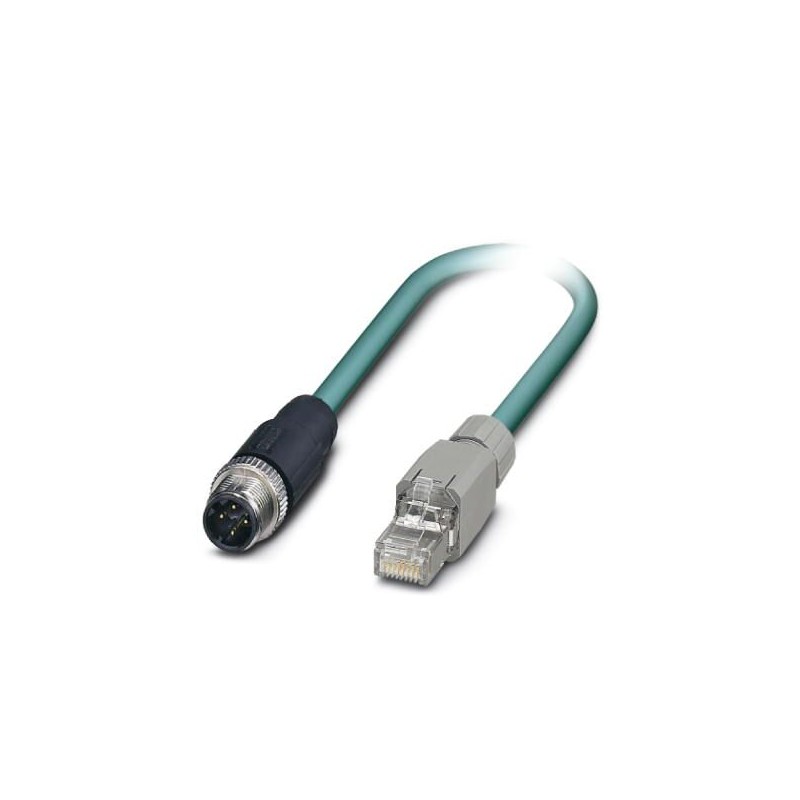

Assembled Ethernet cable, CAT5e, shielded, 2-pair, 26 AWG stranded (7-wire), RAL 5021 (water blue), M12 plug to RJ45 plug/IP20, line, length: 0.5 m
Ready-made Ethernet cable, CAT5e, shielded, 2 pairs, flexible AWG 26 (7 wires), RAL 5021 (aqua blue), M12 male to RJ45/IP20 male connector, line, length 0.5 m
Cables > Data cable
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 85 °C (M12 connector) |
|---|---|
| -25 °C ... 60 °C (cable, fixed installation) | |
| -5 °C ... 50 °C (cable, flexible installation) |
General data
| Rated voltage | 48 V AC |
|---|---|
| 60 V DC | |
| Number of positions | 4 |
| Signal type/category | Ethernet CAT5 (IEC 11801:2002) |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Degree of pollution | 3 |
| Alternative short product description | Ethernet cable |
| Contact material | CuSn |
| Contact carrier material | TPU GF |
| Contact surface material | Ni/Au |
| Housing material | Plastic |
Characteristics head 1
| Head type | Plug angled M12 / IP67 |
|---|---|
| No. of positions (pin connector pattern) | 4 |
| Color | black |
| Material (component) | CuZn (Contact) |
| Ni/Au (Contact surface) | |
| PA (Contact carriers) | |
| TPU, hardly inflammable, self-extinguishing (Grip) | |
| Zinc die-cast, nickel-plated (Screw connection) | |
| Insulation resistance | ≥ 100 MΩ |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.4 Nm |
Characteristics head 2
| Head type | Plug straight RJ45 Push Pull / IP67 |
|---|---|
| No. of positions (pin connector pattern) | 4 (8) |
| Color | black |
| Material (component) | CuSn (Contact) |
| Ni/Au (Contact surface) | |
| PC (Contact carriers) | |
| PA GF (Housing) | |
| Insertion/withdrawal cycles | ≥ 750 |
Standards and Regulations
| Standards/specifications | M12 connector IEC 61076-2-101 |
|---|---|
| Flammability rating according to UL 94 | V2 |
Cable
| Cable type | Ethernet |
|---|---|
| Cable type (abbreviation) | 93P |
| UL AWM style | 2654 (90 °C / 300 V) |
| Signal type/category | Ethernet CAT5 (IEC 11801), 100 Mbps |
| Cable structure | 2x2xAWG26/7; SF/UTP |
| Conductor cross section | 2x 2x 0.14 mm² |
| AWG signal line | 26 |
| Conductor structure signal line | 7x 0.16 mm |
| Core diameter including insulation | 0.98 mm ±0.05 mm |
| Wire colors | white/orange-orange, white/green-green |
| Twisted pairs | 2 cores to the pair |
| Type of pair shielding | Aluminum-lined polyester foil |
| Overall twist | Two pairs with two fillers to the core |
| Shielding | Tinned copper braided shield |
| Optical shield covering | 85 % |
| External sheath, color | water blue RAL 5021 |
| Outer sheath thickness | ≥ 1 mm |
| External cable diameter D | 6.4 mm ±0.2 mm |
| Smallest bending radius, movable installation | 25 mm |
| Tensile strength GRP | ≤ 40 N |
| Outer sheath, material | PVC |
| Material conductor insulation | PP |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | > 5 GΩ*km |
| Conductor resistance | ≤ 140 Ω/km |
| Working capacitance | < 56 nF |
| Wave impedance | 100 Ω ±5 % (at 100 MHz) |
| Signal speed | 0.6 c |
| Signal runtime | 0.4 ns/m |
| Shield attenuation | 32 dB (up to 100 MHz) |
| Nominal voltage, cable | ≤ 300 V AC |
| ≤ 450 V DC | |
| Test voltage Core/Core | 2500 V DC |
| Flame resistance | According to VW-1 |
| Resistance to oil | in accordance with DIN EN 60811-2-1 |
| Other resistance | Resistant to cleaning agents/disinfectants According to ECOLAB F&E/P3-E No. 40-1 |
| Ambient temperature (operation) | -40 °C ... 90 °C |
| Ambient temperature (installation) | 0 °C ... 50 °C |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 4.0 | 24010400 |
|---|---|
| eCl@ss 4.1 | 24010400 |
| eCl@ss 5.0 | 19030300 |
| eCl@ss 5.1 | 19030300 |
| eCl@ss 6.0 | 27061800 |
| eCl@ss 7.0 | 27061801 |
| eCl@ss 8.0 | 27061801 |
| eCl@ss 9.0 | 27061801 |
UNSPSC
| UNSPSC 13.2 | 26121604 |
|---|---|
| UNSPSC 18.0 | 26121604 |
| UNSPSC 19.0 | 26121604 |
| UNSPSC 20.0 | 26121604 |
| UNSPSC 21.0 | 26121604 |
