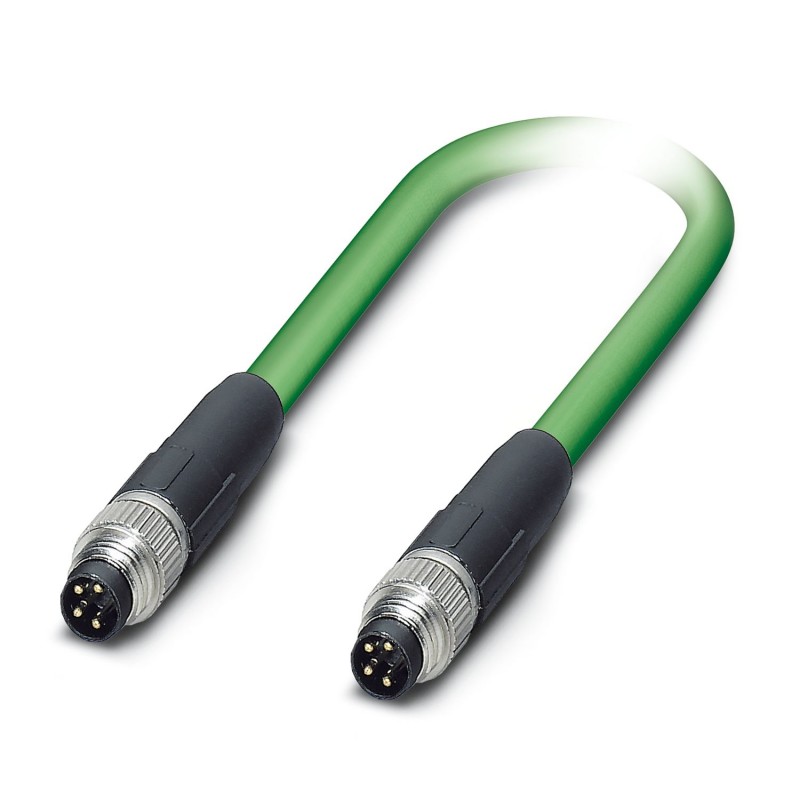

NBC-M 8MS/ 1,0-93C/M 8MS 1426301 PHOENIX CONTACT Network Cable, Ethernet (100 mbps), PROFINET (100 mbps), Et..
NBC-M 8MS/ 1,0-93C/M 8MS
1426301
PHOENIX_CONTACT
50
Network Cable, Ethernet (100 mbps), PROFINET (100 mbps), EtherCAT® (100 mbps), 4-pole, PUR/FRNC halogen-free, green RAL 6018, shielded, Plug straight M8 / IP67, coding: A, on Plug straight M8 / IP67, coding: A, cable length: 1 m
Network cable, Ethernet (100 MBit/s), PROFINET (100 MBit/s), EtherCAT® (100 MBit/s), 4-pole halogen-free, shielded, M8 straight connector, encoding: A/IP67, a M8 straight connector, encoding: A/IP67, cable length: 1 m
Data and telecommunication > Patch cord copper (twisted pair)
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product Type | Ready-made data cable |
| application | Standard |
| Sensor Type | Ethernet |
| Number of poles | 4 |
| Number of Cable Outlets | 1 |
| Shielded | Yes |
| Codification | to |
| Bus system | Ethernet |
| Signal Type/Category | Ethernet, 100 MBit/s |
| PROFINET, 100 MBit/s | |
| EtherCAT®, 100 MBit/s |
| Status Indication | No |
| Available Status Indication | No |
| Nominal voltage UN | 30 V AC |
| 30 V DC | |
| Nominal Current IN | 4 A |
| Transmission Medium | copper |
| Connection 1 | |
| Construction | M8 / IP67 Straight Connector |
| Number of poles | 4 |
| Encoding Type | A (Standard) |
| Grip body color | black |
| Material | CuSn (Contact) |
| Ni/Au (Surface Contacts) | |
| TPU GF (Contact Support) | |
| TPU, low flammable, self-extinguishing (Grip body) | |
| Zinc die-casting, nickel-plated (Screw connection) | |
| Plug Cycles | ≥ 100 |
| Insulation resistance | ≥ 100 MΩ |
| Tightening torque | 0.2 Nm |
| Protection Index | IP67 |
| Ambient Temperature (Service) | -25 °C ... 90 °C |
| Connection 2 | |
| Construction | M8 / IP67 Straight Connector |
| Number of poles | 4 |
| Encoding Type | A (Standard) |
| Grip body color | black |
| Material | CuSn (Contact) |
| Ni/Au (Surface Contacts) | |
| TPU GF (Contact Support) | |
| TPU, low flammable, self-extinguishing (Grip body) | |
| Zinc die-casting, nickel-plated (Screw connection) | |
| Plug Cycles | ≥ 100 |
| Insulation resistance | ≥ 100 MΩ |
| Tightening torque | 0.2 Nm |
| Protection Index | IP67 |
| Ambient Temperature (Service) | -25 °C ... 90 °C |
| Cable length | 3 / |
| PROFINET CAT5 [93C] drag chain | |
| Dimension Scheme |  |
| Cable Weight | 61 kg/km |
| Number of poles | 4 |
| Shielded | Yes |
| Cable type | PROFINET CAT5 [93C] drag chain |
| Conductor Design | 1x4xAWG22/7, SF/TQ |
| Signal Transit Time | 5.3 ns/m |
| Signal Rate | 0.66 c |
| Conductor Construction Signal Cable | 7x 0.25 mm |
| AWG Signal Line | 22 |
| Line Section | 4x 0.34 mm² |
| Conductor diameter incl. insulation | 1.5 mm |
| Cable Outer Diameter | 6.50 mm ±0.2 mm |
| Outer Wrap, Material | PUR |
| Outer Wrap, Color | green RAL 6018 |
| Conductive Material | Tinned Cu Conductor |
| Material: Conductor Insulation | EP |
| Single Driver, Color | white, yellow, blue, orange |
| Wall Thickness Outer Wrap | approx. 0.90 mm |
| Total cabling | Star Quadretes |
| Visual Screen Cover | 85 % |
| Insulation resistance | ≥ 500 MΩ*km |
| Transfer Impedance | ≤ 20.00 mΩ/m (at 10 MHz) |
| Polishing resistance | ≤ 120.00 Ω/km |
| Characteristic impedance | 100 Ω ±15 Ω (to 1 ... 100 MHz) |
| Nominal Voltage Cable | 600V (UL Qualified) |
| Test Voltage Conductor/Conductor | 2000 V (50 Hz, 1 min.) |
| Test Voltage Conductor/Display | 2000.00 V (50 Hz, 1 min.) |
| Minimum bending radius, fixed | 5 x D |
| Minimum bending radius, flexibly positioned | 7.5 x D |
| Smaller bending radius, fixed mounting | 33 mm |
| Smaller bending radius, movable mounting | 49 mm |
| Dynamic load capacity (bending) | Max. bending cycles: 3000000, Bending radius: 100 mm, Forward distance: 10 m, Forward speed: 4 m/s, Acceleration: 4 m/s² |
| Tensile strength | ≤ 150 N |
| Dynamic load capacity (torque) | Torque: ±30°/m |
| Paradiaphonic Attenuation (NEXT) | 80 dB (with 1 MHz) |
| 76 dB (at 4 MHz) | |
| 70 dB (at 10 MHz) | |
| 65 dB (with 16 MHz) | |
| 63 dB (at 20 MHz) | |
| 60 dB (at 31.25 MHz) | |
| 55 dB (at 62.5 MHz) | |
| 50 dB (at 100 MHz) | |
| Screen dimming | 2.1 dB (at 1 MHz) |
| 4 dB (at 4 MHz) | |
| 6.3 dB (at 10 MHz) | |
| 8 dB (with 16 MHz) | |
| 9 dB (at 20 MHz) | |
| 11.4 dB (at 31.25 MHz) | |
| 16.5 dB (at 62.5 MHz) | |
| 21.3 dB (at 100 MHz) | |
| Absence of halogens | Yes |
| Flame Resistance | according to IEC 60332-1-2 |
| according to UN ECE-R 118.03 | |
| Oil Resistance | according to DIN EN 60811-2-1 |
| Other resistances | UV resistant |
| Special Features | Electrical properties according to EN 50288-2-2 |
| Ambient Temperature (Service) | -40 °C ... 70°C (cable, fixed arrangement) |
| -40 °C ... 70 °C (Cable, movable arrangement) | |
| Ambient Temperature (Layout) | -20 °C ... 60 °C |
| Environmental conditions | |
| Protection Index | IP65/IP67 |
| Ambient Temperature (Service) | -25 °C ... 90°C (male/female) |
| M8 | |
| Denomination of standard | M8 plug-in connector |
| Rules/Provisions | IEC 61076-2-104 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Type of electrical connection, field-sided (EF005525) | M8 |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | M8 |
| Type of plug-in contact, box-sided (EF008386) | Male (plug) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 1 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -40 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 30 V |
| Degree of protection (IP) (EF005474) | IP67 |
