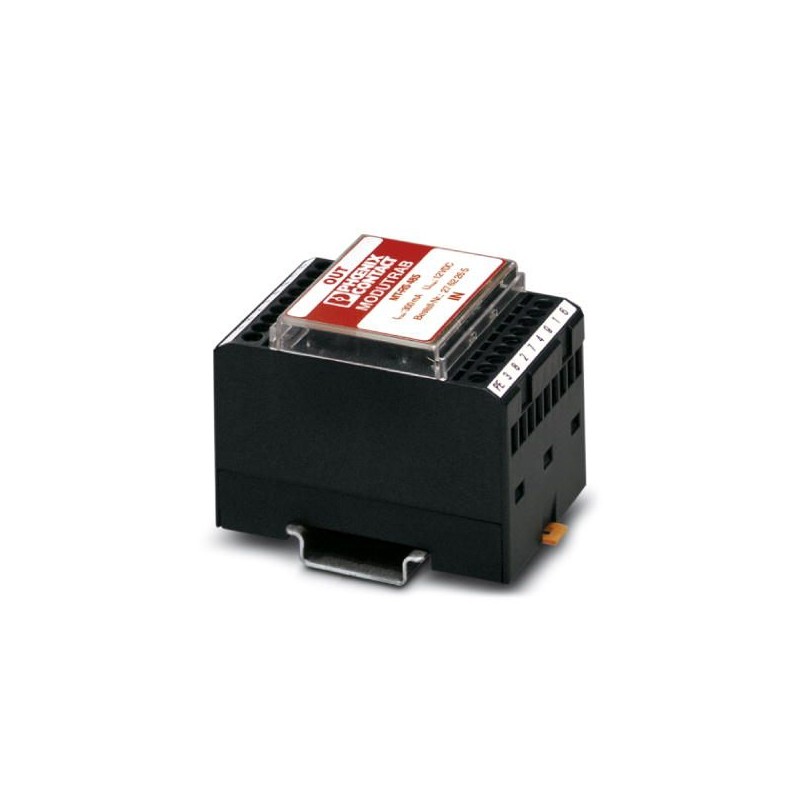

MT-RS485 2762265 PHOENIX CONTACT Surge protection device
MT-RS485
2762265
PHOENIX_CONTACT
Surge protection device
Rail mounting module with coarse and fine surge protection for RS-485 interface, for mounting on NS 35/7.5, housing width: 50 mm
Earthing, lightning and surge protection > Surge protection device for data networks/MCR-technology
Trabtech (TT)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2762265 |
|---|---|
| Packing unit | 5 pc |
| Catalog page | Page 100 (TT-2002) |
| GTIN | 4017918064945 |
| Weight per Piece (excluding packing) | 101.950 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
General
| Color | black |
|---|---|
| Mounting type | DIN rail: 35 mm |
| Type | DIN rail module, one-piece |
| Direction of action | Line-Line & Line-Signal Ground/Shield & Signal Ground/Shield-Earth Ground |
Protective circuit
| IEC test classification | C2 |
|---|---|
| C3 | |
| D1 | |
| VDE requirement class | C2 |
| C3 | |
| D1 | |
| Maximum continuous voltage UC | 12 V DC |
| Rated current | 450 mA (25 °C) |
| Operating effective current ICat UC | ≤ 10 µA |
| Nominal discharge current In(8/20) µs (line-line) | 10 kA |
| Nominal discharge current In(8/20) µs (line-earth) | 10 kA |
| Pulse discharge current Iimp(10/350) µs | 500 A |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 22 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 600 V |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 22 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 600 V |
| Output voltage limitation at 1 kV/µs (line-signalground) static | ≤ 22 V |
| Residual voltage at In(line-line) | ≤ 19 V |
| Residual voltage at In(line-signalground) | ≤ 19 V |
| Voltage protection level Up(line-line) | ≤ 22 V |
| Voltage protection level Up(line-earth) | ≤ 600 V |
| Voltage protection level Up(line-signalground) | ≤ 22 V |
| Response time tA(line-line) | 1 ns |
| Response time tA (line-signalground) | ≤ 1 ns |
| Response time tA(line-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | |
| ≤ 0.1 dB (up to 10 kHz) | |
| Input attenuation aE, asym. | 0.8 dB (up to 0.1 MHz 50 Ω system) |
| 0.1 dB (up to 10 kHz 600 Ω system) | |
| Cut-off frequency fg (3 dB), asym. (GND) in 50 Ohm system | 1.3 MHz |
| Cut-off frequency fg (3 dB), asym. (GND) in 600 Ohm system | 130 kHz |
| Resistance in series | 4.4 Ω |
| Surge protection fault message | none |
Connection data
| Connection method | Screw connection |
|---|---|
| Connection method IN | Screw terminal blocks |
| Connection method OUT | Screw terminal blocks |
| Screw thread | M3 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
Classifications
eCl@ss 4.027140201eCl@ss 4.127130801eCl@ss 5.027130801eCl@ss 5.127130800eCl@ss 6.027130800eCl@ss 7.027130807eCl@ss 8.027130807eCl@ss 9.027130807
