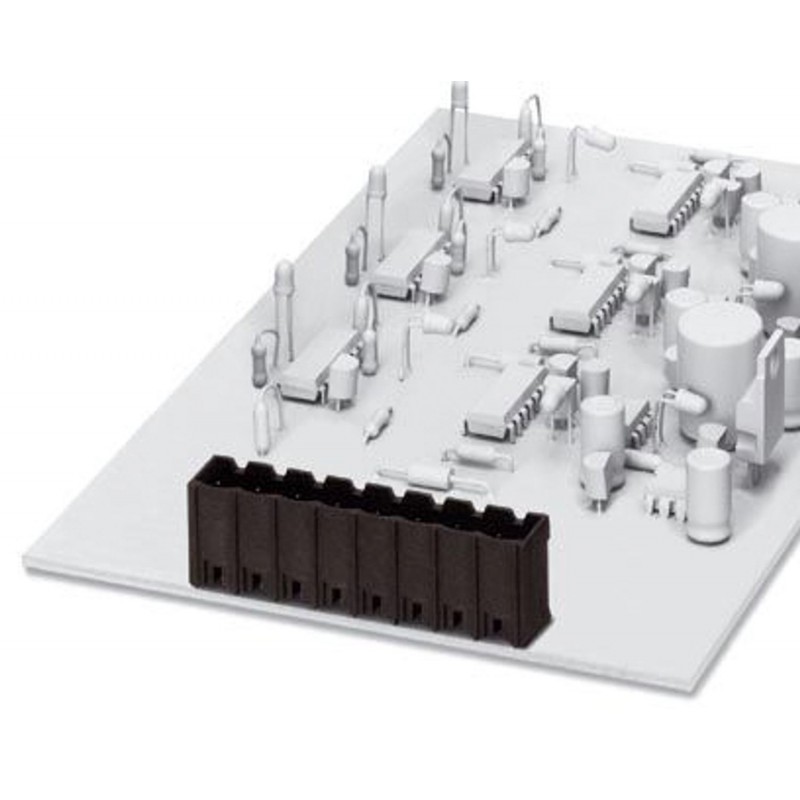

MSTBVA 2,5/ 4-G THT 1941029 PHOENIX CONTACT Printed-circuit board connector
MSTBVA 2,5/ 4-G THT
1941029
PHOENIX_CONTACT
50
Printed-circuit board connector
PCB headers, number of positions: 4, product range: MSTBVA 2,5/..-G-THT, pitch: 5 mm, pin layout: Linear pinning, solder pin [P]: 3.9 mm, type of packaging: packed in cardboard, For user information and design recommendations for through-hole reflow technology, go to: Downloads
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | PCB headers |
| Product family | MSTBVA 2,5/..-G-THT |
| Type | Component suitable for through hole reflow |
| Number of positions | 4 |
| Pitch | 5 mm |
| Mounting flange | without |
| Pin layout | Linear pinning |
| Data management status | |
| Article revision | 03 |
| Maximum load current | 12 A |
| Rated voltage (II/2) | 400 V |
| Rated voltage (III/2) | 320 V |
| Rated surge voltage (II/2) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (III/3) | 4 kV |
| Mounting type | THR soldering |
| Pin layout | Linear pinning |
| Color | black |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | IIIa |
| Insulating material | PA |
| Contact surface | Tin Sn |
| Contact surface material | Sn |
| Dimensional drawing |  |
| Width | 22 mm |
| Installed height | 12 mm |
| Height | 15.9 mm |
| Length of the solder pin | 3.9 mm |
| Length | 8.6 mm |
| Length of the solder pin | 3.9 mm |
| Hole diameter | 1.4 mm |
| Pitch | 5 mm |
| Type of packaging | packed in cardboard |
| Outer packaging type | Dry bag |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
