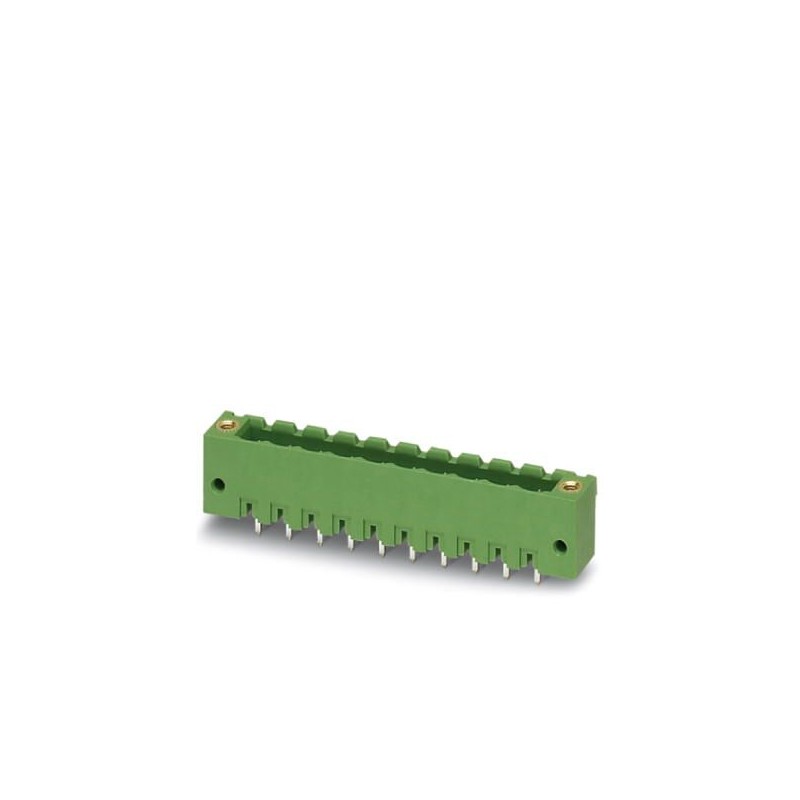

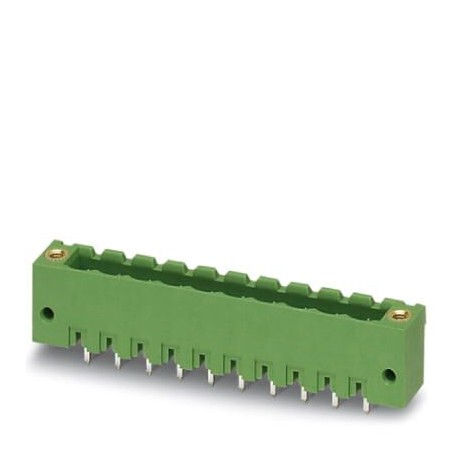

MSTBV 2,5/16-GF-5,08 CR2,15 1872605 PHOENIX CONTACT PCB headers, nominal current: 12 A, rated voltage (III/2..
MSTBV 2,5/16-GF-5,08 CR2,15
1872605
PHOENIX_CONTACT
100
PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 16, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering
Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Tin, contact type: Male, Number of potentials: 16, Number of rows: 1, Number of poles per row: 16, number of connections: 16, family of articles: MSTBV 2.5/.. -GF, pitch: 5.08 mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 3.9 mm, Stecksystem: CLASSIC COMBICON,Locking: Screw locking, packaging type: boxed
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 16, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering
Key Commercial Data
| Orderkey | 1872605 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626276625 |
| Custom tariff number | 85366930 |
Dimensions
| Length [ l ] | 8.6 mm |
|---|---|
| Width | 20.32 mm |
| Pitch | 5.08 mm |
| Dimension a | 76.2 mm |
| Width [ w ] | 20.32 mm |
| Height [ h ] | 15.9 mm |
| Height | 12 mm |
| Length of the solder pin | 3.9 mm |
| Pin dimensions | 1 x 1 mm |
| Length | 8.6 mm |
General
| Range of articles | MSTBV 2,5/..-GF |
|---|---|
| Insulating material group | IIIa |
| Rated voltage (III/2) | 320 V |
| Nominal current IN | 12 A |
| Flammability rating according to UL 94 | V0 |
| Color | green |
| Number of positions | 16 |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
|---|
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.1 | 27260700 |
|---|---|
| eCl@ss 6.0 | 27260700 |
| eCl@ss 7.0 | 27440402 |
| eCl@ss 8.0 | 27440402 |
| eCl@ss 9.0 | 27440402 |
ETIM
| ETIM 5.0 | EC002637 |
|---|---|
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
