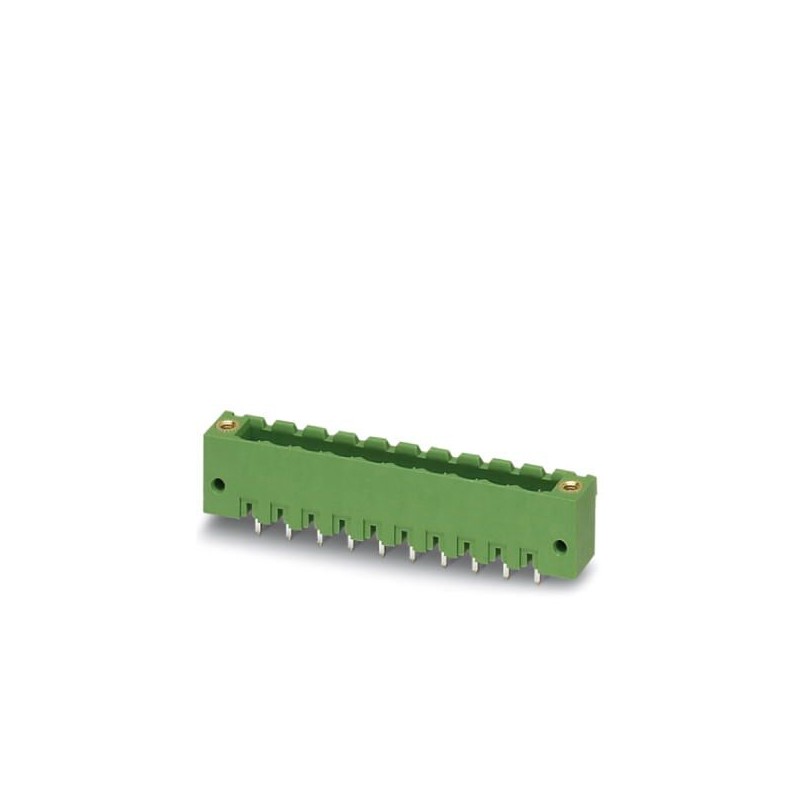

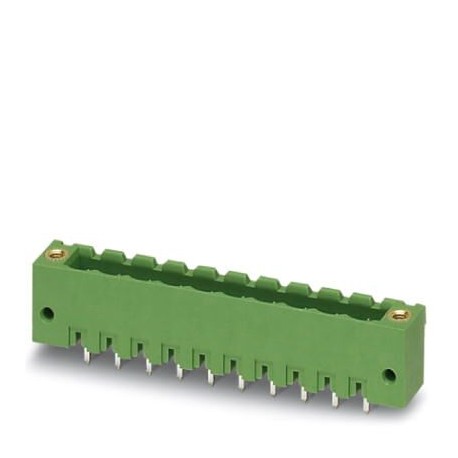

MSTBV 2,5/15-GF-5,08 AU
1805494
PHOENIX_CONTACT
500
PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 15, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering
PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 2.5 mm², number of positions: 15, pitch: 5.08 mm, color: green, contact surface: Gold, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1805494 |
---|---|
Packing unit | 1 pc |
Minimum order quantity | 500 pc |
GTIN | 4055626388502 |
Weight per Piece (excluding packing) | 8.000 g |
Custom tariff number | 85366930 |
Country of origin | DE (Germany) |
Length [ l ] | 8.6 mm |
---|---|
Width | 86.36 mm |
Pitch | 5.08 mm |
Dimension a | 71.12 mm |
Width [ w ] | 86.36 mm |
Height [ h ] | 15.9 mm |
Height | 12 mm |
Length of the solder pin | 3.9 mm |
Pin dimensions | 1 x 1 mm |
Length | 8.6 mm |
Range of articles | MSTBV 2,5/..-GF |
---|---|
Insulating material group | IIIa |
Rated voltage (III/2) | 320 V |
Nominal current IN | 12 A |
Flammability rating according to UL 94 | V0 |
Color | green |
Number of positions | 15 |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 years |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
eCl@ss 4.0 | 27260700 |
---|---|
eCl@ss 4.1 | 27260700 |
eCl@ss 5.0 | 27260700 |
eCl@ss 5.1 | 27260700 |
eCl@ss 6.0 | 27260700 |
eCl@ss 7.0 | 27440402 |
eCl@ss 8.0 | 27440402 |
eCl@ss 9.0 | 27440402 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
