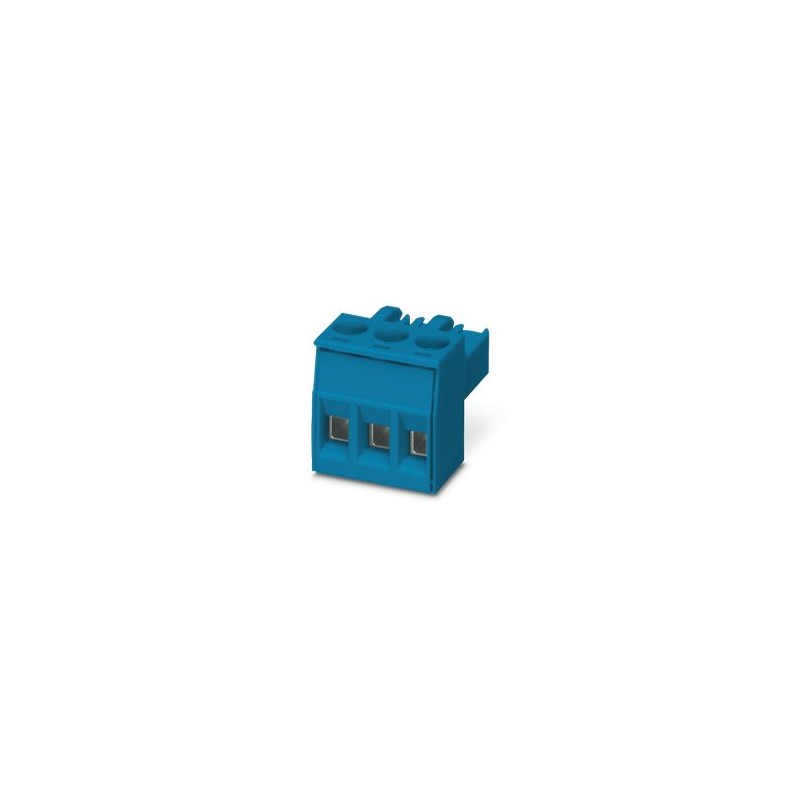

MSTBT 2,5 HC/ 3-STP BU TP:L2 OUT 1451378 PHOENIX CONTACT Connector for printed circuit board, nominal sectio..
MSTBT 2,5 HC/ 3-STP BU TP:L2 OUT
1451378
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
Connector for printed circuit board, nominal section: 2.5 mm², color: blue, nominal current: 16 A (see rating curve), nominal voltage (III/2): 320 V, contact surface: Sn, contact connection type: Female, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, family of articles: MSTBT 2.5 HC/.. -STP, pitch: 5 mm, connection type: Screw connection with traction capsule, conductor connection direction/printed circuit board: 0 °, clamping hook: - Clamping hook, plug-in system: COMBICON MSTB 2.5 HC, locking: without, fixing type: without, packaging type: boxed packed, Printed variant
Printed circuit board connector
PCB connector, nominal cross-section: 2.5 mm2, colour: blue, rated current: 16 A, dimensioning voltage (III/2): 320 V, contact surface: tin, contact connection type: Female, number of rows: 1, number of poles: 3, product series: MSTBT 2.5 HC/.. -STP, pitch: 5 mm, connection type: Screw connection with cage, conductor/board connection direction: 0 °, locking hook: - Locking hook, plug system: COMBICON MSTB 2.5 HC, locking: none, fixing type: none
Connectors > Cable connector
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| type | Standard |
| Product Line | COMBICON Connectors M |
| Product Type | Printed circuit board connector |
| Product Family | MSTBT 2.5 HC/.. -STP |
| No. of poles | 3 |
| Step | 5 mm |
| Number of rows | 1 |
| Rated Current IN | 16 A |
| Rated voltage UN | 250 V |
| Degree of pollution | 3 |
| Mass Resistivity | 1.2 mΩ |
| Sizing voltage (III/3) | 250 V |
| Sizing impulse voltage (III/3) | 4 kV |
| Sizing voltage (III/2) | 320 V |
| Sizing Impulse Voltage (III/2) | 4 kV |
| Sizing voltage (II/2) | 630 V |
| Sizing Impulse Voltage (II/2) | 4 kV |
| Connection technology | |
| type | Standard |
| Connector system | COMBICON MSTB 2.5 HC |
| Nominal cross-section | 2.5 mm² |
| Contact Connection Type | female |
| Blockage | |
| Clamping Type | absent |
| Fixing flange | absent |
| Conductor connection | |
| Link | Screw connection with cage |
| Conductor/board connection direction | 0 ° |
| Rigid conductor cross-section | 0.2 mm² ... 2.5 mm² |
| Flexible conductor cross-section | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section AWG | 24 ... 12 |
| Flexible conductor cross-section with cable lug without plastic collar | 0.25 mm² ... 2.5 mm² |
| Flexible conductor cross-section with mounted lug and plastic collar | 0.25 mm² ... 2.5 mm² |
| 2 conductors of identical cross-section, rigid | 0.2 mm² ... 1 mm² |
| 2 conductors of identical flexible cross-section | 0.2 mm² ... 1.5 mm² |
| 2 conductors of the same flexible cross-section with ferrule without plastic collar | 0.25 mm² ... 1 mm² |
| 2 conductors of identical cross-section flexible with TWIN ferrule with plastic collar | 0.5 mm² ... 1.5 mm² |
| Buffer Gauge a x b / diameter | 2.8 mm x 2.0 mm / 2.4 mm |
| Length of the section to be stripped | 7 mm |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Material information - contacts | |
| note | Complies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu Alloy |
| Surface Finish | Hot-dip galvanizing |
| Metal Surface, Connection Point (Surface Layer) | Tin (4 - 8 μm Sn) |
| Metal surface contact zone (surface layer) | Tin (4 - 8 μm Sn) |
| Material information - case | |
| Color (Case) | Blue (5015) |
| Insulation material | PA |
| Insulation Material Group | The |
| CTI according to IEC 60112 | 600 |
| Combustibility class according to UL 94 | V0 |
| Flammability index of GWFI filament according to EN 60695-2-12 | 850 |
| GWIT filament ignition temperature according to EN 60695-2-13 | 775 |
| Brinell hardness test temperature according to EN 60695-10-2 | 125 °C |
| Dimensioned Drawing |  |
| Step | 5 mm |
| Width [w] | 15 mm |
| Height [h] | 15 mm |
| Length [l] | 18.1 mm |
| Link | Screw connection |
| Note for Operation | According to DIN EN 61984, COMBICON connectors are switchable powerless (COC) connectors. For intended use, they must not be plugged in or disconnected when they are still energized or under load. |
| Safety Warning | |
| Safety instructions | WARNING: Connectors must not be connected or disconnected under load. Failure to comply with it and use it in accordance with the rules may result in damage to persons and/or property. |
| • WARNING: Only operate products in perfect condition. Regularly check the products for damage. Immediately take out defective products. Replace the damaged products. The item cannot be repaired. | |
| • WARNING: Have the product installed and operated only by qualified electrical personnel in accordance with the following safety instructions. Specialists must be familiar with the basics of electrical engineering and must be able to recognize and avoid hazards. The corresponding symbol on the packaging indicates that the intervention of qualified electrical personnel is required. | |
| • The item is intended as a non-encapsulated plug for installation in an enclosure. | |
| • Use the connector only when it is fully engaged. | |
| Conductor Integrity and Stability Test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Test passed |
| Tensile test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Conductor cross-section/conductor type/tensile force nominal value/actual value | 0.2 mm² / rigid / > 10 N |
| 0.2 mm² / flexible / > 10 N | |
| 2.5 mm² / rigid / > 50 N | |
| 2.5 mm² / flexible / > 50 N | |
| Insertion/tensile force | |
| Result | Test passed |
| Number of cycles | 25 |
| Insertion force per pole approx. | 11 N |
| Tensile force per pole approx. | 7 N |
| Torque test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Resistance of lettering | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Test passed |
| Polarization and encoding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Test passed |
| Visual inspection | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Test passed |
| Dimensional control | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Test passed |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Sweep Speed | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axle | 2.5 h |
| Electrical life control | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Vertical impulse tension above sea level | 4.8 kV |
| Mass Resistivity R1 | 1.2 mΩ |
| Mass Resistivity R2 | 1.23 mΩ |
| Manoeuvring cycles | 25 |
| Insulation Resistance Between Contiguous Poles | > 21 TΩ |
| Climate control | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Stress due to corrosion | 1.0 dm3KNOW2on 300 dm3/40 °C/3 cycles |
| Stress due to the effect of heat | 100 °C/168 h |
| Fixed AC voltage | 3.1 kV |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 105 °C (depending on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Relative humidity (transport and storage) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Thermal Test Control Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Number of poles tested | 4 |
| Insulation Resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Between Contiguous Poles | > 21 TΩ |
| Creepage and Creepage Distances | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulation Material Group | The |
| Resistance to surface currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Rated insulation voltage (III/3) | 250 V |
| Rated impulse voltage (III/3) | 4 kV |
| Minimum clearance value - inhomogeneous range (III/3) | 3 mm |
| Minimum creepage value (III/3) | 3.2 mm |
| Rated Isolation Voltage (III/2) | 320 V |
| Rated impulse voltage (III/2) | 4 kV |
| Minimum creepage value - inhomogeneous range (III/2) | 3 mm |
| Minimum creepage value (III/2) | 1.6 mm |
| Rated Isolation Voltage (II/2) | 630 V |
| Rated Impulse Voltage (II/2) | 4 kV |
| Minimum creepage value - inhomogeneous range (II/2) | 3 mm |
| Minimum creepage value (II/2) | 3.2 mm |
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 3 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5 mm |
| Modular spacing connections (EF006827) | 5 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 16 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Type of electric connection (EF003961) | Screw connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material of contact surface (EF004020) | Tin |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Blue |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
