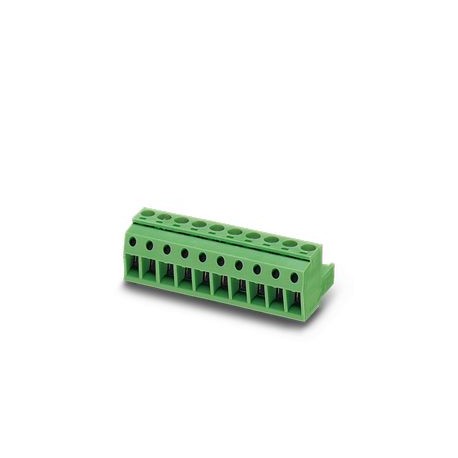

MSTBP 2,5/ 6-ST-5,08 BK AU 1575226 PHOENIX CONTACT Connector for printed circuit board, nominal section: 2.5..
MSTBP 2,5/ 6-ST-5,08 BK AU
1575226
PHOENIX_CONTACT
1000
Connector for printed circuit board, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Sn, contact connection type: Female, number of rows: 1, number of poles: 6, family of articles: MSTBP 2.5/.. -ST, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, conductor connection direction/printed circuit board: 0 °, clamping hook: - Clamping hook, plug-in system: COMBICON MSTB 2.5, locking: without, fixing type: without, packaging type: boxed
Printed circuit board connector
Male connector for I.C., nominal cross-section: 2.5 mm2, colour: black, nominal current: 12 A, reference voltage (III/2): 320 V, contact surface: Gold, contact type: Female connector, number of rows: 1, number of poles: 6, item range: MSTBP 2.5/.. -ST, pitch: 5.08 mm, connection type: Screwed connection with ring, screw driving surface: L Longitudinal slot, conductor/PCB plugging direction: 0°, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2.5, locking: without, fastening type: without, packaging type: packed in a carton
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Line | COMBICON Connectors M |
| Product Type | Conductive Plate Connector |
| Product range | MSTBP 2.5/.. -ST |
| Number of poles | 6 |
| Steps | 5.08 mm |
| Number of rows | 1 |
| Rated Current IN | 12 A |
| Rated voltage UN | 320 V |
| Degree of pollution | 3 |
| Contact resistance | 1.3 mΩ |
| Reference voltage (III/3) | 250 V |
| Rated Shock Resistance Voltage (III/3) | 4 kV |
| Rated Voltage (III/2) | 320 V |
| Rated Shock Withstand Voltage (III/2) | 4 kV |
| Reference voltage (II/2) | 630 V |
| Rated Shock Withstand Voltage (II/2) | 4 kV |
| Connection technology | |
| Type | Standard |
| Connector System | COMBICON MSTB 2,5 |
| Nominal cross-section | 2.5 mm² |
| Contact Type | Female connector |
| Locking | |
| Lock Mode | without |
| Mounting Flange | without |
| Conductor connection | |
| Connection type | Screwed connection with ring |
| Conductor/PCB Plugging Direction | 0 ° |
| Rigid conductor cross-section | 0.2 mm² ... 2.5 mm² |
| Soft conductor section | 0.2 mm² ... 2.5 mm² |
| Conductive section. AWG | 24 ... 12 |
| Soft conductor section with end cap, without plastic bushing | 0.25 mm² ... 2.5 mm² |
| Soft conductor section with plastic end cap and socket | 0.25 mm² ... 2.5 mm² |
| 2 rigid conductors of the same cross-section | 0.2 mm² ... 1 mm² |
| 2 flexible conductors of the same cross-section | 0.2 mm² ... 1.5 mm² |
| 2 conductors of the same cross-section, flexible with plastic sleeveless end cap | 0.25 mm² ... 1 mm² |
| 2 flexible conductors of the same cross-section with TWIN bit and plastic socket | 0.5 mm² ... 1.5 mm² |
| Template a x b / diameter | 2.8 mm x 2.0 mm / 2.4 mm |
| Stripping length | 7 mm |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Data for Bits Without Insulating Collar | |
| Recommended crimping tool | 1212034 CRIMPFOX 6 |
| Data for Bits with Insulating Collar | |
| Recommended crimping tool | 1212034 CRIMPFOX 6 |
| Material indication - contact | |
| Note | WEEE/RoHS compliant, trichite-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu Alloy |
| Surface quality | Tinned by hot dipping |
| Metal surface connection point (top layer) | Tin (5 - 7 μm Sn) |
| Metal surface, contact area (top layer) | Tin (5 - 7 μm Sn) |
| Material indication - housing | |
| Colors (Cases) | Black (9005) |
| Insulating material | PA |
| Insulation Group | I |
| CRI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| GWFI glow wire flammability class according to EN 60695-2-12 | 850 |
| GWIT glow wire ignition temperature according to EN 60695-2-13 | 775 |
| Ball pressure test temperature according to EN 60695-10-2 | 125 °C |
| Dimensioned drawing |  |
| Steps | 5.08 mm |
| Width [w] | 30.48 mm |
| Height [h] | 15 mm |
| Length [l] | 21.3 mm |
| Screw head drive shape | Longitudinal Slot (L) |
| Screw head drive shape | Longitudinal Slot (L) |
| Operating Information | MINICONNEC connectors are connectors without switching power (COC) in accordance with DIN EN 61984. When used correctly, they should not be plugged in or disconnected if they are under load or powered on. |
| Investigation of damage and loosening of conductors | |
| Control Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Successful test |
| Traction Control | |
| Control Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Conductor cross-section/conductor type/tractive force, nominal/actual | 0.2 mm² / rigid / > 10 N |
| 0.2 mm² / soft / > 10 N | |
| 2.5 mm² / rigid / > 50 N | |
| 2.5 mm² / soft / > 50 N | |
| Plug-in and Shrink Forces | |
| Result | Successful test |
| Number of cycles | 25 |
| Approx. mating force per pole | 8 N |
| Removal force per pole approx. | 6 N |
| Torque Control | |
| Control Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Resistance of inscriptions | |
| Control Specification | DIN EN 60068-2-70:1996-07 |
| Result | Successful test |
| Polarization and keying | |
| Control Specification | DIN EN 60512-13-5:2006-11 |
| Result | Successful test |
| Visual inspection | |
| Control Specification | DIN EN 60512-1-1:2003-01 |
| Result | Successful test |
| Dimension control | |
| Control Specification | DIN EN 60512-1-2:2003-01 |
| Result | Successful test |
| Vibration Resistance Test | |
| Control Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| Frequency | 10 - 150 - 10 Hz |
| Scan Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Scan Speed | 5g (60.1 Hz ... 150 Hz) |
| Inspection time per axis | 2.5 hrs |
| Lifetime test | |
| Control Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Shock Resistance Voltage at Sea Level | 4.8 kV |
| Passage resistance R1 | 1.3 mΩ |
| Passage resistance R2 | 1.4 mΩ |
| Number of mating cycles | 25 |
| Insulation resistance of neighboring poles | > 5 MΩ |
| Climate control | |
| Control Specification | DIN EN ISO 6988:1997-03 |
| Corrosion susceptibility | 0.2 dm3SO2about 300 dm3/40 °C/1 cycle |
| Heat sensitivity | 100 °C/168 h |
| Alternating current withstand voltage | 2.21 kV |
| Environmental conditions | |
| Ambient Temperature (Operating) | -40 °C ... 100 °C (depending on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Thermal Testing Test Group C | |
| Control Specification | DIN EN 60512-5-1:2003-01 |
| Number of poles tested | 12 |
| Insulation resistance | |
| Control Specification | DIN EN 60512-3-1:2003-01 |
| Insulation resistance of neighboring poles | > 5 MΩ |
| Air Distances and Trailing Lines | |
| Control Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulation Group | I |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | SIC 600 |
| Rated Insulation Voltage (III/3) | 250 V |
| Rated Shock Resistance Voltage (III/3) | 4 kV |
| minimum value of distance in air - non-homogeneous field (III/3) | 3 mm |
| minimum creepage value (III/3) | 3.2 mm |
| Rated Insulation Voltage (III/2) | 320 V |
| Rated Shock Voltage (III/2) | 4 kV |
| minimum value of distance in air - non-homogeneous field (III/2) | 3 mm |
| minimum creepage value (III/2) | 3 mm |
| Rated Insulation Voltage (II/2) | 630 V |
| Rated Shock Withstand Voltage (II/2) | 4 kV |
| minimum value of distance in air - non-homogeneous field (II/2) | 3 mm |
| minimum creepage value (II/2) | 3.2 mm |
| Type of packaging | packed in a carton |
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5.08 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Type of electric connection (EF003961) | Screw connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material of contact surface (EF004020) | Tin |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
