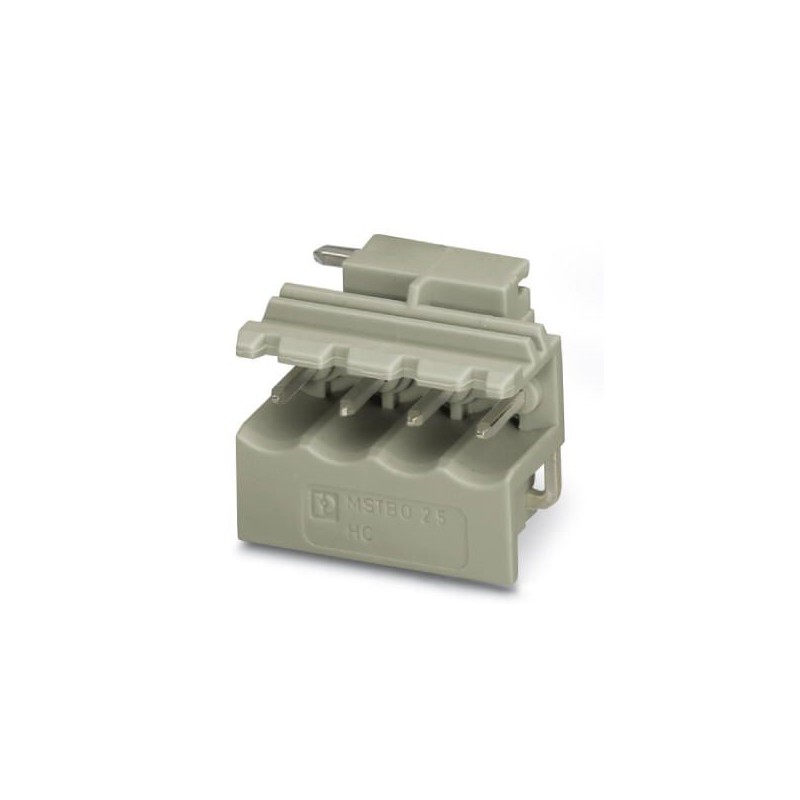

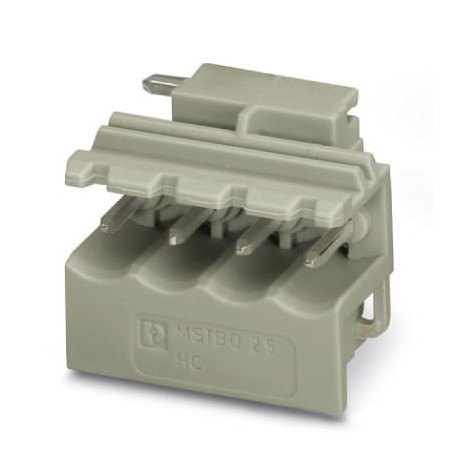

MSTBO 2,5/ 4-G1L LBGY 2909866 PHOENIX CONTACT Feed-through header
MSTBO 2,5/ 4-G1L LBGY
2909866
PHOENIX_CONTACT
200
Feed-through header
Printed circuit board base case, nominal section: 2.5 mm², color: beige, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Sn, contact connection type: Male, number of rows: 1, number of poles: 4, family of articles: MSTBO 2.5/.. -G1L, pitch: 5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, lock: without, packaging type: boxed packed, Item with side pin output on the left
Connectors > Printed circuit board connector
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2909866 |
|---|---|
| Packing unit | 200 pc |
| Minimum order quantity | 200 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918415525 |
| Weight per Piece (excluding packing) | 2.670 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440402eCl@ss 8.027440402eCl@ss 9.027440402
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5 mm |
| Modular spacing connections (EF006827) | 5 mm |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.4 mm |
| Length pin (EF006825) | 3.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of banding (EF007011) | Carton (for SMD) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
