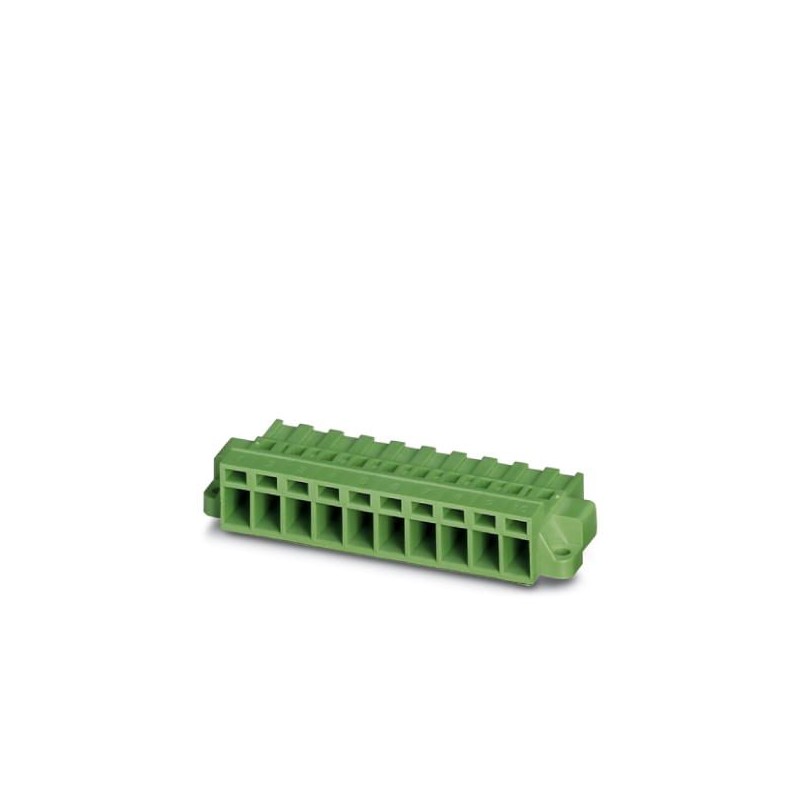

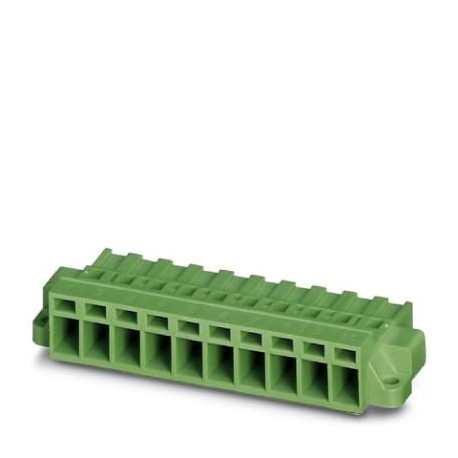

MSTBC 2,5/10-STZFD-5,08 1809352 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MSTBC 2,5/10-STZFD-5,08 1809352 PHOENIX CONTACT Printed-circuit board connector

MSTBC 2,5/10-STZFD-5,08

1809352

PHOENIX_CONTACT

50

Available Ship on today

New orders for this item will be processed from April 13

Printed-circuit board connector

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Quantity Price
50+$2.37
150+$2.06
300+$1.93
400+$1.89
550+$1.86
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Key Commercial Data

Orderkey1809352
Packing unit50 pc
NoteMade to Order (non-returnable)
GTIN4017918047498
Weight per Piece (excluding packing)6.320 g
Custom tariff number85472000
Country of originPL (Poland)

Dimensions

Length [ l ]25 mm
Width [ w ]60.45 mm
Height [ h ]10.7 mm
Pitch5.08 mm
Dimension a45.72 mm

General

Range of articlesMSTBC 2,5/..-STZFD
Number of positions10
Connection methodCrimp connection
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)320 V
Rated voltage (III/2)320 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Nominal cross section2.5 mm²
Maximum load current12 A (with a 2.5 mm² conductor cross section)
Insulating materialPA
Flammability rating according to UL 94V0

Connection data

Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.14
Minimum AWG according to UL/CUL20
Maximum AWG according to UL/CUL14

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications
