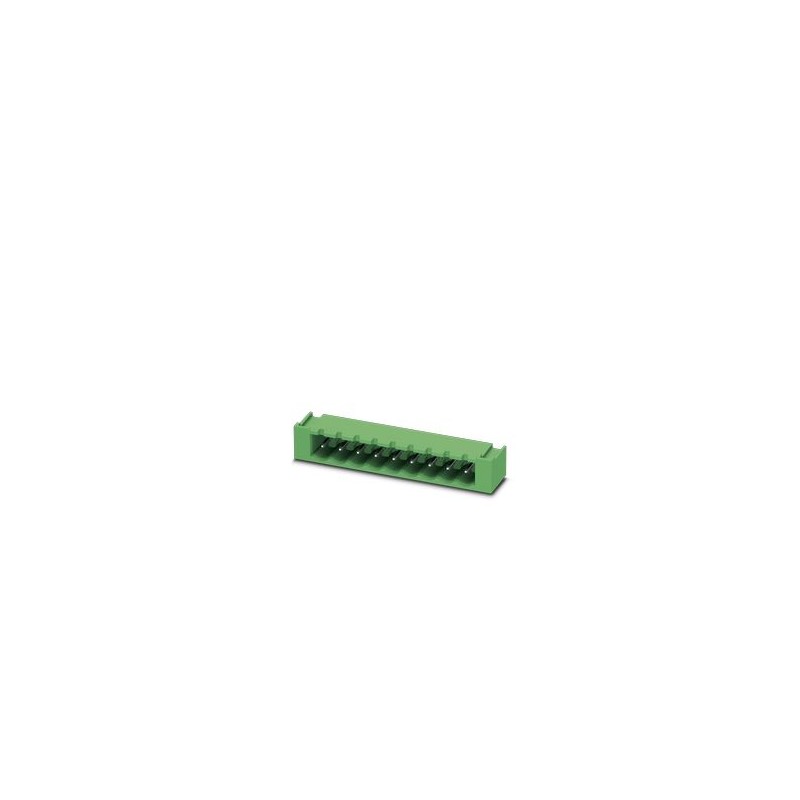

MSTBA 2,5/ 3-G-5,08-LR PA1,3 1540179 PHOENIX CONTACT Printed circuit board base housing, nominal section: 2...
MSTBA 2,5/ 3-G-5,08-LR PA1,3
1540179
PHOENIX_CONTACT
1000
Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Sn, contact connection type: Male, number of rows: 1, number of poles: 3, family of articles: MSTBA 2.5/.. -G-LR, pitch: 5.08 mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: Snap-in lock, fixing type: Lock & Release, Packaging Type: Boxed Packaging
PCB base socket, nominal cross-section: 2.5 mm2, colour: green, rated current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: tin, contact connection type: plug, number of rows: 1, number of poles: 3, product series: MSTBA 2.5/.. -G-LR, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, pin length [P]: 3.23 mm, number of solder pins per potential: 1, plug system: COMBICON MSTB 2.5, Insertion pin orientation: Standard, locking: Snap locking, fixing type: Lock & Release, package type: packed in carton
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Line | COMBICON Connectors M |
| Product Type | Basic socket for printed circuit boards |
| Product Family | MSTBA 2.5/.. -G-LR |
| No. of poles | 3 |
| Step | 5.08 mm |
| Number of rows | 1 |
| Pin Layout | Linear Pinning |
| Number of Welding Pins per Potential | 1 |
| Rated Current IN | 12 A |
| Rated voltage UN | 320 V |
| Degree of pollution | 3 |
| Mass Resistivity | 1.3 mΩ |
| Sizing voltage (III/3) | 250 V |
| Sizing impulse voltage (III/3) | 4 kV |
| Sizing voltage (III/2) | 320 V |
| Sizing Impulse Voltage (III/2) | 4 kV |
| Sizing voltage (II/2) | 400 V |
| Sizing Impulse Voltage (II/2) | 4 kV |
| Mounting type | Wave Soldering |
| Pin Layout | Linear Pinning |
| Material information - contacts | |
| note | Complies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu Alloy |
| Surface Finish | Galvanic tin plating |
| Metal surface contact zone (surface layer) | Tin (3 - 5 μm Sn) |
| Metal surface contact area (middle layer) | Nickel (1 - 3 μm Ni) |
| Metal Surface Welding Area (Surface Layer) | Tin (3 - 5 μm Sn) |
| Metal Surface Weld Area (Middle Layer) | Nickel (1 - 3 μm Ni) |
| Material information - case | |
| Color (Case) | Green (6021) |
| Insulation material | PBT |
| Insulation Material Group | IIIa |
| CTI according to IEC 60112 | 225 |
| Combustibility class according to UL 94 | V0 |
| Note for Operation | According to DIN EN 61984, COMBICON connectors are switchable powerless (COC) connectors. For intended use, they must not be plugged in or disconnected when they are still energized or under load. |
| Dimensioned Drawing |  |
| Step | 5.08 mm |
| Width [w] | 25.4 mm |
| Height [h] | 11.8 mm |
| Length [l] | 12 mm |
| Installation Height | 8.57 mm |
| Weld Shank Length [P] | 3.23 mm |
| Shank sizes | 1 x 1 mm |
| Printed circuit board design | |
| Bore diameter | 1.4 mm |
| Visual inspection | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Test passed |
| Dimensional control | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Test passed |
| Resistance of lettering | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Test passed |
| Polarization and encoding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Test passed |
| Contact holder in use | |
| Test Specification | DIN EN 60512-15-1:2009-03 |
| Areas of application for contact holders Application >20 N | Test passed |
| Insertion/tensile force | |
| Result | Test passed |
| Number of cycles | 25 |
| Insertion force per pole approx. | 8 N |
| Tensile force per pole approx. | 11 N |
| Thermal Test | Control Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Number of poles tested | 24 |
| Insulation Resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Between Contiguous Poles | > 5 MΩ |
| Creepage and Creepage Distances | | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulation Material Group | IIIa |
| Resistance to surface currents (DIN EN 60112 (VDE 0303-11)) | CTI 225 |
| Rated insulation voltage (III/3) | 250 V |
| Rated impulse voltage (III/3) | 4 kV |
| Minimum clearance value - inhomogeneous range (III/3) | 3 mm |
| Minimum creepage value (III/3) | 4 mm |
| Rated Isolation Voltage (III/2) | 320 V |
| Rated impulse voltage (III/2) | 4 kV |
| Minimum creepage value - inhomogeneous range (III/2) | 3 mm |
| Minimum creepage value (III/2) | 3.2 mm |
| Rated Isolation Voltage (II/2) | 400 V |
| Rated Impulse Voltage (II/2) | 4 kV |
| Minimum creepage value - inhomogeneous range (II/2) | 3 mm |
| Minimum creepage value (II/2) | 4 mm |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Sweep Speed | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axle | 2.5 h |
| Electrical life control | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Vertical impulse tension above sea level | 4.8 kV |
| Mass Resistivity R1 | 1.3 mΩ |
| Mass Resistivity R2 | 1.3 mΩ |
| Manoeuvring cycles | 25 |
| Insulation Resistance Between Contiguous Poles | > 5 MΩ |
| Climate control | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Stress due to corrosion | 0.2 dm3KNOW2on 300 dm3/40 °C/1 cycle |
| Stress due to the effect of heat | 100 °C/168 h |
| Fixed AC voltage | 2.21 kV |
| Shock | |
| Test Specification | DIN EN 60068-2-27 (VDE 0468-2-27):2010-02 |
| Shock Form | Semi-sinusoidal |
| Acceleration | 30g |
| Shock Duration | 18 ms |
| Test Directions | X, Y and Z axis (pos. and neg.) |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 100 °C (depending on derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (transport and storage) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Packaging | Packed in carton |
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5.08 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.4 mm |
| Length pin (EF006825) | 3.23 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Engage (snap) |
| Type of banding (EF007011) | Carton (for SMD) |
