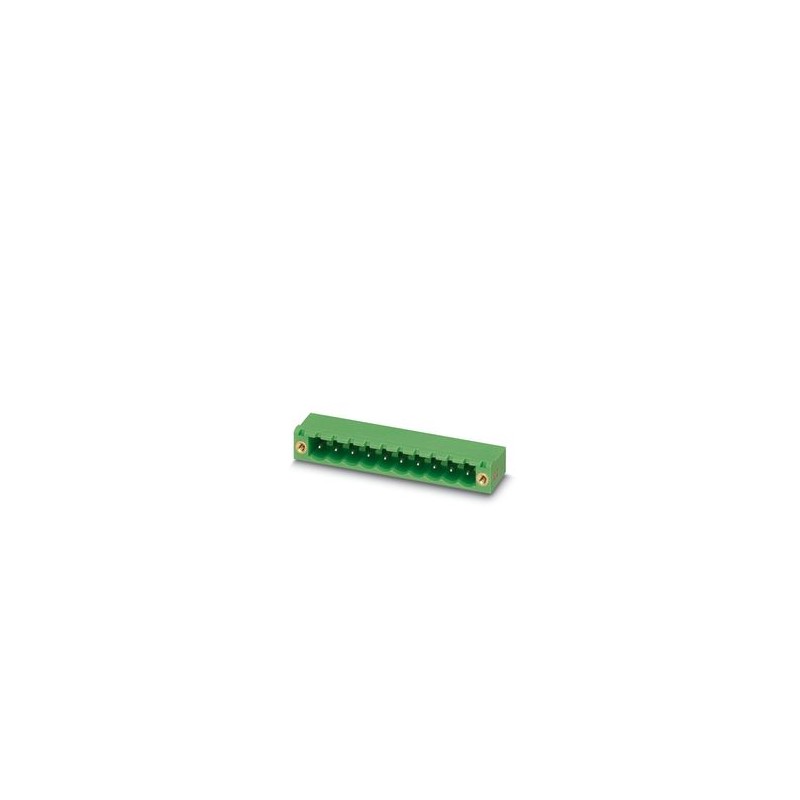

MSTB 2,5 HC/ 5-GF-5,08 CR2,4 1480252 PHOENIX CONTACT PCB base housing, nominal cross-section: 2.5 mm², colou..
MSTB 2,5 HC/ 5-GF-5,08 CR2,4
1480252
PHOENIX_CONTACT
1000
PCB base housing, nominal cross-section: 2.5 mm², colour: green, nominal current: 16 A (see rating curve), nominal voltage (III/2): 320 V, surface contacts: Tin, contact type: Male, number of rows: 1, number of poles: 5, article family: MSTB 2.5 HC/.. -GF, pitch: 5.08 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5 HC, Plug-in Face Orientation: Standard, Locking: Screw Locking, Fastening Type: Overhead Clamping (Thread), Packaging Type: Boxed
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲More info
▲Technical data
Item Properties
| Product Line | COMBICON Connectors M |
| Product Type | Printed circuit board base housing |
| Product Family | MSTB 2.5 HC/.. -GF |
| Number of poles | 5 |
| Step | 5.08 mm |
| Number of rows | 1 |
| Pin Design | Linear Pin Arrangement |
| Number of Solder Pins Per Potential | 1 |
Electrical Properties
| Nominal Current IN | 16 A (see rating curve) |
| Nominal voltage UN | 320 V |
| Degree of pollution | 3 |
| Contact resistance | 1 mΩ |
| Sizing voltage (III/3) | 320 V |
| Dimensioning transient voltage (III/3) | 4 kV |
| Dimensioning voltage (III/2) | 320 V |
| Dimensioning Transient Voltage (III/2) | 4 kV |
| Nominal voltage (II/2) | 630 V |
| Dimensioning transient voltage (II/2) | 4 kV |
assembly
| Type of mounting | Wave soldering |
| Pin Design | Linear Pin Arrangement |
| bridle | |
| Tightening torque | 0.3 Nm |
| Fixing on the printed circuit board | |
| Tightening torque | 0.3 Nm |
| Screw | ISO 1481-ST 2.2x6.5 C or ISO 7049-ST 2.2x6.5 C sheet metal screw |
Material Data
| Material data - contact | |
| Observation | WEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu Alloy |
| Surface Characteristics | Galvanically tinned |
| Metal surface contact area (top layer) | Tin (3 - 5 μm Sn) |
| Metal Surface Contact Area (Middle Layer) | Nickel (1.3 - 3 μm Ni) |
| Metal surface weld area (top layer) | Tin (3 - 5 μm Sn) |
| Metal Surface Welding Area (Middle Layer) | Nickel (1.3 - 3 μm Ni) |
| Material data - housing | |
| Color (Housing) | Green (6021) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Flammability number of GWFI incandescent filaments according to EN 60695-2-12 | 850 |
| Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13 | 775 |
| Ball hardness test temperature according to EN 60695-10-2 | 125 °C |
Notes
| Observation regarding the operation | According to DIN EN 61984, COMBICON connectors are connectors without switching power (COC). In the event of use as prescribed, they must not be plugged in or unplugged under voltage or load. |
Dimensions
| Dimension Scheme |  |
| Step | 5.08 mm |
| Width [w] | 35.56 mm |
| Height [h] | 11.8 mm |
| Length [l] | 12 mm |
| Overall Height | 8.57 mm |
| Weld Pin Length [P] | 3.23 mm |
| Temple Dimensions | 1 x 1 mm |
| Printed circuit board design | |
| Hole diameter | 1.4 mm |
Mechanical testing
| Eye Exam | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Approved Test |
| Dimensional Examination | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Approved Test |
| Resistance of the signs | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Approved Test |
| Polarization & Coding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Approved Test |
| Used contact holder | |
| Test Specification | DIN EN 60512-15-1:2009-03 |
| Contact Holder Used Requirement >20 N | Approved Test |
| Forces when plugging in and unplugging | |
| Result | Approved Test |
| Number of cycles | 50 |
| Plug-in force approx. | 6 N |
| Power when unplugging by pole approx. | 5 N |
Electrical Testing
| Thermal Test | Test Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Number of poles tested | 12 |
| Insulation resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Creepage Lines & Air Isolation Distances | | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulating material group | I |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Sizing Insulation Voltage (III/3) | 320 V |
| Nominal transient voltage (III/3) | 4 kV |
| minimum value of air insulation distance - non-homogeneous field (III/3) | 3 mm |
| Minimum creepage line value (III/3) | 4 mm |
| Sizing Insulation Voltage (III/2) | 320 V |
| Nominal transient voltage (III/2) | 4 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2) | 3 mm |
| Minimum creepage line value (III/2) | 3 mm |
| Sizing Insulation Voltage (II/2) | 630 V |
| Nominal transient voltage (II/2) | 4 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2) | 3 mm |
| Minimum creepage line value (II/2) | 3.2 mm |
Environmental and life-life conditions
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Sweep speed | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Durability Test | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Bearable shock voltage at sea level | 4.8 kV |
| Contact Resistance R1 | 1 mΩ |
| Contact Resistance R2 | 1 mΩ |
| Plug Cycles | 50 |
| Climate Essay | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Corrosion fatigue | 0.2 dm3UNDER2in 300 dm3/40 °C/1 cycle |
| Thermal stress | 100 °C/168 h |
| Bearable AC voltage | 2.21 kV |
| Crash | |
| Test Specification | DIN EN 60068-2-27 (VDE 0468-2-27):2010-02 |
| Shock Type | Semi-sinusoidal |
| Acceleration | 30g |
| Duration of the crash | 18 ms |
| Test Directions | X, Y, and Z axes (pos. and neg.) |
| Environmental conditions | |
| Ambient Temperature (Service) | -40 °C ... 100 °C (depending on the rating curve) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
Packaging Information
| Type of packaging | Boxed Packaging |
