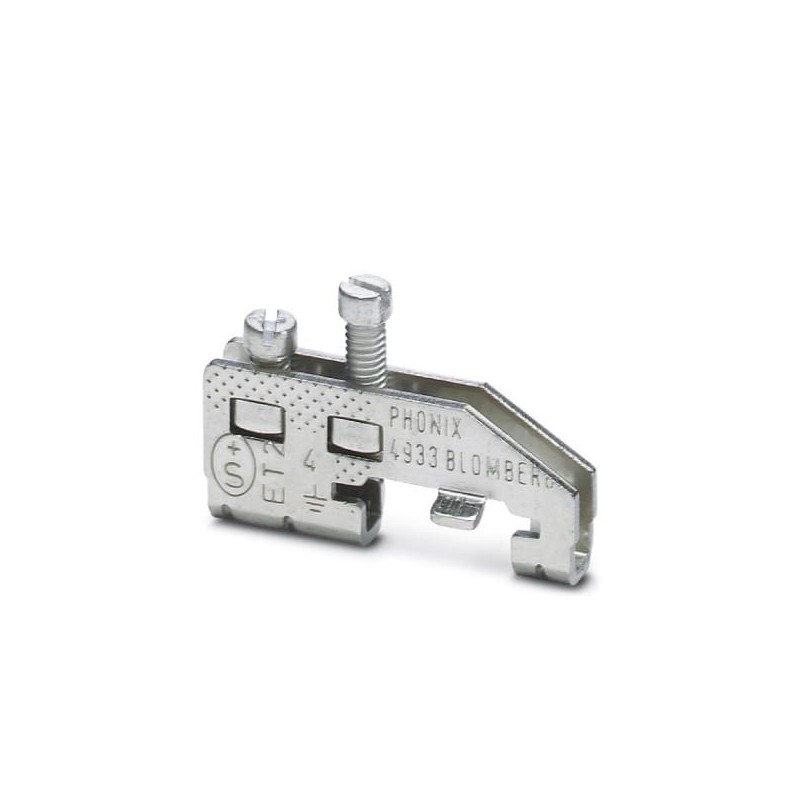

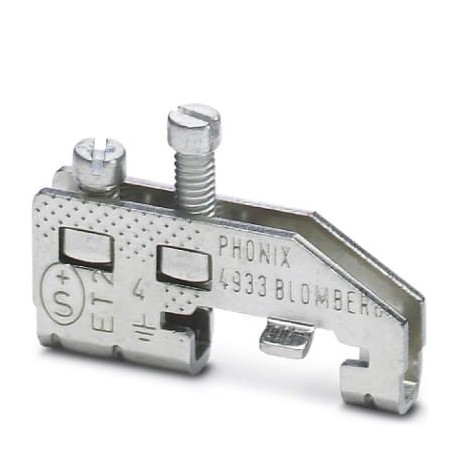

MSLK 4 1410013 PHOENIX CONTACT Ground modular terminal block
MSLK 4
1410013
PHOENIX_CONTACT
10
Ground modular terminal block
Ground terminal, number of connections: 1, connection type: Screw connection, cross-section: 0.2 mm² - 4 mm², mounting class: NS 15, color: silver
Terminal blocks > Ground terminal block
Modular TBs
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1410013 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| GTIN | 4017918021078 |
| Weight per Piece (excluding packing) | 6.330 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 1 |
| Nominal cross section | 2.5 mm² |
| Color | silver |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 5 kV |
| Maximum power dissipation for nominal condition | 0.77 W |
| Maximum load current | 34 A (with 4 mm² conductor cross section) |
| Open side panel | Yes |
Connection data
| Connection method | Screw connection |
|---|---|
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 4 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.2 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 2.5 mm² |
| Screw thread | M3 |
| Tightening torque, min | 0.6 Nm |
| Tightening torque max | 0.8 Nm |
Environmental Product Compliance
| REACh SVHC | 4-Nonylphenol, ethoxylated |
|---|---|
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141118eCl@ss 4.127141118eCl@ss 5.027141118eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141141eCl@ss 8.027141141eCl@ss 9.027141141
| Feature Name | Feature Value |
|---|---|
| PEN function possible (EF002544) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.2 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Type of electrical connection 1 (EF002526) | Screw connection |
| Type of electrical connection 2 (EF002527) | Screw connection |
| Number of clamp positions per level (EF002660) | 1 |
| Mounting method (EF000003) | DIN rail (top hat rail) 15 mm |
| Material insulation body (EF007543) | Other |
| Operating temperature (EF002393) | -60 °C |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Width (EF000008) | 5 mm |
| Height (EF000040) | 27.5 mm |
| Depth (EF000049) | 18 mm |
| Closing plate required (EF002525) | Yes |
| Colour (EF000007) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX TERMINAL BLOCKS EN.pdf | 69 Mbytes |
|
