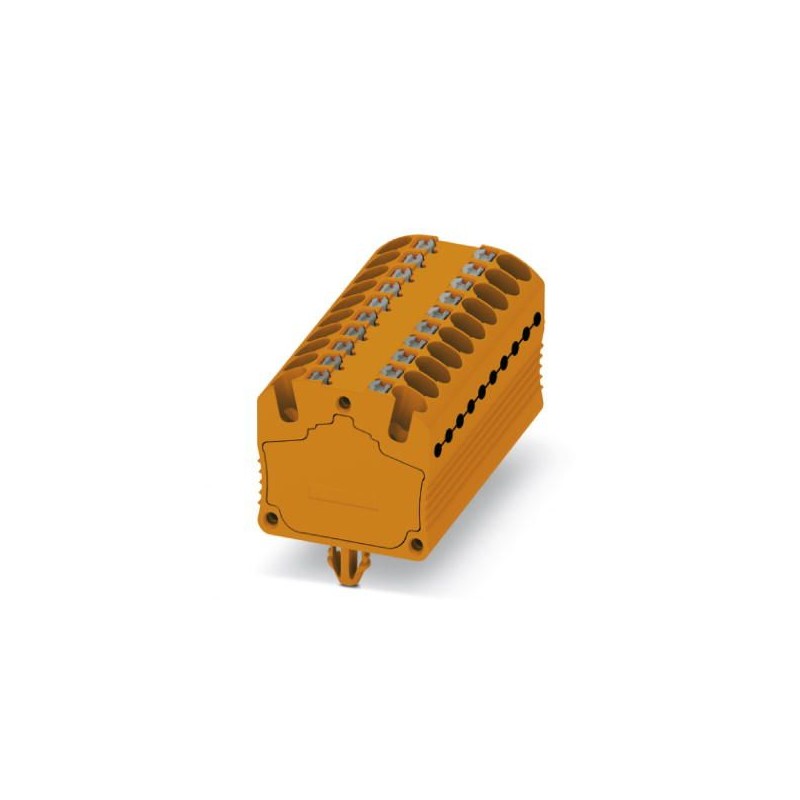

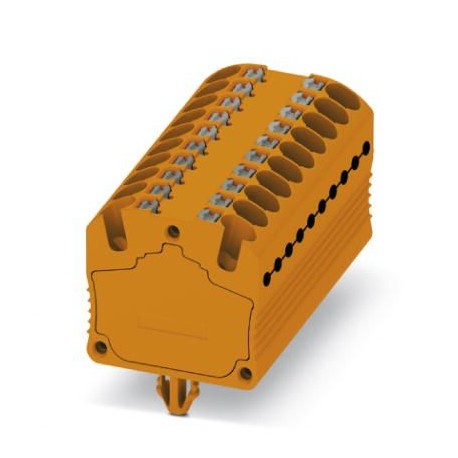

MP 20X1,5-RZ OG
3248436
PHOENIX_CONTACT
20
Microborne step, bridged internally, with safety pins for fixation, Type of connection: Connection push-in connection, Section: 0.14 mm2
Modular TBs
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Key order | Three million two hundred forty eight thousand four hundred thirty six |
---|---|
Packing unit | 20 pcs |
Key selling | BE2269 - |
Minimum order quantity | 20 pcs |
EAN | Four trillion fifty five billion six hundred twenty six million three hundred ten thousand ninety one |
Unit weight (excluding packaging) | 17,000 g |
Tariff number tariff | Eighty five million three hundred sixty nine thousand ten |
Country of origin | PL (Poland) |
Number of floors | One |
---|---|
Number of connections | Twenty |
Potential | One |
Nominal cross section | 1.5 mm2 |
Color | orange |
Isolation | PA |
Class of flammability according to UL 94 | V0 |
Transient voltage design | 6 kV |
Pollution degree | Three |
Category surge | III |
Group insulating material | I |
Power dissipated max with condition rated | 0,56 W |
Room temperature (service) | -60 °C ... 130 °C |
Maximum load current | 17,5 To |
Nominal current IN | 17,5 To |
Rated voltage UN | 500 V |
Side wall open | Not |
Specification of test protection against contact | DIN EN 50274 (VDE 0660-514):2002-11 |
Protection of the back of the hand | Guaranteed |
Safety against contact with the fingers | Guaranteed |
Output test voltage transient | Test approved |
Nominal value test voltage transient | 7,3 kV |
Result test ac voltage bearable | Test approved |
Nominal value ac voltage bearable | 1,89 kV |
Result of the verification of the mechanical resistance points of embornaje (connection of conductors quintuple) | Test approved |
Results test of flexibility | Test approved |
Bend test rotation speed | 10 r.p.m. |
Bend test revolutions | One hundred thirty five |
Bend test section of conductor/weight | 0.14 mmTwo/0,2 kg |
1.5 mmTwo/0.4 kg | |
Result. test traction | Test approved |
Pull-test section of the conductor | 0.14 mm2 |
Tensile strength nominal Value | 10 N |
Pull-test section of the conductor | 1.5 mm2 |
Tensile strength nominal Value | 40 N |
A result of the seat fixed in the fixing bracket | Test approved |
Seat fixed on the mounting surface | Mounting plate conductive |
Nominal value | 1 N |
Result of the verification of voltage drop | Test approved |
Requirement voltage Drop | ≤ 3,2 mV |
The result of the check of heating | Test approved |
Result. test corr. short-dur. | Test approved |
Current test short-term section of the conductor | 1.5 mm2 |
Current of short duration | 0,18 kA |
Result of thermal test | Test approved |
Essay of aging for terminal rail, without screws temperature cycles | One hundred ninety two |
Checking of thermal characteristics (called needle) time of action | 30 s |
Result test aging | Test approved |
Test outcome oscillation, broadband noise | Test approved |
Specification of test, oscillation, broadband noise | DIN EN 50155 (VDE 0115-200):2008-03 |
Spectrum test | Durability test category 2, bogie |
Frequency of testing | fOne= 5 Hz to fTwo= 250 Hz |
Level ASD | 6,12 (m/sTwo)Two/Hz |
Acceleration | 3.12 g |
Duration of test per axis | 5 h |
Address test | Axes X, y and Z |
Result crash test | Test approved |
Specification of test, crash test | DIN EN 50155 (VDE 0115-200):2008-03 |
Type of shock | Semisinusoide |
Acceleration | 30g |
Duration of the shock | 18 ms |
Number of shocks per direction | Three |
Address test | Axes X, y and Z (pos. and neg.) |
Temperature rating of the insulating material relative (Elec., UL 746 B) | 130 °C |
Temperature rating of the insulating material (DIN en 60216-1 (VDE 0304-21)) | 130 °C |
Use static insulating material in cold | -60 °C |
Width | 44,1 mm |
---|---|
Length | 20 mm |
Height | 22,1 mm |
Diameter hole | 3.5 mm |
Distance between holes | 37,7 mm |
Sheet thickness | 0.6 mm ... 1,5 mm |
Type of connection | Connection push-in |
---|---|
Connection according to standard | IEC 60947-7-1/IEC 60947-7-2 |
Core cross-section rigid min. | 0.14 mm2 |
Section of conductor rigid max. | 1.5 mm2 |
Section of conductor AWG min. | Twenty six |
Section of conductor AWG max. | Sixteen |
Section of flexible conductor, min. | 0.14 mm2 |
Section of flexible conductor max. | 1.5 mm2 |
Section of the flexible conductor AWG min. | Twenty six |
Section of the flexible conductor AWG max. | Sixteen |
Section of flexible conductor with toe cap, without plastic sleeve min. | 0.25 mm2 |
Section of flexible conductor with toe cap, without plastic sleeve max. | 1.5 mm2 |
Section of flexible conductor with toe, with plastic sleeve min. | 0.25 mm2 |
Section of flexible conductor with toe, with plastic sleeve max. | 1.5 mm2 |
Length of peeling | 8 mm ... 10 mm |
Gauge male | A1 / B1 |
Connection according to standard | IEC 60947-7-1/IEC 60947-7-2 |
---|---|
Class of flammability according to UL 94 | V0 |
China RoHS | Space of time for the intended use: unlimited = FEUP-e |
---|---|
No dangerous substances above the thresholds |
