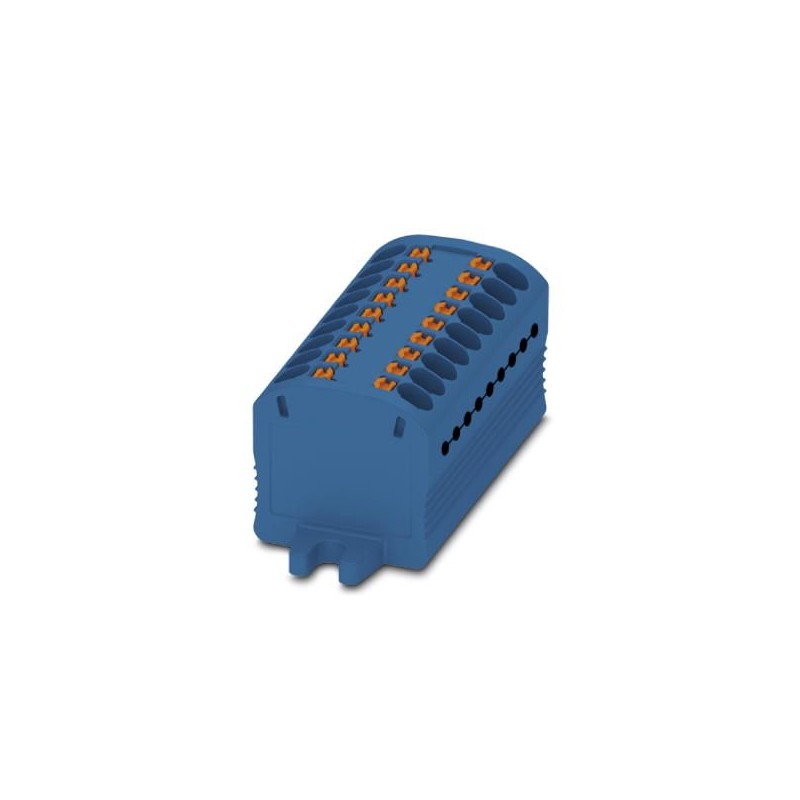

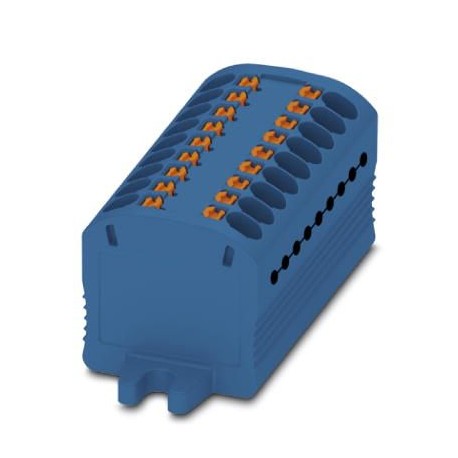

MP 18X1,5-F BU 3248288 PHOENIX CONTACT Microborne step, bridged internally, with threaded flange, connection..
MP 18X1,5-F BU
3248288
PHOENIX_CONTACT
20
Microborne step, bridged internally, with threaded flange, connection Type: Connection push-in connection, Section: 0.14 mm2
Modular TBs
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Data commercial
| Key order | Three million two hundred forty eight thousand two hundred eighty eight |
|---|---|
| Packing unit | 20 pcs |
| Key selling | BE2265 - |
| Minimum order quantity | 20 pcs |
| EAN | Four trillion fifty five billion six hundred twenty six million two hundred fifty two thousand seven hundred thirty five |
| Unit weight (excluding packaging) | 99,990 g |
| Tariff number tariff | Eighty five million three hundred sixty nine thousand ten |
| Country of origin | PL (Poland) |
Overview
| Number of floors | One |
|---|---|
| Number of connections | Eighteen |
| Potential | One |
| Nominal cross section | 1.5 mm2 |
| Color | blue |
| Isolation | PA |
| Class of flammability according to UL 94 | V0 |
| Transient voltage design | 6 kV |
| Pollution degree | Three |
| Category surge | III |
| Group insulating material | I |
| Power dissipated max with condition rated | 0,56 W |
| Room temperature (service) | -60 °C ... 130 °C |
| Maximum load current | 17,5 To |
| Nominal current IN | 17,5 To |
| Rated voltage UN | 500 V |
| Side wall open | Not |
| Specification of test protection against contact | DIN EN 50274 (VDE 0660-514):2002-11 |
| Protection of the back of the hand | Guaranteed |
| Safety against contact with the fingers | Guaranteed |
| Output test voltage transient | Test approved |
| Nominal value test voltage transient | 7,3 kV |
| Result test ac voltage bearable | Test approved |
| Nominal value ac voltage bearable | 1,89 kV |
| Result of the verification of the mechanical resistance points of embornaje (connection of conductors quintuple) | Test approved |
| Results test of flexibility | Test approved |
| Bend test rotation speed | 10 r.p.m. |
| Bend test revolutions | One hundred thirty five |
| Bend test section of conductor/weight | 0.14 mmTwo/0,2 kg |
| 1.5 mmTwo/0.4 kg | |
| Result. test traction | Test approved |
| Pull-test section of the conductor | 0.14 mm2 |
| Tensile strength nominal Value | 10 N |
| Pull-test section of the conductor | 1.5 mm2 |
| Tensile strength nominal Value | 40 N |
| A result of the seat fixed in the fixing bracket | Test approved |
| Seat fixed on the mounting surface | NS 15 |
| Nominal value | 1 N |
| Result of the verification of voltage drop | Test approved |
| Requirement voltage Drop | ≤ 3,2 mV |
| The result of the check of heating | Test approved |
| Result. test corr. short-dur. | Test approved |
| Current test short-term section of the conductor | 1.5 mm2 |
| Current of short duration | 0,18 kA |
| Result of thermal test | Test approved |
| Essay of aging for terminal rail, without screws temperature cycles | One hundred ninety two |
| Checking of thermal characteristics (called needle) time of action | 30 s |
| Result test aging | Test approved |
| Test outcome oscillation, broadband noise | Test approved |
| Specification of test, oscillation, broadband noise | DIN EN 50155 (VDE 0115-200):2008-03 |
| Spectrum test | Durability test category 2, bogie |
| Frequency of testing | fOne= 5 Hz to fTwo= 250 Hz |
| Level ASD | 6,12 (m/sTwo)Two/Hz |
| Acceleration | 3.12 g |
| Duration of test per axis | 5 h |
| Address test | Axes X, y and Z |
| Result crash test | Test approved |
| Specification of test, crash test | DIN EN 50155 (VDE 0115-200):2008-03 |
| Type of shock | Semisinusoide |
| Acceleration | 30g |
| Duration of the shock | 18 ms |
| Number of shocks per direction | Three |
| Address test | Axes X, y and Z (pos. and neg.) |
| Temperature rating of the insulating material relative (Elec., UL 746 B) | 130 °C |
| Temperature rating of the insulating material (DIN en 60216-1 (VDE 0304-21)) | 130 °C |
| Use static insulating material in cold | -60 °C |
| Reaction to fire for vehicles on rails (DIN 5510-2) | Test approved |
| Test procedure with a flame test (DIN en 60695-11-10) | V0 |
| Oxygen index (en ISO 4589-2) | >32 % |
| NF F16-101, NF F10-102 class I | Two |
| NF F16-101, NF F10-102 class F | Two |
| Flammability of the surfaces to NFPA 130 (ASTM E 162) | approved |
| Density of the combustion gases specific optical NFPA 130 (ASTM E 662) | approved |
| Toxicity of the combustion gases NFPA 130 (SMP 800C) | approved |
| Heat emission calorímetra NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Fire protection for vehicles on rails (DIN en 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for vehicles on rails (DIN en 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for vehicles on rails (DIN en 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for vehicles on rails (DIN en 45545-2) R26 | HL 1 - HL 3 |
Data connection
| Type of connection | Connection push-in |
|---|---|
| Connection according to standard | IEC 60947-7-1/IEC 60947-7-2 |
| Core cross-section rigid min. | 0.14 mm2 |
| Section of conductor rigid max. | 1.5 mm2 |
| Section of conductor AWG min. | Twenty six |
| Section of conductor AWG max. | Sixteen |
| Section of flexible conductor, min. | 0.14 mm2 |
| Section of flexible conductor max. | 1.5 mm2 |
| Section of the flexible conductor AWG min. | Twenty six |
| Section of the flexible conductor AWG max. | Sixteen |
| Section of flexible conductor with toe cap, without plastic sleeve min. | 0.25 mm2 |
| Section of flexible conductor with toe cap, without plastic sleeve max. | 1.5 mm2 |
| Section of flexible conductor with toe, with plastic sleeve min. | 0.25 mm2 |
| Section of flexible conductor with toe, with plastic sleeve max. | 1.5 mm2 |
| Length of peeling | 8 mm ... 10 mm |
| Gauge male | A1 / B1 |
Standards and specifications
| Connection according to standard | IEC 60947-7-1/IEC 60947-7-2 |
|---|---|
| Class of flammability according to UL 94 | V0 |
| Fire protection for vehicles on rails (DIN en 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for vehicles on rails (DIN en 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for vehicles on rails (DIN en 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for vehicles on rails (DIN en 45545-2) R26 | HL 1 - HL 3 |
Environmental Product Compliance
| China RoHS | Space of time for the intended use: unlimited = FEUP-e |
|---|---|
| No dangerous substances above the thresholds |
Ratings
eCl@ss 4.0Twenty seven million one hundred forty one thousand one hundred twentyeCl@ss 4.1Twenty seven million one hundred forty one thousand one hundred twentyeCl@ss 5.0Twenty seven million one hundred forty one thousand one hundred twentyeCl@ss 5.1Twenty seven million one hundred forty one thousand one hundredeCl@ss 6.0Twenty seven million one hundred forty one thousand one hundredeCl@ss 7.0Twenty seven million one hundred forty one thousand one hundred twentyeCl@ss 9.0Twenty seven million one hundred forty one thousand one hundred ninety
