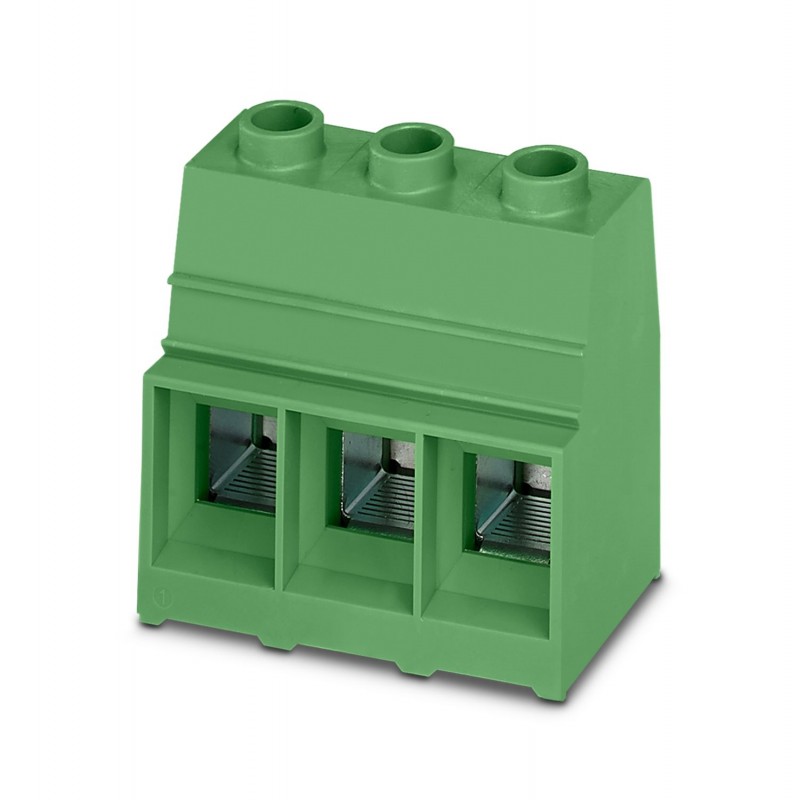

MKDSP 50/ 3-17,5 HEX5 1864969 PHOENIX CONTACT PCB terminal block, nominal current: 192 A, nom. voltage: 1000..
MKDSP 50/ 3-17,5 HEX5
1864969
PHOENIX_CONTACT
10
Product on demand only, returns will not be accepted.
PCB terminal block, nominal current: 192 A, nom. voltage: 1000 V, pitch: 17.5 mm, number of positions: 3, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green
Terminal block for printed circuit board, nominal current: 192 A, nominal voltage (III/2): 1000 V, nominal cross-section: 70 mm², number of potentials: 3, number of rows: 1, number of poles per row: 3, article family: MKDSP 50, pitch: 17.5 mm, connection type: Screw connection with traction capsule, screw clamping method: HEX5 Inner hexagon, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 4 mm, number of soldering pins per potential: 4, packaging type: boxed
Printed circuit board terminal, nominal current: 192 A, rated voltage (III/2): 1000 V, nominal cross section: 70 mm2, number of potentials: 3, number of rows: 1, number of positions per row: 3, product range: MKDSP 50, pitch: 17.5 mm, connection method: Screw connection with tension sleeve, screw head form: HEX5 Allen key, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 4 mm, number of solder pins per potential: 4, type of packaging: packed in cardboard
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product type | Printed circuit board terminal |
| Product family | MKDSP 50 |
| Product line | COMBICON Terminals XXL |
| Number of positions | 3 |
| Pitch | 17.5 mm |
| Number of connections | 3 |
| Number of rows | 1 |
| Number of potentials | 3 |
| Pin layout | Linear pinning |
| Solder pins per potential | 4 |
| Data management status | |
| Article revision | 00 |
| Nominal current IN | 192 A |
| Nominal voltage UN | 1000 V |
| Rated voltage (III/3) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| Rated voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
| Rated voltage (II/2) | 1000 V |
| Rated surge voltage (II/2) | 6 kV |
| Connection technology | |
| Type | Standard |
| Nominal cross section | 70 mm² |
| Conductor connection | |
| Connection method | Screw connection with tension sleeve |
| Conductor cross section rigid | 1.5 mm² ... 70 mm² |
| Single-conductor/terminal point multi-stranded | 1.5 mm² ... 70 mm² |
| Conductor cross section flexible | 1.5 mm² ... 70 mm² |
| Conductor cross section AWG | 16 ... 2/0 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 1.5 mm² ... 50 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 1.5 mm² ... 50 mm² |
| 2 conductors with same cross section, solid | 1.5 mm² ... 16 mm² |
| 2 conductors with the same cross section, stranded | 1.5 mm² ... 25 mm² |
| 2 conductors with same cross section, flexible | 1.5 mm² ... 25 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 1.5 mm² ... 16 mm² |
| Stripping length | 20 mm |
| Drive form screw head | Allen key (HEX5) |
| Tightening torque | 5.5 Nm |
| Information on the aluminum conductor | |
| Cross section / torque / form of conductor | Cable cross section:50 mm²; Torque:5.5 Nm; Form of cable:sector-shaped, single-strand, class 1, α = 90°(se) |
| Specification | DIN VDE 0276-603 (VDE 0276-603):2010-03 |
| Note on conductor pretreatment | The following measures are required for durable and reliable contacting of the aluminum conductor: the stripped end of the aluminum conductor must be separated from the oxide layer using a blade, and immediately dipped in non-acid and non-alkali Vaseline. The pretreatment must be repeated when connecting the conductors anew. |
| Mounting type | Wave soldering |
| Pin layout | Linear pinning |
| Material data - contact | |
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu alloy |
| Surface characteristics | Tin-plated |
| Metal surface terminal point (top layer) | Tin (4 - 8 µm Sn) |
| Metal surface soldering area (top layer) | Tin (4 - 8 µm Sn) |
| Material data - housing | |
| Color (Housing) | green (6021) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
| Dimensional drawing |  |
| Pitch | 17.5 mm |
| Width [w] | 55 mm |
| Height [h] | 59 mm |
| Length [l] | 32 mm |
| Installed height | 55 mm |
| Solder pin length [P] | 4 mm |
| Pin dimensions | 1.4 x 1.4 mm |
| PCB design | |
| Hole diameter | 2.4 mm |
| Test for conductor damage and slackening | |
| Specification | IEC 60999-1:1999-11 |
| Result | Test passed |
| Pull-out test | |
| Specification | IEC 60999-1:1999-11 |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 1.5 mm² / solid / > 40 N |
| 1.5 mm² / flexible / > 40 N | |
| 70 mm² / stranded / > 285 N | |
| 70 mm² / flexible / > 285 N | |
| 50 mm² / flexible with ferrule / > 236 N | |
| 1.5 mm² / flexible with ferrule / > 40 N | |
| Temperature-rise test | |
| Specification | IEC 60947-7-4:2013-08 |
| Requirement temperature-rise test | The sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature. |
| Short-time withstand current | |
| Specification | IEC 60947-7-4:2013-08 |
| Insulation resistance | |
| Specification | IEC 60512-3-1:2002-02 |
| Insulation resistance, neighboring positions | > 5 MΩ |
| Air clearances and creepage distances | |
| Specification | IEC 60664-1:2007-04 |
| Insulating material group | I |
| Comparative tracking index (IEC 60112) | CTI 600 |
| Rated insulation voltage (III/3) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| minimum clearance value - non-homogenous field (III/3) | 8 mm |
| minimum creepage distance (III/3) | 12.5 mm |
| Rated insulation voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
| minimum clearance value - non-homogenous field (III/2) | 8 mm |
| minimum creepage distance (III/2) | 8 mm |
| Rated insulation voltage (II/2) | 1000 V |
| Rated surge voltage (II/2) | 6 kV |
| minimum clearance value - non-homogenous field (II/2) | 5.5 mm |
| minimum creepage distance (II/2) | 5.5 mm |
| Vibration test | |
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
| Glow-wire test | |
| Specification | IEC 60695-2-10:2000-10 |
| Temperature | 850 °C |
| Time of exposure | 5 s |
| Aging | |
| Specification | IEC 60947-7-4:2013-08 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 100 °C (Depending on the current carrying capacity/derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Type of packaging | packed in cardboard |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 59 mm |
| Number of electrical connections (EF008252) | 3 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 17.5 mm |
| Rated current In (EF008250) | 192 A |
| Rated voltage (EF000228) | 1000 V |
| Rated surge voltage (EF002993) | 8 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Screw connection |
| Connectable conductor cross section solid-core (EF007337) | 1.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 1.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 1.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 1.5 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 2.4 mm |
| Length pin (EF006825) | 4 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of banding (EF007011) | Carton (for SMD) |
