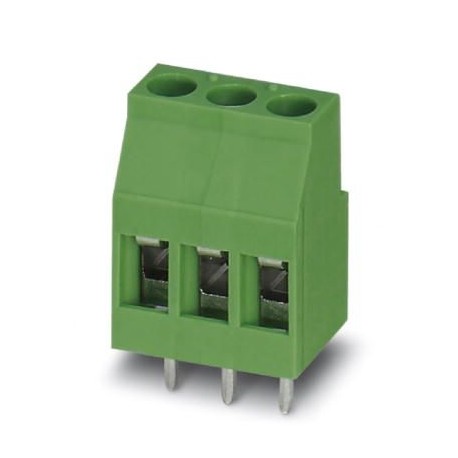

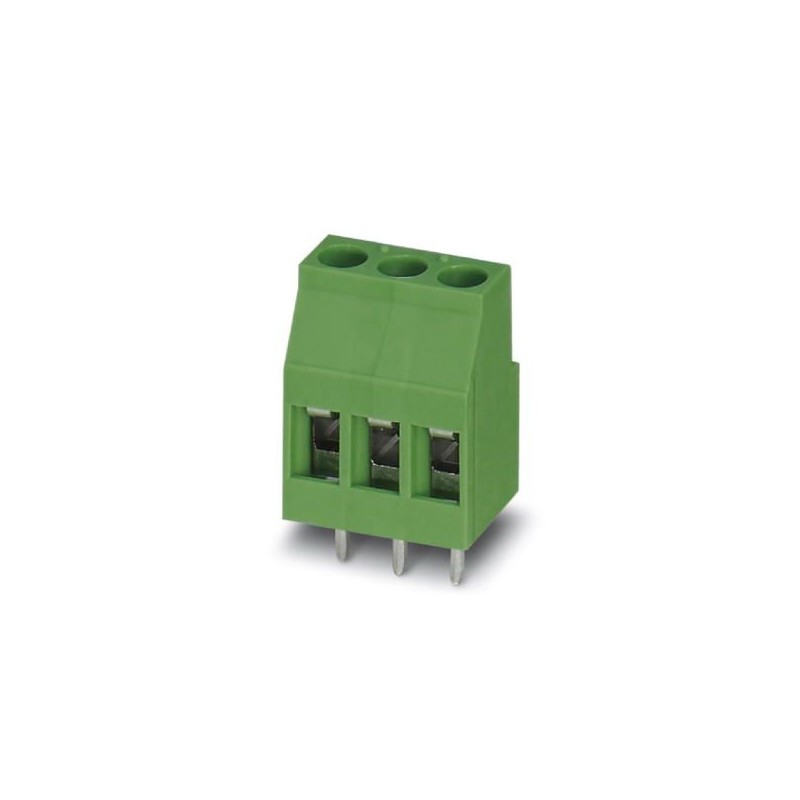

MKDSP 3/ 4
1714133
PHOENIX_CONTACT
50
PCB terminal block
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1714133 |
---|---|
Packing unit | 50 pc |
Minimum order quantity | 50 pc |
Note | Made to Order (non-returnable) |
GTIN | 4017918240257 |
Weight per Piece (excluding packing) | 8.060 g |
Custom tariff number | 85369010 |
Country of origin | DE (Germany) |
Length [ l ] | 12.8 mm |
---|---|
Pitch | 5 mm |
Dimension a | 15 mm |
Width [ w ] | 20 mm |
Height | 18 mm |
Height [ h ] | 23 mm |
Solder pin [P] | 5 mm |
Hole diameter | 1.3 mm |
Range of articles | MKDSP 3 |
---|---|
Rated surge voltage (III/3) | 4 kV |
Rated surge voltage (III/2) | 4 kV |
Rated surge voltage (II/2) | 4 kV |
Rated voltage (III/3) | 250 V |
Rated voltage (III/2) | 400 V |
Rated voltage (II/2) | 630 V |
Connection in acc. with standard | EN-VDE |
Nominal current IN | 24 A |
Nominal cross section | 2.5 mm² |
Maximum load current | 28 A (with 4 mm² conductor cross section) |
Insulating material | PA |
Solder pin surface | |
Flammability rating according to UL 94 | V0 |
Internal cylindrical gage | A3 |
Stripping length | 8 mm |
Number of positions | 4 |
Screw thread | M3 |
Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm |
Conductor cross section solid min. | 0.2 mm² |
---|---|
Conductor cross section solid max. | 4 mm² |
Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.25 mm² |
Conductor cross section flexible, with ferrule without plastic sleeve max. | 2.5 mm² |
Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.25 mm² |
Conductor cross section flexible, with ferrule with plastic sleeve max. | 2.5 mm² |
Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 12 |
2 conductors with same cross section, solid min. | 0.2 mm² |
2 conductors with same cross section, solid max. | 1.5 mm² |
2 conductors with same cross section, stranded min. | 0.2 mm² |
2 conductors with same cross section, stranded max. | 1.5 mm² |
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 0.25 mm² |
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 0.75 mm² |
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 0.5 mm² |
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 1.5 mm² |
Connection in acc. with standard | EN-VDE |
---|---|
CSA | |
Flammability rating according to UL 94 | V0 |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
