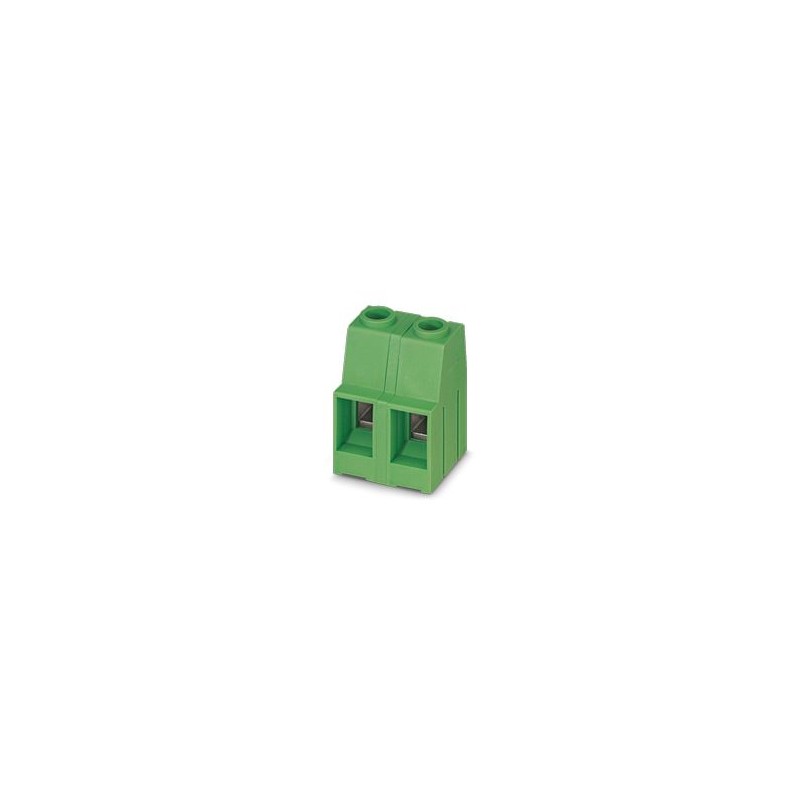

MKDSP 10 HV/ 2-12,7 T20L

1517224

PHOENIX_CONTACT

1000

PCB terminal, rated current: 76 A, rated voltage (III/2): 1000 V, rated cross-section: 16 mm², number of rows: 1, number of poles per row: 2, item family: MKDSP 10HV, pitch: 12.7 mm, connection type: Screw connection with pull capsule, screw clamping way: T20L Torx® with longitudinal groove, Mounting: Wave Soldering, Conductor/PCB Connection Direction: 0°, Color: Green, Pin Arrangement: Linear Pin Arrangement, Pin Length [P]: 5mm, Number of Solder Pins by Potential: 2, Packing Type: Boxed Packaging

PCB terminal block, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm2, number of rows: 1, number of positions per row: 2, product range: MKDSP 10HV, pitch: 12.7 mm, connection method: Screw connection with tension sleeve, screw head form: T20L Slotted Torx®, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total price: $4,943.13
Unit price: $4.94

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Viewed products


Related products

▲

More info

▲


Technical data
Product properties
Product lineCOMBICON Terminals L
Product typePrinted circuit board terminal
Product familyMKDSP 10HV
Number of positions2
Pitch12.7 mm
Number of rows1
Pin layoutLinear pinning
Solder pins per potential2
Electrical properties
Nominal current IN76 A
Nominal voltage UN1000 V
Degree of pollution3
Rated voltage (III/3)1000 V
Rated surge voltage (III/3)8 kV
Rated voltage (III/2)1000 V
Rated surge voltage (III/2)8 kV
Rated voltage (II/2)1000 V
Rated surge voltage (II/2)6 kV
Connection data
Connection technology
TypePC terminal block can be aligned
Nominal cross section16 mm²
Conductor connection
Connection methodScrew connection with tension sleeve
Conductor cross section rigid0.5 mm² ... 16 mm²
Conductor cross section flexible0.5 mm² ... 16 mm²
Conductor cross section AWG20 ... 6
Conductor cross section flexible, with ferrule without plastic sleeve0.5 mm² ... 16 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.5 mm² ... 16 mm²
2 conductors with same cross section, solid0.5 mm² ... 4 mm²
2 conductors with same cross section, flexible0.5 mm² ... 4 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.5 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 6 mm²
Stripping length10 mm
Tightening torque1.2 Nm ... 1.5 Nm
Mounting
Mounting typeWave soldering
Pin layoutLinear pinning
Drive form screw headSlotted Torx®(T20L)
Drive form screw headSlotted Torx®(T20L)
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface terminal point (top layer)Tin (5 - 7 µm Sn)
Metal surface terminal point (middle layer)Nickel (2 - 3 µm Ni)
Metal surface soldering area (top layer)Tin (5 - 7 µm Sn)
Metal surface soldering area (middle layer)Nickel (2 - 3 µm Ni)
Material data - housing
Color (Housing)green (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Dimensions
Dimensional drawinggklwlyybhu.jpg
Pitch12.7 mm
Width [w]22.86 mm
Height [h]35.8 mm
Length [l]22 mm
Installed height30.8 mm
Solder pin length [P]5 mm
Pin dimensions1 x 0.9 mm
PCB design
Hole diameter1.5 mm
Mechanical tests
Test for conductor damage and slackening
SpecificationIEC 60998-2-1:1990-04
ResultTest passed
Pull-out test
SpecificationIEC 60998-2-1:1990-04
Conductor cross section/conductor type/tractive force setpoint/actual value0.5 mm² / solid / > 30 N
0.5 mm² / flexible / > 30 N
16 mm² / solid / > 100 N
10 mm² / flexible / > 90 N
Torque test
SpecificationIEC 60998-2-1:1990-04
Electrical tests
Temperature-rise test
SpecificationIEC 60998-2-1:1990-04
Requirement temperature-rise testIncrease in temperature ≤ 45 K
Insulation resistance
SpecificationIEC 60998-2-1:1990-04
Insulation resistance, neighboring positions109Ω
Air clearances and creepage distances |
SpecificationIEC 60664-1:2007-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)1000 V
Rated surge voltage (III/3)8 kV
minimum clearance value - non-homogenous field (III/3)8 mm
minimum creepage distance (III/3)12.5 mm
Rated insulation voltage (III/2)1000 V
Rated surge voltage (III/2)8 kV
minimum clearance value - non-homogenous field (III/2)8 mm
minimum creepage distance (III/2)8 mm
Rated insulation voltage (II/2)1000 V
Rated surge voltage (II/2)6 kV
minimum clearance value - non-homogenous field (II/2)5.5 mm
minimum creepage distance (II/2)5.5 mm
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:1995-03
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Sweep speed5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Glow-wire test
SpecificationIEC 60998-2-1:1990-04
Temperature850 °C
Time of exposure5 s
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (Depending on the current carrying capacity/derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 15 Mbytes
