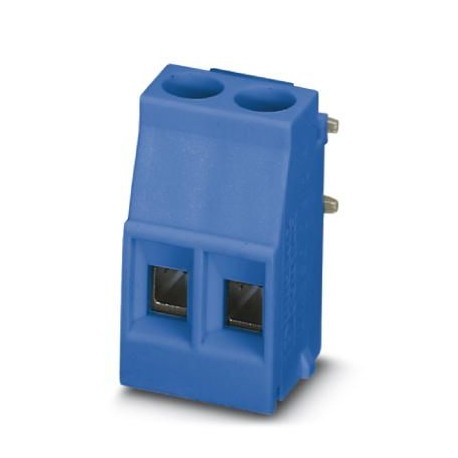

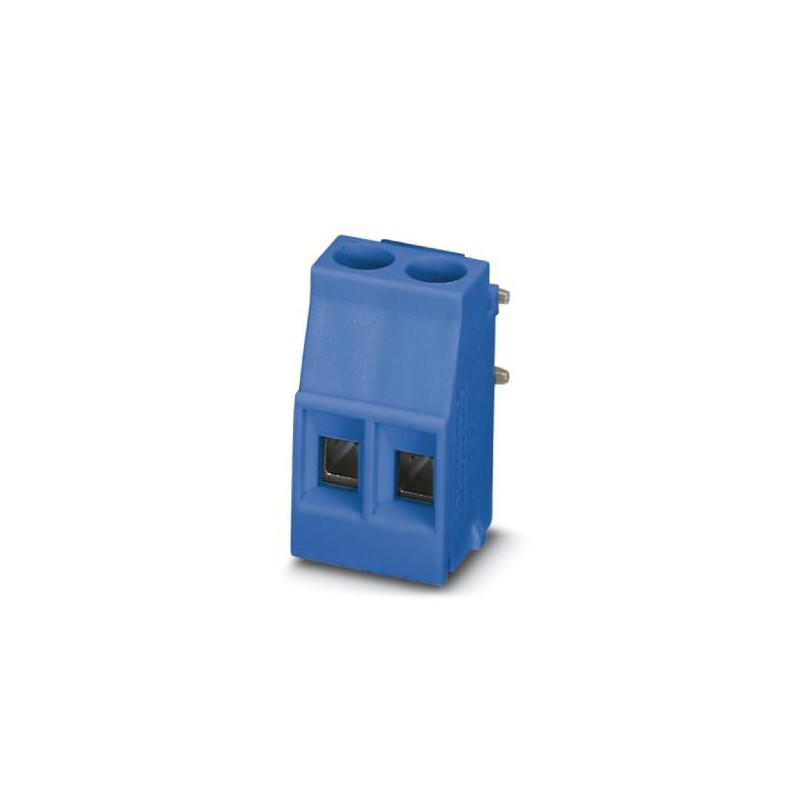

MKDSO 2,5/ 2-R BU 2901518 PHOENIX CONTACT PCB terminal block
MKDSO 2,5/ 2-R BU
2901518
PHOENIX_CONTACT
200
PCB terminal block
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2901518 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 200 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356143981 |
| Weight per Piece (excluding packing) | 3.980 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261100eCl@ss 6.027261100eCl@ss 7.027440401eCl@ss 8.027440401eCl@ss 9.027440401
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 18.05 mm |
| Number of electrical connections (EF008252) | 2 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 5 mm |
| Rated current In (EF008250) | 24 A |
| Rated voltage (EF000228) | 400 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Screw connection |
| Connectable conductor cross section solid-core (EF007337) | 0.14 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.14 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.14 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.4 mm |
| Length pin (EF006825) | 3.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Blue |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
