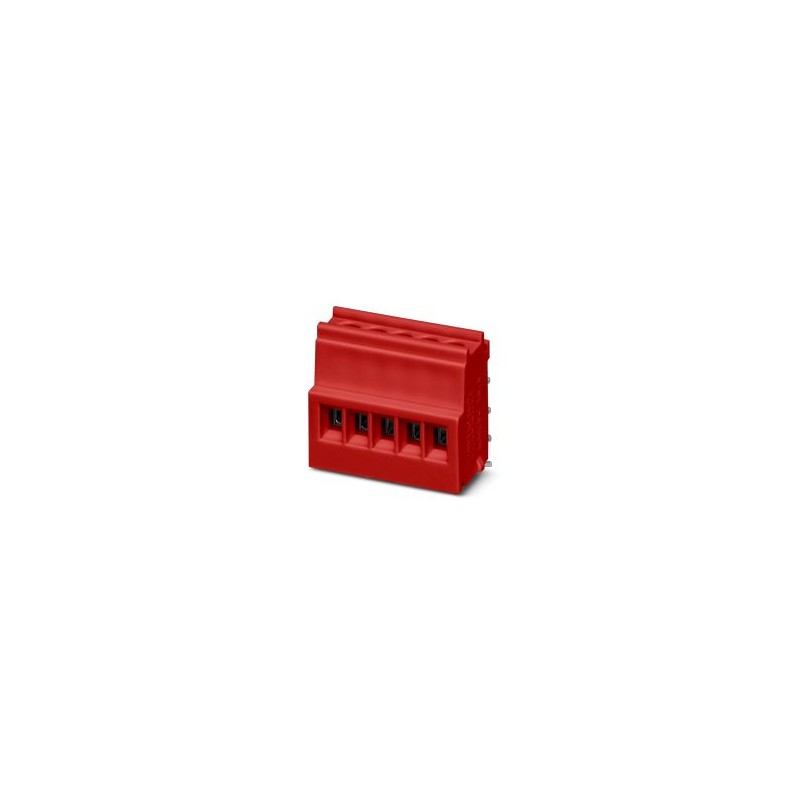

MKDSO 1,5/ 5-R-3,5 RD 1148839 PHOENIX CONTACT PCB terminal, rated current: 8 A, rated voltage (III/2): 160 V..
MKDSO 1,5/ 5-R-3,5 RD
1148839
PHOENIX_CONTACT
500
PCB terminal, rated current: 8 A, rated voltage (III/2): 160 V, rated cross-section: 1.5 mm², number of potentials: 5, number of rows: 1, number of poles per row: 5, article family: MKDSO 1.5/.. -R, pitch: 3.5mm, connection type: Screw connection with pull capsule, mounting: Wave soldering, conductor/PCB connection direction: 0°, color: red, Pin arrangement: Linear pin arrangement, Pin length [P]: 2.3mm, number of solder pins per potential: 1, packing type: boxed packaging. Item with right-hand side pin outlet
PCB terminal block, rated current: 8 A, dimensioning voltage (III/2): 160 V, nominal cross-section: 1.5 mm2, number of potentials: 5, number of rows: 1, number of poles per row: 5, product series: MKDSO 1.5/.. -R, pitch: 3.5mm, connection type: Screw connection with cage, mounting: Wave soldering, conductor/board connection direction: 0°, color: red, Pin layout: Linear pinning, Pin length [P]: 2.3mm, number of solder pins per potential: 1, Package type: packed in the carton. Item with right side pin output
Connectors > Printed circuit board terminal
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| type | PCB terminal block vertical to c.s. |
| Product Type | PCB terminal block |
| Product Family | MKDSO 1.5/.. -R |
| No. of poles | 5 |
| Step | 3.5 mm |
| Number of connections | 5 |
| Number of rows | 1 |
| Number of potentials | 5 |
| Pin Layout | Linear Pinning |
| Number of Welding Pins per Potential | 1 |
| Rated Current IN | 8 A |
| Rated voltage UN | 160 V |
| Degree of pollution | 3 |
| Sizing voltage (III/3) | 160 V |
| Sizing impulse voltage (III/3) | 2.5 kV |
| Sizing voltage (III/2) | 160 V |
| Sizing Impulse Voltage (III/2) | 2.5 kV |
| Sizing voltage (II/2) | 320 V |
| Sizing Impulse Voltage (II/2) | 2.5 kV |
| Connection technology | |
| Nominal cross-section | 1.5 mm² |
| Conductor connection | |
| Link | Screw connection with cage |
| Rigid conductor cross-section | 0.14 mm² ... 1.5 mm² |
| Flexible conductor cross-section | 0.14 mm² ... 1.5 mm² |
| Conductor cross-section AWG | 28 ... 16 |
| Flexible conductor cross-section with cable lug without plastic collar | 0.25 mm² ... 1.5 mm² |
| Flexible conductor cross-section with mounted lug and plastic collar | 0.25 mm² ... 0.5 mm² |
| 2 conductors of identical cross-section, rigid | 0.08 mm² ... 0.5 mm² |
| 2 conductors of identical flexible cross-section | 0.08 mm² ... 0.75 mm² |
| 2 conductors of the same flexible cross-section with ferrule without plastic collar | 0.25 mm² ... 0.34 mm² |
| 2 conductors of identical cross-section flexible with TWIN ferrule with plastic collar | 0.5 mm² ... 0.5 mm² |
| Buffer Gauge a x b / diameter | 2.4 mm x 1.5 mm / - |
| Length of the section to be stripped | 7 mm |
| Tightening torque | 0.22 Nm ... 0.25 Nm |
| Mounting type | Wave Soldering |
| Pin Layout | Linear Pinning |
| Link | Screw connection with cage |
| Material information - contacts | |
| note | Complies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu Alloy |
| Surface Finish | Galvanic tin plating |
| Metal Surface, Connection Point (Surface Layer) | Pond (Sn) |
| Material information - case | |
| Color (Case) | Red (3001) |
| Insulation material | PA |
| Insulation Material Group | The |
| CTI according to IEC 60112 | 600 |
| Combustibility class according to UL 94 | V0 |
| Flammability index of GWFI filament according to EN 60695-2-12 | 850 |
| GWIT filament ignition temperature according to EN 60695-2-13 | 775 |
| Brinell hardness test temperature according to EN 60695-10-2 | 125 °C |
| Dimensioned Drawing |  |
| Step | 3.5 mm |
| Width [w] | 20.95 mm |
| Height [h] | 21.25 mm |
| Length [l] | 15.3 mm |
| Weld Shank Length [P] | 2.3 mm |
| Shank sizes | 0.6 x 0.8 mm |
| Printed circuit board design | |
| Bore diameter | 1.2 mm |
| Conductor Integrity and Stability Test | |
| Test Specification | DIN EN 60998-2-1 (VDE 0613-2-1):2005-03 |
| Result | Test passed |
| Tensile test | |
| Test Specification | DIN EN 60998-2-1 (VDE 0613-2-1):2005-03 |
| Conductor cross-section/conductor type/tensile force nominal value/actual value | 0.14 mm² / rigid / > 10 N |
| 0.14 mm² / flexible / > 10 N | |
| 1.5 mm² / rigid / > 40 N | |
| 1.5 mm² / flexible / > 40 N | |
| Torque test | |
| Test Specification | DIN EN 60998-2-1 (VDE 0613-2-1):1994-04 |
| Ambient Temperature Test | |
| Test Specification | DIN EN 60998-1 (VDE 0613-1):2005-03 |
| Heating verification requirement | Temperature rise ≤ 45 K |
| Insulation Resistance | |
| Test Specification | DIN EN 60998-1 (VDE 0613-1):2005-03 |
| Insulation Resistance Between Contiguous Poles | > 50 GΩ |
| Creepage and Creepage Distances | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulation Material Group | The |
| Resistance to surface currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Rated insulation voltage (III/3) | 160 V |
| Rated impulse voltage (III/3) | 2.5 kV |
| Minimum clearance value - inhomogeneous range (III/3) | 1.5 mm |
| Minimum creepage value (III/3) | 2 mm |
| Rated Isolation Voltage (III/2) | 160 V |
| Rated impulse voltage (III/2) | 2.5 kV |
| Minimum creepage value - inhomogeneous range (III/2) | 1.5 mm |
| Minimum creepage value (III/2) | 0.8 mm |
| Rated Isolation Voltage (II/2) | 320 V |
| Rated Impulse Voltage (II/2) | 2.5 kV |
| Minimum creepage value - inhomogeneous range (II/2) | 1.5 mm |
| Minimum creepage value (II/2) | 1.6 mm |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6:1996-05 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Sweep Speed | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axle | 2.5 h |
| Glow Wire Test | |
| Test Specification | DIN EN 60998-1 (VDE 0613-1):2005-03 |
| Temperature | 850 °C |
| Duration of application | 5 s |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 105 °C (Depending on current flow curve/derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Relative humidity (transport and storage) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Packaging | Packed in carton |
