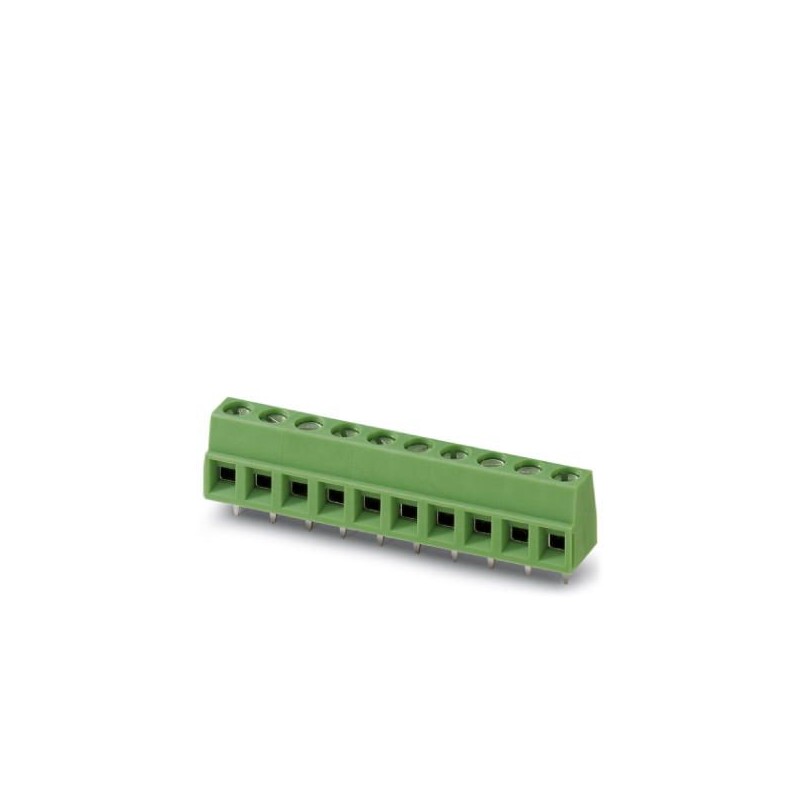

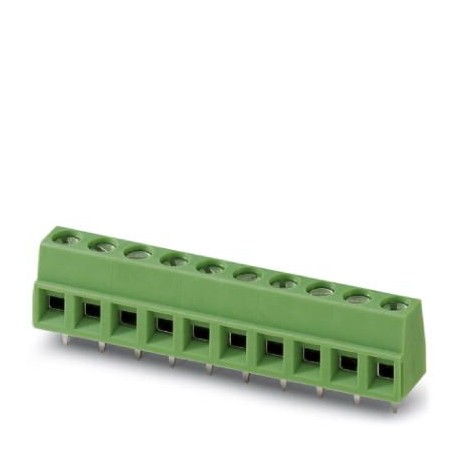

MKDSN 1,5/ 8 BK 1890235 PHOENIX CONTACT PCB terminal block
MKDSN 1,5/ 8 BK
1890235
PHOENIX_CONTACT
60
PCB terminal block
Terminal block for printed circuit board, nominal current: 13.5 A, nominal voltage (III/2): 400 V, nominal cross-section: 1.5 mm², number of rows: 1, number of poles per row: 8, article family: MKDSN 1.5, pitch: 5 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, conductor connection direction/printed circuit board: 0°, color: black, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 1, packaging type: boxed
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1890235 |
|---|---|
| Packing unit | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918391249 |
| Weight per Piece (excluding packing) | 6.660 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Dimensions for the product
| Length [ l ] | 8.1 mm |
|---|---|
| Width [ w ] | 40 mm |
| Height [ h ] | 13.5 mm |
| Pitch | 5 mm |
| Height (without solder pin) | 10 mm |
| Solder pin [P] | 3.5 mm |
| Pin spacing | 5 mm |
| Dimension a | 35 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 50 |
| Denomination packing units | Pcs. |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027141109eCl@ss 4.127141109eCl@ss 5.027141190eCl@ss 5.127261100eCl@ss 6.027261100eCl@ss 7.027440401eCl@ss 8.027440401eCl@ss 9.027440401
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
