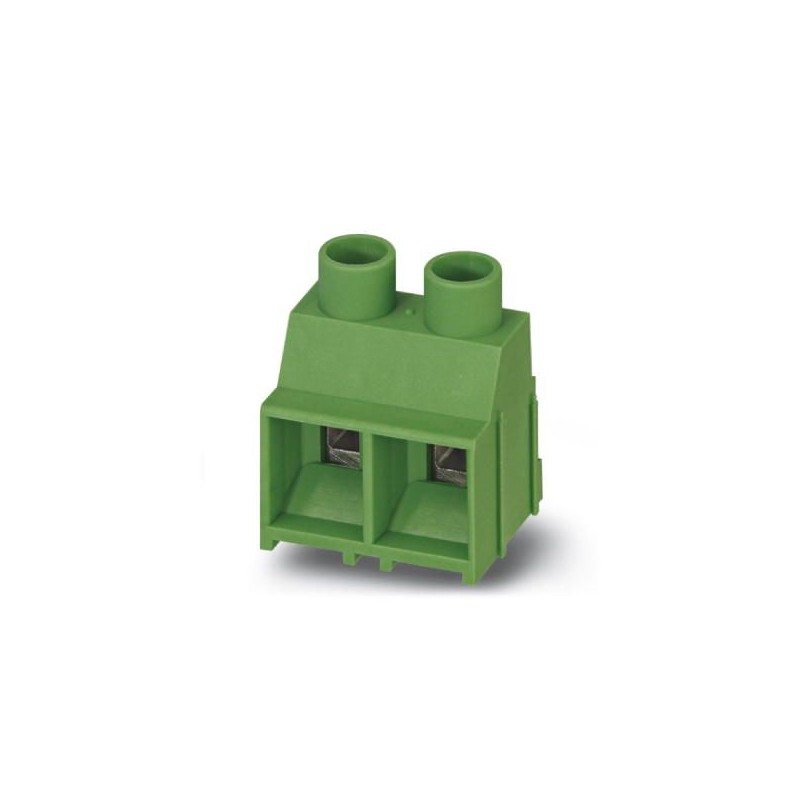

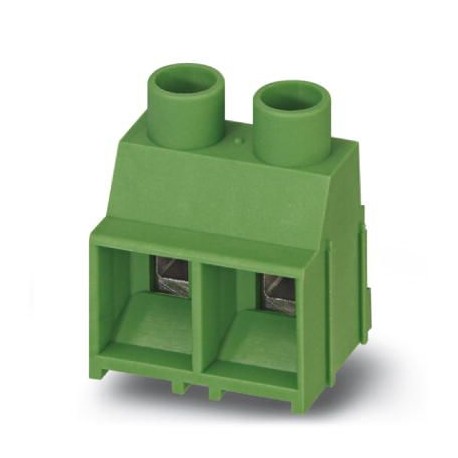

MKDS 5 HV/11-9,52-Z BK 1745577 PHOENIX CONTACT Terminal p. printed circuit board, nominal Current: 32 A, nom..
MKDS 5 HV/11-9,52-Z BK
1745577
PHOENIX_CONTACT
50
Terminal p. printed circuit board, nominal Current: 32 A, nominal Voltage: 1000 V, Pitch: 9,52 mm, Number of poles: 11, Type of connection: Connection by screw with capsule-traction, Assembly: Soldering by wave Direction for connection Conductor/pcb: 0 °, Color: black
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Data commercial
| Key order | One million seven hundred forty five thousand five hundred seventy seven |
|---|---|
| Packing unit | 50 pcs |
| Key selling | AABBAA - |
| Minimum order quantity | 50 pcs |
| EAN | Four trillion forty six billion three hundred fifty six million three hundred nine thousand three hundred eighty seven |
| Unit weight (excluding packaging) | 36,390 g |
| Tariff number tariff | Eighty five million three hundred sixty nine thousand ten |
Properties of the article
| Abbreviation | Terminal for printed circuit board |
|---|---|
| Family of articles | MKDS 5 HV |
| Step | 9,52 mm |
| Number of poles | Eleven |
| Type of connection | Connection by screw with capsule-traction |
| Screw thread | M3 |
| Mounting type | Wave soldering |
| Design of the pin | Pins in zig-zag M |
| Number of floors | One |
Characteristic data electrical
| Rated | 32 To |
|---|---|
| Voltage isolation design (III/2) | 1000 V |
| Transient voltage design (III/2) | 8 kV |
Ability conex.
| Section of conductor rigid | 0,2 mm2 ... 6 mm2 |
|---|---|
| Section of flexible conductor | 0,2 mm2 ... 4 mm2 |
| Section of conductor AWG / kcmil | 24 ... 10 |
| Section of flexible conductor with toe cap, without plastic sleeve | 0.25 mm2 ... 4 mm2 |
| Section of flexible conductor with toe, with padded insulation | 0.25 mm2 ... 4 mm2 |
| 2 conductors with same cross section, rigid | 0,2 mm2 ... 1.5 mm2 |
| 2 conductors with same cross section, flexible | 0,2 mm2 ... 1.5 mm2 |
| 2 conductors with same cross section, flexible with AEH without plastic sleeve | 0.25 mm2 ... 0.75 mm2 |
| 2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve | 0.5 mm2 ... 2.5 mm2 |
| Length of peeling | 8 mm |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
Material data - contact
| Observation | According to WEEE/RoHS, without filaments according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Material contact | Cu alloy |
| Metal surface of the point of embornaje (top layer) | Tin (5 - 7 µm Sn) |
| Metal surface area of solder (upper layer) | Tin (5 - 7 µm Sn) |
Material data - housing
| Isolation | PA |
|---|---|
| Group insulating material | I |
| CTI according to IEC 60112 | Six hundred |
| Class of flammability according to UL 94 | V0 |
| Number of flammability of filaments GWFI according to en 60695-2-12 | Eight hundred fifty |
| Ignition temperature of filaments GWIT according to en 60695-2-13 | Seven hundred seventy five |
| Temperature test of the hardness for the balls according to en 60695-10-2 | 125 °C |
Product dimensions
| Outline dimensions | |
|---|---|
| Length [ l ] | 16 mm |
| Width [ w ] | 104,72 mm |
| Height [ h ] | 26,7 mm |
| Step | 9,52 mm |
| Height of building (height without the shank of soldering) | 21.5 mm |
| Length of pin [P] | 5,2 mm |
| Dimensions of pin | 0.9 x 0.9 mm |
| Average | For 95.2 mm |
Indications of packing
| Type of packaging | packaged in box |
|---|---|
| Packing unit | Fifty |
| Designation packing Units | Units |
Electrical testing
| Rated | 32 To |
|---|---|
| Voltage isolation design (III/2) | 1000 V |
| Transient voltage design (III/2) | 8 kV |
Lines of flight and air spaces
| Group insulating material | I |
|---|---|
| Voltage | 800 V |
| Voltage isolation design (III/3) | 690 V |
| Voltage isolation design (III/2) | 1000 V |
| Voltage isolation design (II/2) | 1000 V |
| Transient voltage design (III/3) | 8 kV |
| Transient voltage design (III/2) | 8 kV |
| Transient voltage design (II/2) | 6 kV |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
