> PHOENIX CONTACT >PCB Connectors (PCC)>MKDS 5/ 2-7,62 Z1L 1857785 PHOENIX CONTACT PCB terminal block, nominal current: 32 A, nom. voltage: 630 V, p..
Previous Product Next Product
MKDS 5/ 2-7,62 Z1L 1857785 PHOENIX CONTACT PCB terminal block, nominal current: 32 A, nom. voltage: 630 V, p.. View larger

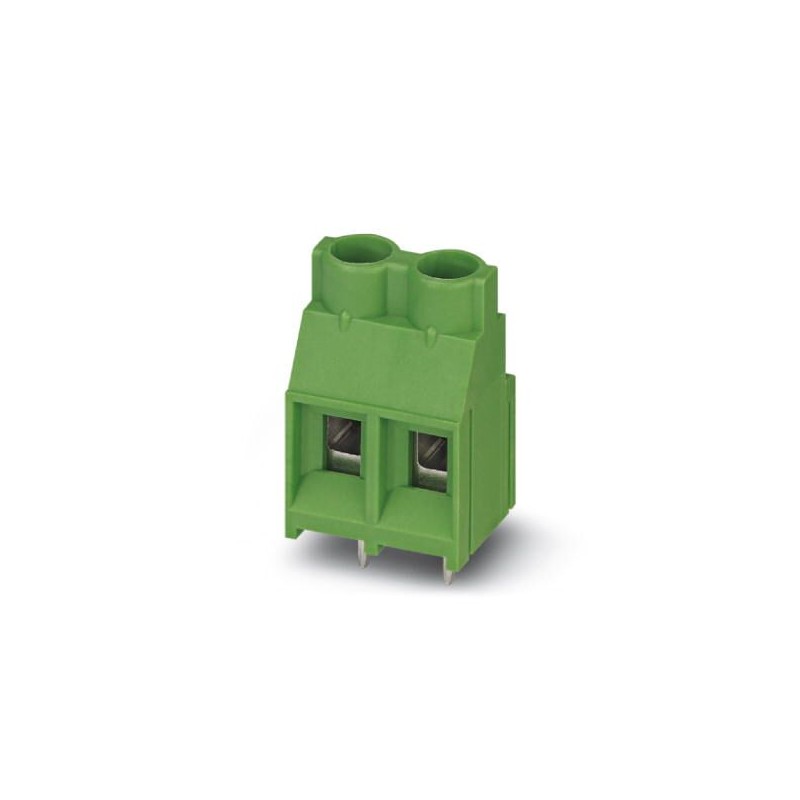

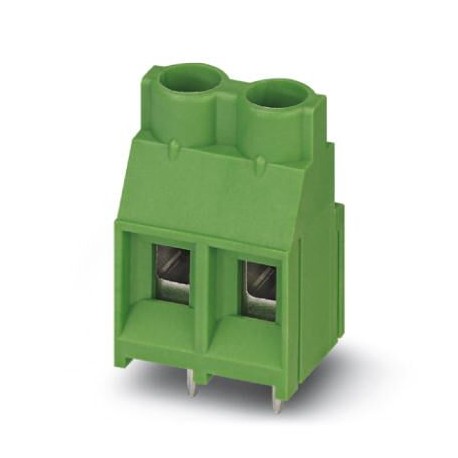

Images are for illustrative purposes only. Please refer to data sheet for details.

MKDS 5/ 2-7,62 Z1L 1857785 PHOENIX CONTACT PCB terminal block, nominal current: 32 A, nom. voltage: 630 V, p..

MKDS 5/ 2-7,62 Z1L

1857785

PHOENIX_CONTACT

50

PCB terminal block, nominal current: 32 A, nom. voltage: 630 V, pitch: 7.62 mm, number of positions: 2, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green

Printed circuit board terminal, rated current: 32 A, dimensioning voltage (III/2): 630 V, nominal section: 4 mm², Number of potentials: 2, Number of rows: 1, Number of poles per row: 2, item family: MKDS 5, pitch: 7.62 mm,connection type: Screw connection with traction capsule, mounting: Wave welding, Connection direction conductor/printed circuit board: 0°, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 5 mm,Packing type: boxed packaging

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total price: $87.45
Unit price: $1.75

Quantity Price
50+$1.75
100+$1.66
150+$1.51
200+$1.43
300+$1.34
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


PCB terminal block, nominal current: 32 A, nom. voltage: 630 V, pitch: 7.62 mm, number of positions: 2, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green

Key Commercial Data

Orderkey1857785
Packing unit1
GTIN4055626078830
Custom tariff number85369010

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

eCl@ss

eCl@ss 5.127261100
eCl@ss 6.027261100
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401

ETIM

ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643

UNSPSC

UNSPSC 13.239121432

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 15 Mbytes
