> PHOENIX CONTACT >PCB Connectors (PCC)>MKDS 3/ 5 OG BD:12-19 1873183 PHOENIX CONTACT PCB terminal block, nominal current: 24 A, nom. voltage: 400 V..
Previous Product Next Product

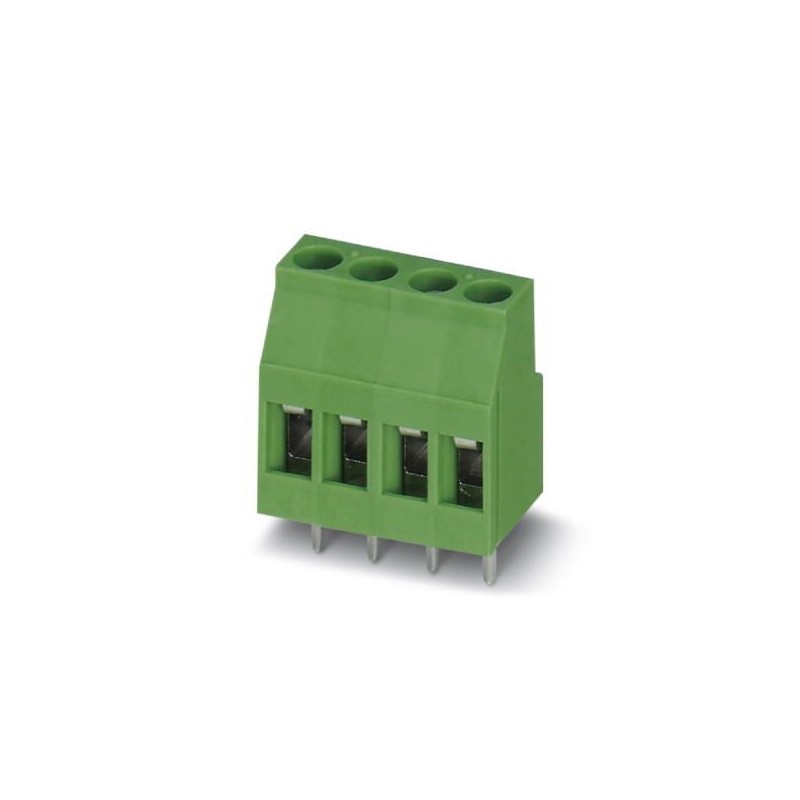

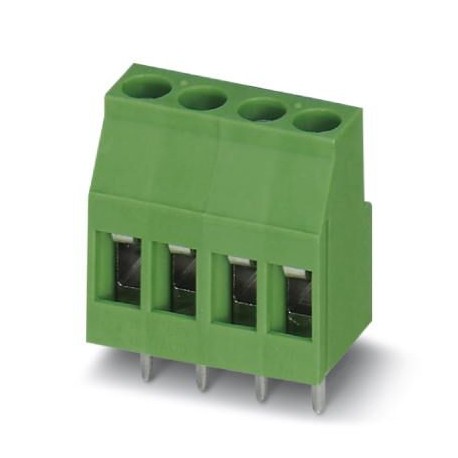

MKDS 3/ 5 OG BD:12-19 1873183 PHOENIX CONTACT PCB terminal block, nominal current: 24 A, nom. voltage: 400 V.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MKDS 3/ 5 OG BD:12-19 1873183 PHOENIX CONTACT PCB terminal block, nominal current: 24 A, nom. voltage: 400 V..

MKDS 3/ 5 OG BD:12-19

1873183

PHOENIX_CONTACT

50

PCB terminal block, nominal current: 24 A, nom. voltage: 400 V, pitch: 5 mm, number of positions: 5, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: orange. The article can be aligned to create different nos. of positions!

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², pitch: 5 mm, number of positions: 5, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: orange, Pin layout: Linear pinning, Solder pin [P]: 5 mm. The article can be aligned to create different nos. of positions!

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Key Commercial Data

Orderkey1873183
Packing unit1
GTIN4055626183732
Custom tariff number85369010

Drawings

Diagram

Diagram
Type: MKDS 3/2 and MKDS 3/3
Test following DIN EN 60512-5-2:2003-01
Reduction factor = 1
No. of positions: 5

Back to top

Item properties

Brief article descriptionPCB terminal block
Range of articlesMKDS 3
Pitch5 mm
Number of positions5
Connection methodScrew connection with tension sleeve
Mounting typeWave soldering
Pin layoutLinear pinning
Number of levels1
Number of connections5
Number of potentials5
Back to top

Electrical parameters

Nominal current24 A
Nom. voltage400 V
Rated voltage250 V
Rated voltage (III/2)400 V
Rated voltage (II/2)630 V
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Back to top

Connection capacity

Connection methodScrew connection with tension sleeve
pluggableYes
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG / kcmil24 ... 12
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 2.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 2.5 mm²
2 conductors with same cross section, solid0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.25 mm² ... 0.75 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 1.5 mm²
Stripping length8 mm
Torque0.5 Nm ... 0.6 Nm
Back to top

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)
Back to top

Material data - housing

Housing colororange (2003)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Back to top

Dimensions for the product

Dimensional drawing
CaptionSchematic representation – for additional information, see product range drawing in the Download Center
Pitch5 mm
Solder pin [P]5 mm
Pin spacing5 mm
Pin dimensions0.9 x 0.9 mm
Back to top

Dimensions for PCB design

Hole diameter1.3 mm
Pin spacing5 mm
Back to top

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.
Back to top

General product information

Type of noteNote on application
NoteFor safe conductor connection, always adhere to a defined tightening torque. Particularly in the case of PCB terminal blocks with two or three positions, the individual solder pin for each contact point cannot compensate for this. That is why the terminal blocks must be supported during conductor connection (held with one hand, support on the housing).
Back to top

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C ... 100 °C (Depending on the current carrying capacity/derating curve)
Back to top

Termination and connection method

Connection testIEC 60998-2-2:2002-12
Test for conductor damage and slackeningIEC 60998-2-1:2002-12
Test passed
Back to top

Pull-out test

Pull-out testIEC 60998-2-1:2002-12
Test passed
Conductor cross section / conductor type / tensile force0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
4 mm² / solid / > 60 N
2.5 mm² / flexible / > 50 N
Back to top

Electrical tests

Rated current24 A
Conductor cross section2.5 mm²
Rated voltage (III/2)400 V
Rated surge voltage (III/2)4 kV
Back to top

Air clearances and creepage distances

Clearances and creepage distancesIEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09
SpecificationIEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09
Minimum clearance - inhomogeneous field (III/3)3 mm
Minimum clearance - inhomogeneous field (III/2)3 mm
Minimum clearance - inhomogeneous field (II/2)3 mm
Minimum creepage distance value (III/3)3.2 mm
Minimum creepage distance value (III/2)3 mm
Minimum creepage distance value (II/2)3.2 mm
Note on connection cross sectionWith connected conductor 4 mm² (solid).
Back to top

Temperature-rise test

ResultTest passed
SpecificationIEC 60998-1:2002-12
Back to top

Vibration test

SpecificationIEC 60068-2-6:1995-03
ResultTest passed
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 - 60.1 Hz)
Acceleration5 g (60.1 - 150 Hz)
Test duration per axis2.5 h
Back to top

Resistance to ageing, humidity and penetration of solids

Dry heat168 h/100°C
Humid heat48 h/30 °C/92 %
Back to top

Standards and Regulations

Flammability rating according to UL 94V0
Back to top

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50 years
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 5.127261100
eCl@ss 6.027261100
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401
Back to top

ETIM

ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643
Back to top

UNSPSC

UNSPSC 13.239121432
UNSPSC 18.039121432
UNSPSC 19.039121432
UNSPSC 20.039121432
UNSPSC 21.039121432
Back to top

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 15 Mbytes
