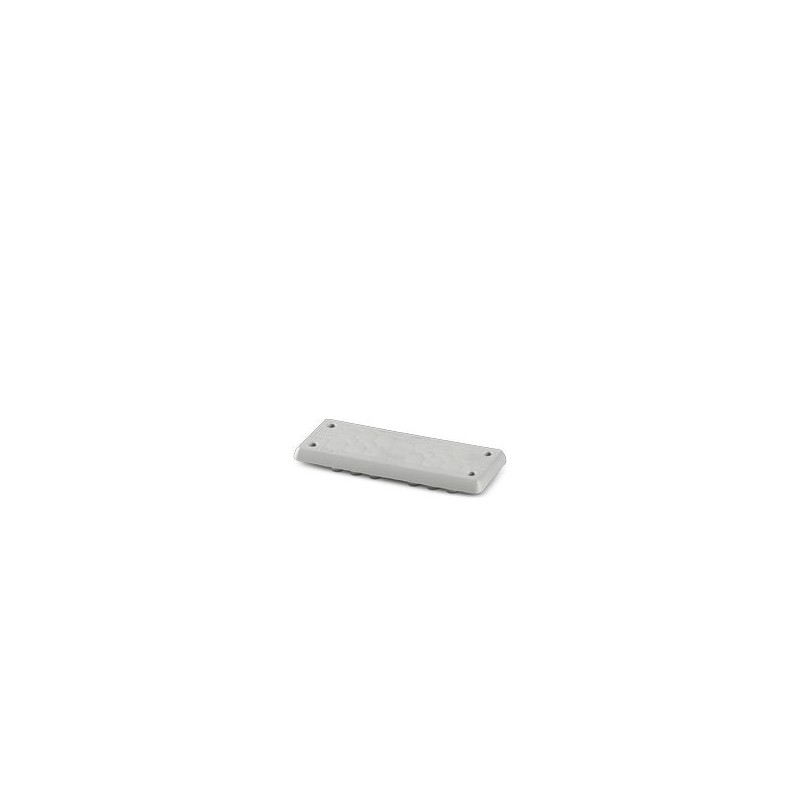

MH-B24-17-MULTI-66-PA-LG 1299363 PHOENIX CONTACT Plates for cable passage, outer diameter of the cable: 4x 3..
MH-B24-17-MULTI-66-PA-LG
1299363
PHOENIX_CONTACT
Plates for cable passage, outer diameter of the cable: 4x 3 mm ... 7mm, 12x 7mm... 12mm, 1x 10mm... 20 mm, material: TPE-SEBS (outer material), color: light gray, length: 154 mm, width: 56 mm, height: 19 mm
Cable feed-through plates
Cable feed-through plates, external cable diameter: 4x 3 mm ... 7 mm, 12x 7 mm ... 20 mm, 1x 10 mm ... 20 mm, material: TPE-SEBS (external material), color: light grey, length: 154 mm, width: 56 mm, height: 19 mm
Distribution boards > Gland plate for small distribution boards/switchgear cabinets
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | incl. mounting screws |
| Product type | Frame for cable sleeves |
| Tightening torque | 1.8 Nm |
| Width | 56 mm |
| Height | 19 mm |
| Length | 154 mm |
| Material | TPE-SEBS |
| Flammability rating according to UL 94 | V0 |
| External cable diameter () | 4x 3 mm ... 7 mm |
| 12x 7 mm ... 20 mm | |
| 1x 10 mm ... 20 mm |
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -40 °C ... 90 °C |
| Assembly instructions | M4 mounting screw, torque: 1.8 Nm, SW5 Allen key |
| The mounting screws included should be used for assembly. Assembly steps: 1) Fix Multigates with the mounting screws provided (observe torque) 2) Make a hole in the membrane (with a screwdriver) or cut off the tip of the cone 3) Guide the cable through the opening (from the outside). Withdraw the cable approximately 20 mm (to improve strain relief). |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 56 mm |
| Material (EF002169) | Other |
| Pre-stamping (EF001039) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN .pdf | 58 Mbytes |
|
