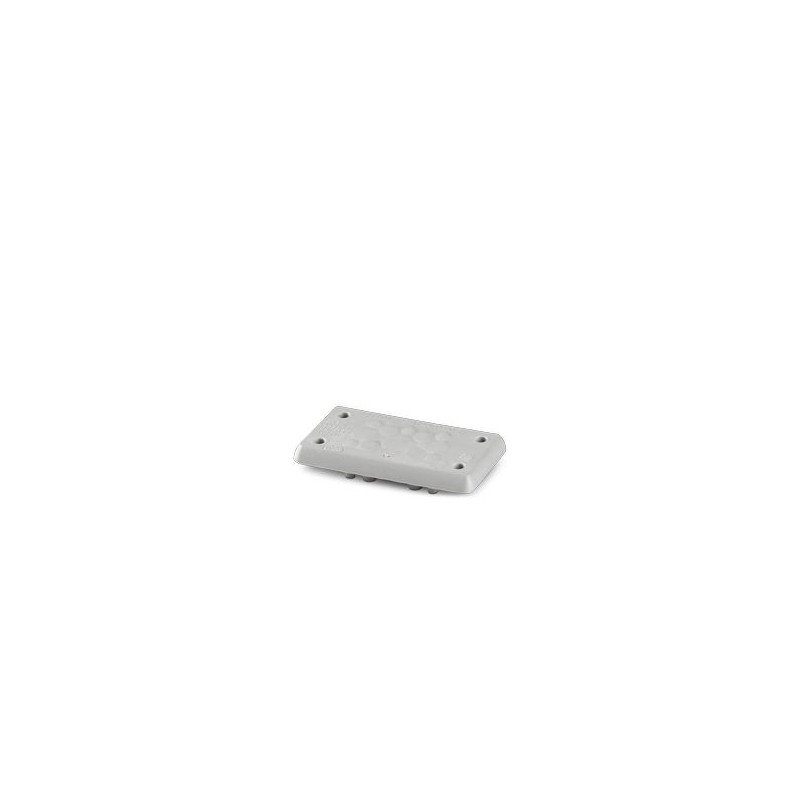

MH-B10-12-MULTI-66-PA-LG 1299362 PHOENIX CONTACT Plates for cable passage, outer diameter of the cable: 5x 3..
MH-B10-12-MULTI-66-PA-LG
1299362
PHOENIX_CONTACT
Plates for cable passage, outer diameter of the cable: 5x 3 mm ... 7mm, 4x 5mm... 10mm, 2x 7mm... 13mm, 1x 9mm... 16 mm, material: TPE-SEBS (outer material), color: light gray, length: 107 mm, width: 56 mm, height: 19 mm
Cable feed-through plates
Cable Feed-Through Plates, Cable Outer Diameter: 5x 3 mm ... 7mm, 4x 5mm... 10 mm, 2x 7 mm ... 13 mm, 1x 9 mm ... 16 mm, Material: TPE-SEBS (Outer Material), Color: Light Grey, Length: 107 mm, Width: 56 mm, Height: 19 mm
Distribution boards > Gland plate for small distribution boards/switchgear cabinets
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | incl. fixing screws |
| Product Type | Cable grommet frame |
| Tightening torque | 1.8 Nm |
| Width | 56 mm |
| Height | 19 mm |
| Longitude | 107 mm |
| Material | TPE-SEBS |
| Flammability class according to UL 94 | V0 |
| Cable Outer Diameter () | 5x 3 mm ... 7 mm |
| 4x 5 mm ... 10 mm | |
| 2x 7 mm ... 13 mm | |
| 1x 9 mm ... 16 mm |
| Environmental conditions | |
| Protection Index | IP66 |
| Ambient Temperature (Service) | -40 °C ... 90 °C |
| Installation instructions | Set screw M4, torque: 1.8 Nm, inner hexagon wrench width 5 |
| The fixing screws included in the packaging must be used for assembly. Assembly sequence: 1) Fix the Multigates with the attached set screws (note the pair) 2) Tap the hole in the membrane (with a screwdriver) or cut off the tip of the cone 3) Guide the wire (from the outside) through the hole. Remove the cable about 20 mm (to improve traction compensation) |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 56 mm |
| Material (EF002169) | Other |
| Pre-stamping (EF001039) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN .pdf | 58 Mbytes |
|
