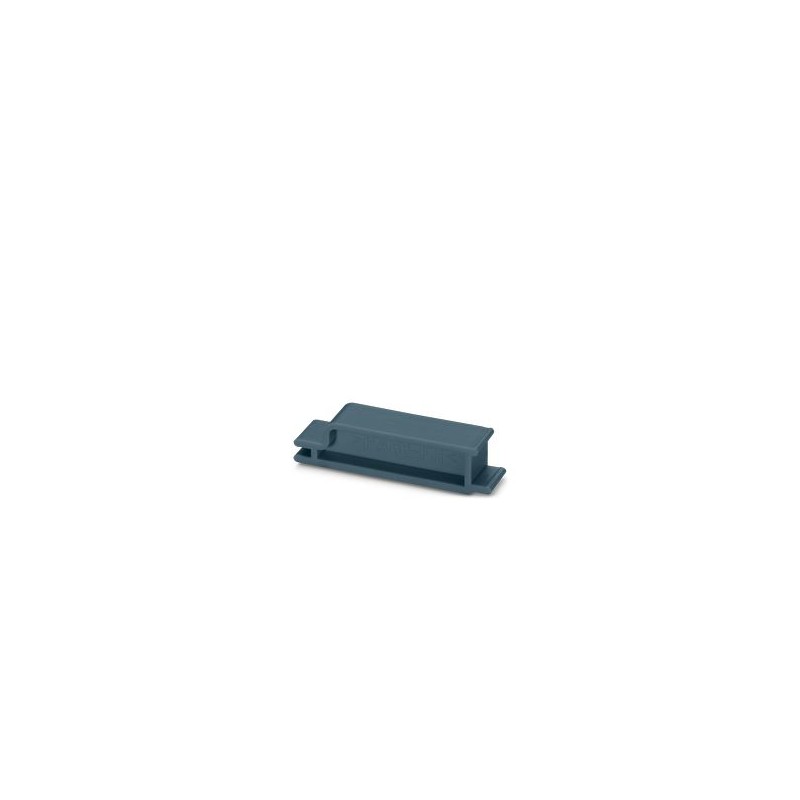

ME MAX TBUS BS BUGY 1522394 PHOENIX CONTACT DIN rail housing, TBUS notch blind plug, width: 5.8 mm, height: ..
ME MAX TBUS BS BUGY
1522394
PHOENIX_CONTACT
500
DIN rail housing, TBUS notch blind plug, width: 5.8 mm, height: 30 mm, depth: 6.6 mm, colour: bluish grey (similar RAL 7031)
Rail Box, TBUS Cutout Blank Plug
DIN rail housing, Filler plugs for TBUS recess, width: 5.8 mm, height: 30 mm, depth: 6.6 mm, color: blue grey (7031)
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | Refer to the data sheet for the range in the download area. |
| Product type | Filler plug |
| Product family | ME MAX TBUS BS |
| Type | Filler plugs for TBUS recess |
| Housing type | DIN rail housing |
| Ventilation openings present | no |
| Housing series | ME-MAX |
| Width | 5.8 mm |
| Height | 30 mm |
| Depth | 6.6 mm |
| Color | blue grey (7031) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Surface characteristics | untreated |
| Housing material | Polyamide |
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
| Mounting type | Latching |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Other |
| RAL-number (EF000116) | 7031 |
