ME MAX B-17,5 GN 2706991 PHOENIX CONTACT Filler plugs
ME MAX B-17,5 GN
2706991
PHOENIX_CONTACT
100
Filler plugs

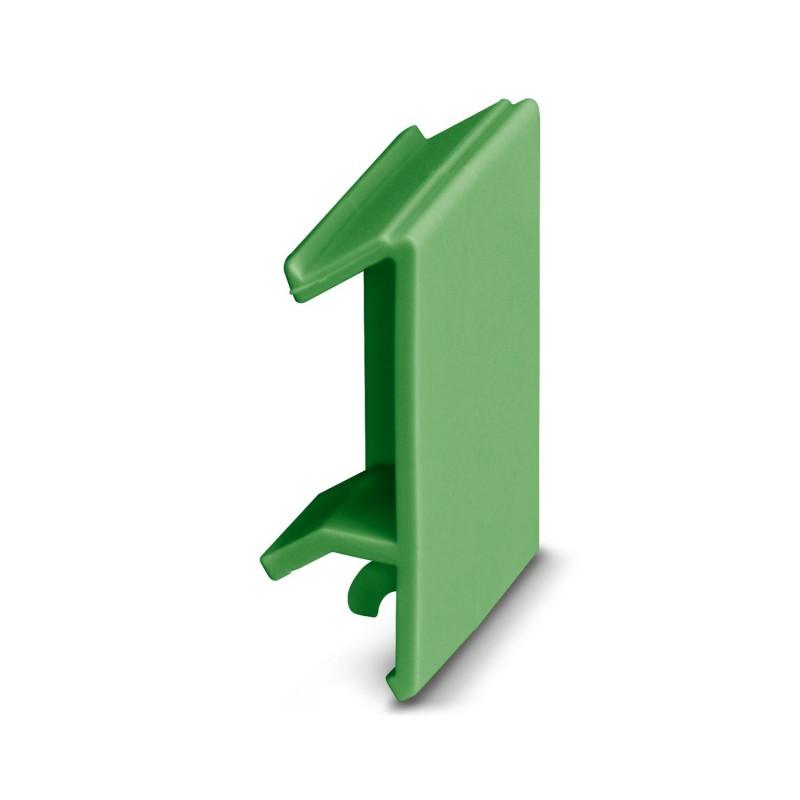

Rail box, Blank plug for non-equipped terminal points, width: 15 mm, height: 21.6 mm, depth: 8.1 mm, colour: green (6021)
DIN rail housing, Filler plug for unoccupied terminal points, width: 15 mm, height: 21.6 mm, depth: 8.1 mm, color: green (similar RAL 6021)
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Assembly note | Refer to the data sheet for the range in the download area. |
| Product type | Filler plug |
| Housing type | DIN rail housing |
| Housing series | ME-MAX |
| Product family | ME MAX 17,5.. |
| Type | Filler plug for unoccupied terminal points |
| Ventilation openings present | no |
| Data management status | |
| Article revision | 03 |
| Width | 15 mm |
| Height | 21.6 mm |
| Depth | 8.1 mm |
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Housing material | Polyamide |
| Surface characteristics | untreated |
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
| Mounting type | Latching |
| Outer packaging type | Resealable bag |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Green |
| RAL-number (EF000116) | 6021 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
