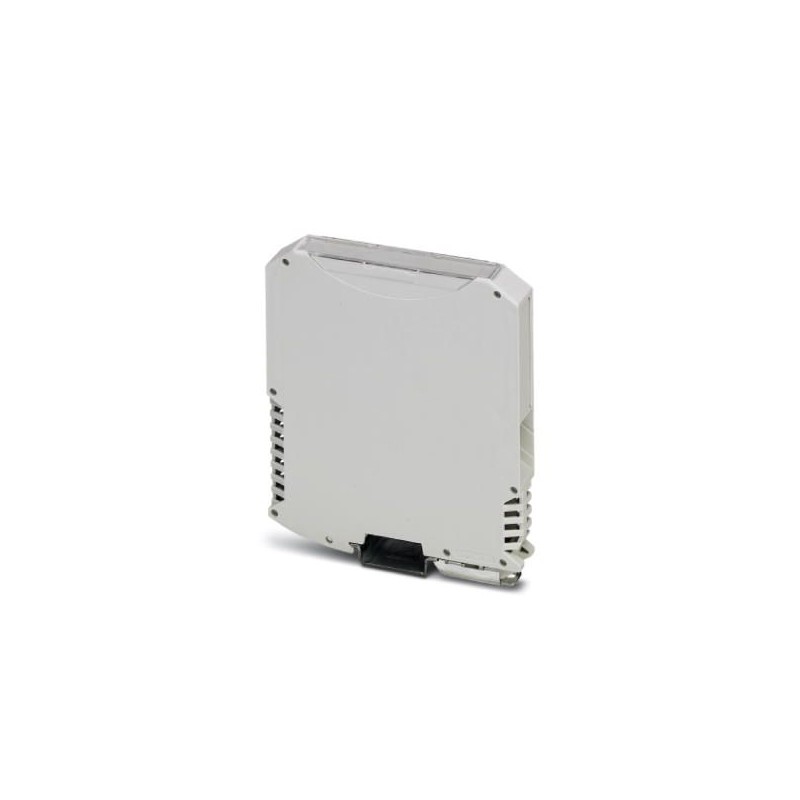

ME MAX 17,5 U-U1 KMGY VPE 1 2201314 PHOENIX CONTACT Electronic housing
ME MAX 17,5 U-U1 KMGY VPE 1
2201314
PHOENIX_CONTACT
Electronic housing
Rail housing, Full housing with metal pin, high design, with ventilation slits, width: 17.6 mm, height: 99 mm, depth: 113.65 mm, color: light gray (7035), cross bridge: Bus connector for rail (optional), number of poles cross connector: 5
Cabinet enclosures > Electronic enclosure
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2201314 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4046356766623 |
| Weight per Piece (excluding packing) | 64.000 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Item properties
| Brief article description | Electronic housing |
|---|---|
| Type | ME MAX 17,5 U-U1 KMGY VPE 1 |
| Order No. | 2201314 |
| Housing type | Complete housing |
| Type | Complete housing |
| Number of levels | 1 |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C (depending on power dissipation) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 17.6 mm |
| Height (EF000040) | 99 mm |
| Depth (EF000049) | 113.65 mm |
| Material (EF002169) | Other |
| Operating temperature (EF002393) | -40 °C |
| With integrated PCB-mounting connection system (EF003087) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting possible (EF003973) | No |
| With ventilation slots (EF007346) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
