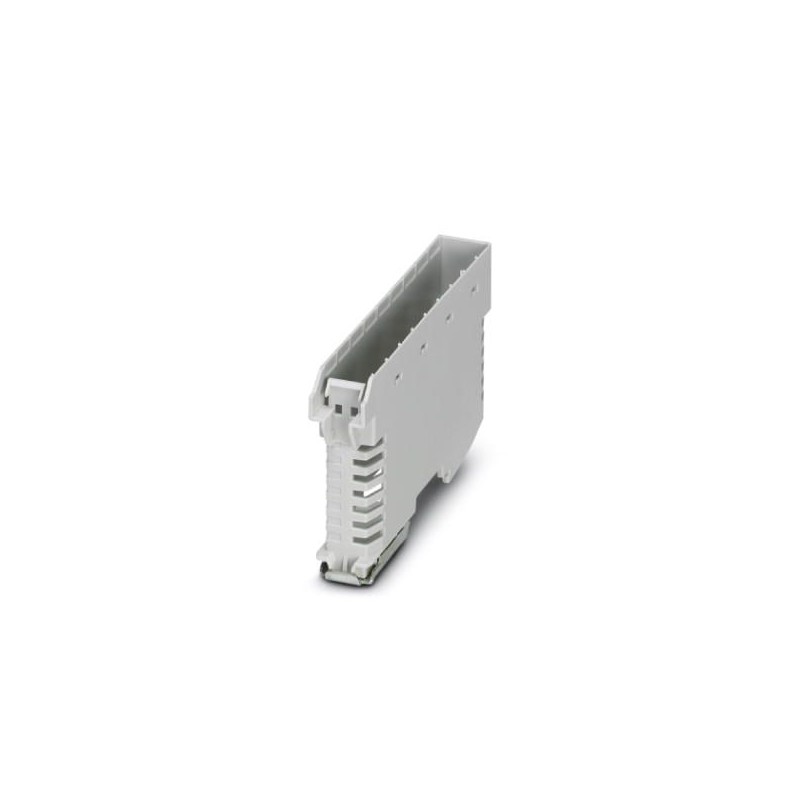

ME-IO 18,8 B/FE 9U TBUS 7035 2201809 PHOENIX CONTACT Mounting base housing
ME-IO 18,8 B/FE 9U TBUS 7035
2201809
PHOENIX_CONTACT
10
Mounting base housing
Rail housing, Lower housing with metal pin, with functional ground contact, with ventilation slits, width: 18.9 mm, height: 109.6 mm, depth: 64.3 mm, colour: light grey (7035), cross bridge: Rail bus connector (optional), number of poles cross connector: 5
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2201809 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356911702 |
| Weight per Piece (excluding packing) | 26.030 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Item properties
| Brief article description | Mounting base housing |
|---|---|
| Type | ME-IO 18,8 B/FE 9U TBUS 7035 |
| Order No. | 2201809 |
| Housing type | Component housing |
| Type | Lower part |
| Max. IP code to attain | IP20 |
| Mounting type | DIN rail mounting |
| Ventilation openings present | yes |
| Max. number of positions | 54 (pitch: 3.45 mm) |
| 32 (pitch: 5 mm) |
Dimensions
| Dimensional drawing | |
|---|---|
| Width [ w ] | 18.9 mm |
| Height [ h ] | 109.6 mm |
| Depth [ d ] | 64.3 mm |
| Depth from top edge of DIN rail [ d ] | 57.7 mm |
Material data
| Color (RAL) | light gray (7035) |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Housing material | Polyamide |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Relative humidity (storage/transport) | 80 % |
PCB data
| PCB thickness | 1.4 mm ... 1.8 mm |
|---|---|
| Mounting position | Vertical (horizontal DIN rail) |
| Type of PCB mount | Latching |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 10 |
| Denomination packing units | Pcs. |
| Outer packaging type | Carton |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Width (EF000008) | 18.9 mm |
| Height (EF000040) | 109.6 mm |
| Depth (EF000049) | 64.3 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
