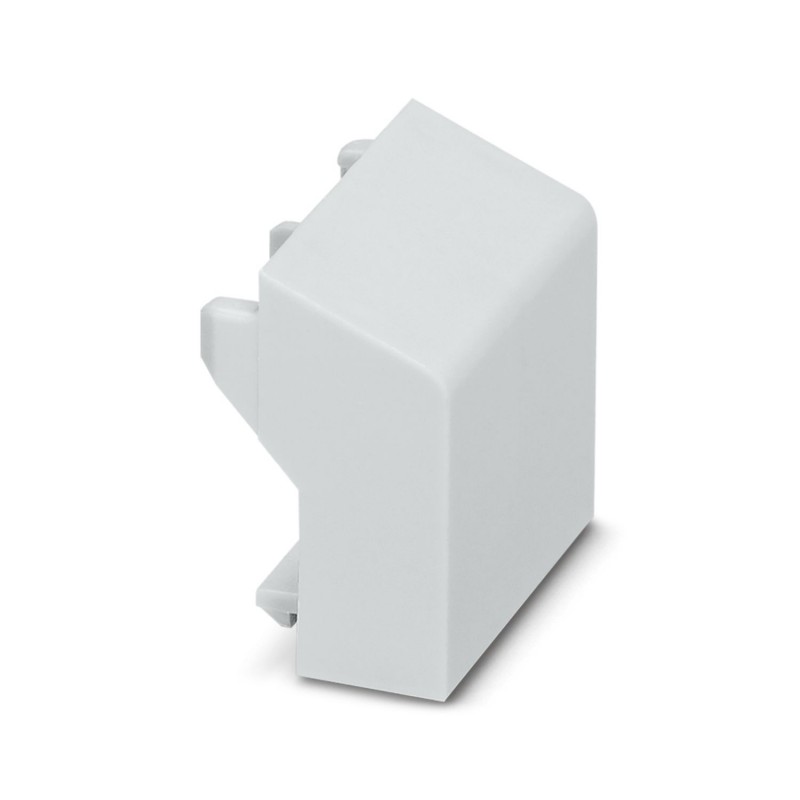

ME B-22,5 MSTBO WH 1015251 PHOENIX CONTACT Box lane, blind Plug for points embornaje not equipped
ME B-22,5 MSTBO WH
1015251
PHOENIX_CONTACT
500
Box lane, blind Plug for points embornaje not equipped
Rail housing, Blanking plug for non-equipped terminal points (MSTBO), width: 20 mm, height: 19.05 mm, depth: 12.3 mm, colour: white (9010)
Cabinet enclosures > Electronic enclosure
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Blind plug |
| Type of housing | DIN rail box |
| Housing Series | ME |
| Product Family | ME 22.5.. |
| Execution | Blanking plug for non-equipped terminal points (MSTBO) |
| Available ventilation hole | No |
| Data Maintenance Status | |
| Article Review | 00 |
| Width | 20 mm |
| Height | 19.05 mm |
| Depth | 12.3 mm |
| Color (Housing) | white (RAL 9010) |
| Flammability class according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Shell material | Polyamide |
| Surface Characteristics | Not Treated |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Acceleration | 2g (58.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test Directions | X, Y, and Z axes |
| Essay filam. incandescent | |
| Test Specification | DIN EN 60695-2-11 (VDE 0471-2-11):2014-11 |
| Temperature | 850 °C |
| Performance Time | 30 sec |
| Heat Resistance/Spherical Pressure Check | |
| Test Specification | DIN EN 60695-10-2 (VDE 0471-10-2):2016-01 |
| Temperature | 125 °C |
| Duration of the trial | 1 h |
| Strength | 20 N |
| Mechanical Strength/Descending Drum | |
| Test Specification | DIN EN 60998-1 (VDE 0613-1):2005-03 |
| Drop Height | 50 cm |
| frequency | 10 |
| Crash | |
| Test Specification | DIN EN 60068-2-27 (VDE 0468-2-27):2010-02 |
| Shock Type | Semi-sinusoid |
| Acceleration | 35% |
| Duration of the crash | 11 ms |
| Number of collisions per steering | 3 |
| Test Directions | X, Y, and Z axes (pos. and neg.) |
| Protection rating (IP code) | |
| Test Specification | DIN EN 60529 (VDE 0470-1):2014-09 |
| Environmental conditions | |
| Maximum achievable IP code | IP20 |
| Ambient Temperature (Service) | -40 °C ... 105 °C (depending on dissipation) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 55 °C |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
| Relative humidity of the air (storage/transport) | 80 % |
| Type of mounting | Blockade |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 9010 |
