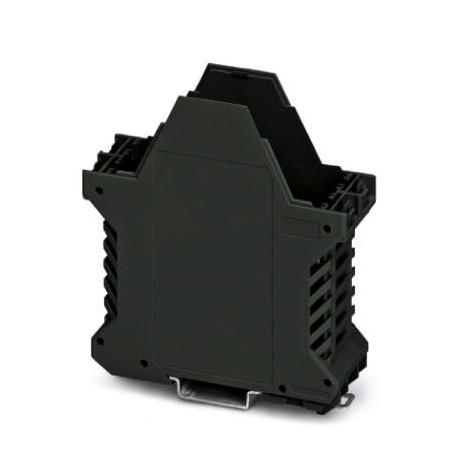

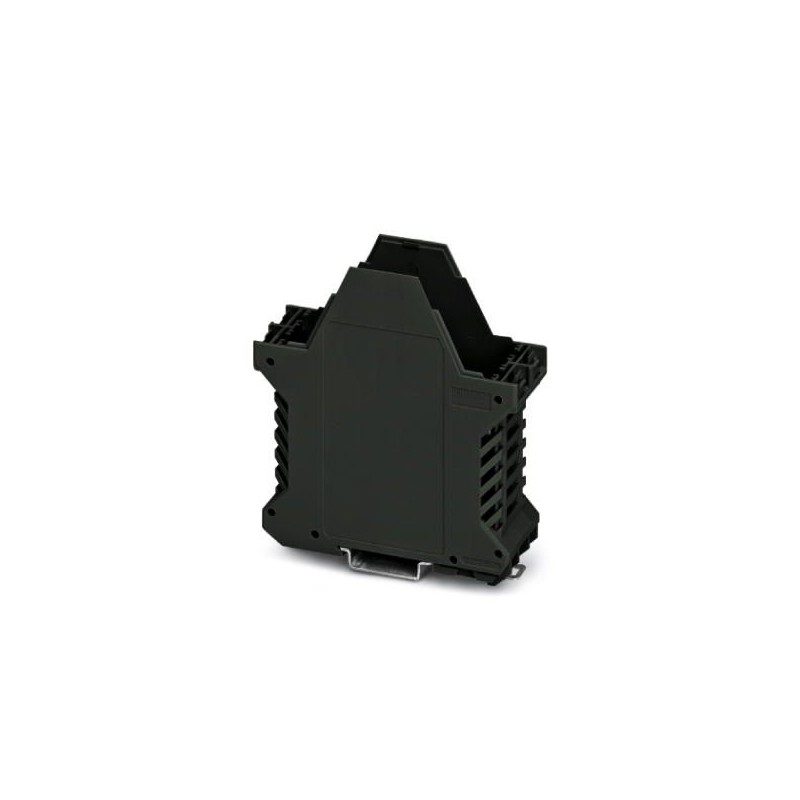

ME 35 UT/FE BK 2853653 PHOENIX CONTACT Mounting base housing
ME 35 UT/FE BK
2853653
PHOENIX_CONTACT
100
Mounting base housing
Rail box, Lower part of the housing with metal pin, with 2 FE contacts, high design, with ventilation slits, width: 35.2 mm, height: 99 mm, depth: 107.3 mm, color: black (9005), cross bridge: without bus connector, number of poles cross connector: not relevant
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2853653 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918448639 |
| Weight per Piece (excluding packing) | 50.290 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C (depending on power dissipation) |
Technical data
| Connection in acc. with standard | CUL |
|---|---|
| Nominal voltage UN | 300 V |
| Nominal current IN | 10 A |
| AWG/kcmil | 30-12 |
| Indicator1 | CUL1 |
| Number of positions | 24 |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Black |
| RAL-number (EF000116) | 9005 |
| Width (EF000008) | 35.2 mm |
| Height (EF000040) | 99 mm |
| Depth (EF000049) | 107.3 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
