ME 17,5 UTG RD 2709969 PHOENIX CONTACT Mounting base housing
ME 17,5 UTG RD
2709969
PHOENIX_CONTACT
10
Product on demand only, returns will not be accepted.

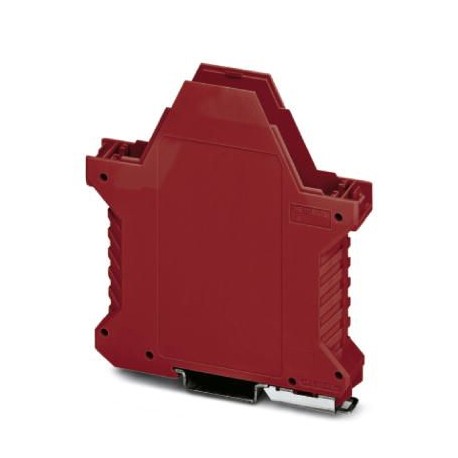

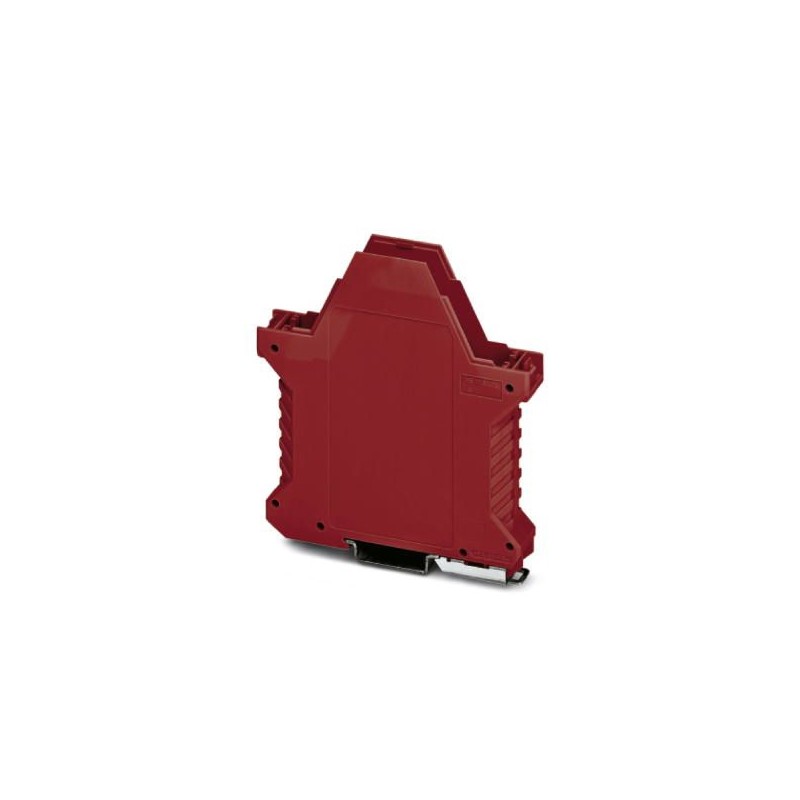

Mounting base housing
Rail housing, Lower housing with metal pin, high design, no ventilation slits, width: 17.6 mm, height: 99 mm, depth: 107.3 mm, color: red (3001), cross bridge: without bus connector, number of poles cross connector: not relevant
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2709969 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918888428 |
| Weight per Piece (excluding packing) | 41.710 g |
| Custom tariff number | 85472000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C (depending on power dissipation) |
Technical data
| Power dissipation without gap | 4.9 W |
|---|---|
| Power dissipation with 20 mm gap | 8.9 W |
| Number of positions | 12 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Red |
| RAL-number (EF000116) | 3001 |
| Width (EF000008) | 17.6 mm |
| Height (EF000040) | 99 mm |
| Depth (EF000049) | 107.3 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
