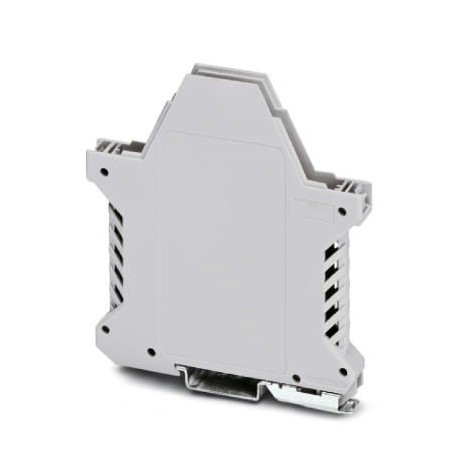

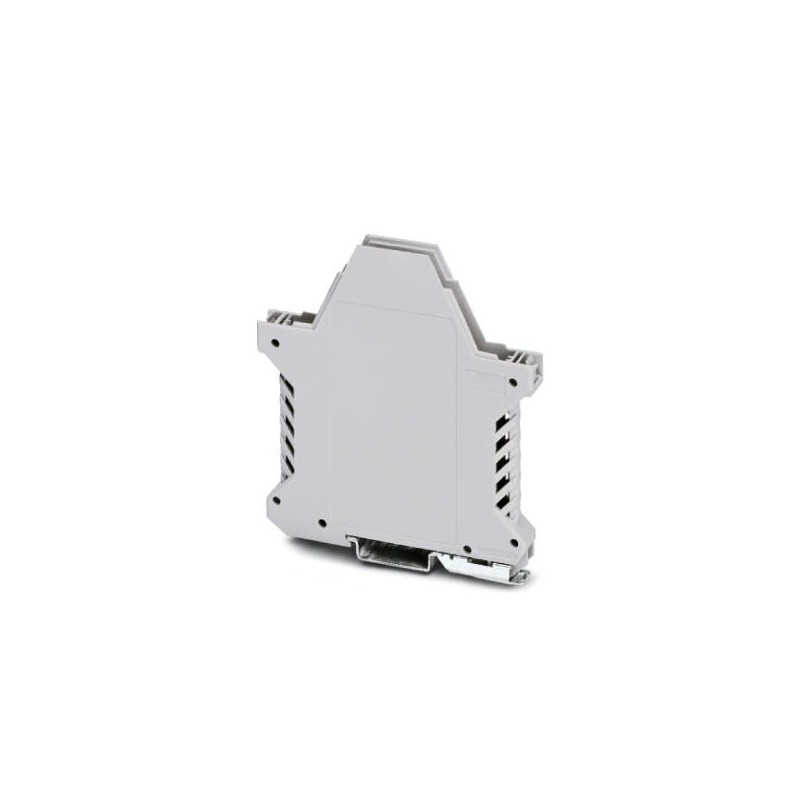

ME 12,5 UT KMGY 2869430 PHOENIX CONTACT Mounting base housing
ME 12,5 UT KMGY
2869430
PHOENIX_CONTACT
10
Mounting base housing
Rail box, Lower part of the housing with metal pin, high design, with ventilation slits, width: 12.6 mm, height: 99 mm, depth: 107.3 mm, color: luminous gray (7035), cross bridge: without bus connector, number of poles cross connector: not relevant
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2869430 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| GTIN | 4017918933357 |
| Weight per Piece (excluding packing) | 30.890 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Item properties
| Brief article description | Mounting base housing |
|---|---|
| Type | ME 12,5 UT KMGY |
| Order No. | 2869430 |
| Housing type | DIN rail housing |
| Type | Lower part |
| Max. IP code to attain | IP20 |
| Mounting type | DIN rail mounting |
| Ventilation openings present | yes |
Dimensions
| Width [ w ] | 12.6 mm |
|---|---|
| Height [ h ] | 99 mm |
| Depth [ d ] | 107.3 mm |
| Depth from top edge of DIN rail [ d ] | 99.8 mm |
Material data
| Color (RAL) | light gray (7035) |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Housing material | Polyamide |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Relative humidity (storage/transport) | 80 % |
PCB data
| Number of PCB holders | 1 |
|---|---|
| PCB thickness | 1.4 mm ... 1.8 mm |
| Mounting position | Vertical (horizontal DIN rail) |
| Type of PCB mount | Latching |
Power dissipation, single housing at 20 °C
| Ambient temperature | 20 °C |
|---|---|
| Reduction factor | 1 |
| Mounting position | vertical |
| Power dissipation | 4.3 W |
Power dissipation, single housing at 30 °C
| Ambient temperature | 30 °C |
|---|---|
| Reduction factor | 0.91 |
| Mounting position | vertical |
| Power dissipation | 3.9 W |
Power dissipation, single housing at 40 °C
| Ambient temperature | 40 °C |
|---|---|
| Reduction factor | 0.81 |
| Mounting position | vertical |
| Power dissipation | 3.5 W |
Power dissipation, single housing at 50 °C
| Ambient temperature | 50 °C |
|---|---|
| Reduction factor | 0.7 |
| Mounting position | vertical |
| Power dissipation | 3 W |
Power dissipation, single housing at 60 °C
| Ambient temperature | 60 °C |
|---|---|
| Reduction factor | 0.57 |
| Mounting position | vertical |
| Power dissipation | 2.45 W |
Mechanical strength/tumbling barrel
| Specification | IEC 60998-1:2002-12 |
|---|---|
| Height of fall | 50 cm |
| Number of drop cycles | 10 |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
|---|---|
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 - 58.1 Hz) |
| Acceleration | 2g (58.1 - 150 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
Shock
| Specification | IEC 60068-2-27:2008-02 |
|---|---|
| Pulse shape | Half-sine |
| Acceleration | 15g |
| Shock duration | 11 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
Degrees of protection provided by housings (IP code)
| Specification | IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 |
|---|---|
| Result, degree of protection, IP code | IP20 |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 10 |
| Denomination packing units | Pcs. |
| Outer packaging type | Carton |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Width (EF000008) | 12.6 mm |
| Height (EF000040) | 99 mm |
| Depth (EF000049) | 107.3 mm |
